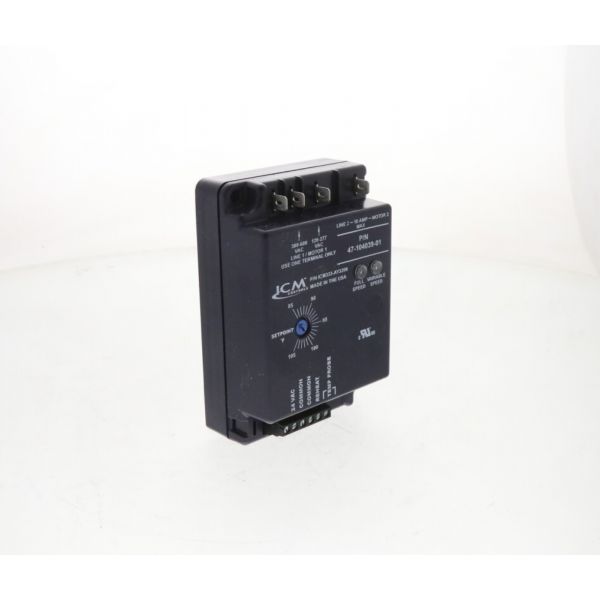

Rheem-Ruud 47-104039-01 Outdoor Fan Motor Controller

Rating:
5 5 7
7  Reviews Add Your Review
Special Price $183.08 Regular Price $210.54
In stock
SKU
47-104039-01
The Rheem-Ruud 47-104039-01 Outdoor Fan Motor Controller is an essentialpart that controls and enhances the functionality of the outdoor fan motors of HVAC systems. This controller can operate in temperature conditions ranging from -40ºF up to 176ºF and therefore it is versatile for many conditions. Having a control voltage of 18-30V AC and input voltage 120V, it offers precise control of fan motor operations thereby maintaining constant and efficient cooling or heating. It is mainly used in outdoor HVAC systems for controlling the fans and the operations of the same, hence ensuring proper flow of air and maintaining appropriate temperatures.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/4/7/47-104039-01-rheem-ruud_partshnc.jpg

Specifications

  • Temperature Range: -40ºF to 176ºF
  • Type: Outdoor Fan Motor Controller
  • Voltage: 120V
  • Control Voltage (AC): 18-30
  • Frequency: 50/60Hz
  • Length: 4 3/4"
  • Width: 3 1/4"
  • Height: 1 3/4"
  • Weight: 0.62 Lbs

Outdoor fan assemblies use control components to manage the operation of connected fan motors. The Rheem-Ruud 47-104039-01 Outdoor Fan Motor Controller is the control component associated with the outdoor fan motor. Its primary role is to provide the control function within the fan assembly rather than produce the mechanical rotation.

Outdoor Fan Motor Control Function:
The controller manages the control side of the outdoor fan motor arrangement, while the motor supplies the mechanical rotation used to drive the fan. This separates the electronic control role from the mechanical drive role within the assembly.

Replacement Guidelines:
Replacement may be appropriate when the existing Rheem-Ruud 47-104039-01 no longer provides the required control function or shows visible physical damage that affects operation. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • Visible physical damage is present on the controller.
  • The outdoor fan does not respond as expected.
  • Fan response becomes inconsistent during operation.

Equipment Compatibility:
The Rheem-Ruud 47-104039-01 Motor Controller is compatible with the verified models RLNLG300DR075, RLNLG180DS040, and RLNLG180DL000. Before purchasing, confirm the existing part number, applicable model, outdoor fan motor control configuration, and other equipment requirements.

Technical Specifications:
Brand: Rheem-Ruud
Part Number: 47-104039-01
Product Type: Outdoor Fan Motor Controller

Reviews 7
Write Your Own Review
You're reviewing:Rheem-Ruud 47-104039-01 Outdoor Fan Motor Controller
Your Rating
Product Questions (12)
Customer Questions
What maintenance is required for the Rheem-Ruud 47-104039-01 Fan Motor Controller?

Regularly inspect the controller for dust, corrosion, or loose connections. Clean with a dry cloth and ensure proper ventilation around the unit. Always disconnect power before servicing to prevent electrical hazards. Routine maintenance helps maintain reliable fan operation and prevents overheating.

What are common issues with the Rheem-Ruud 47-104039-01 Fan Motor Controller?

  • Controller failing to start the fan.
  • Intermittent fan operation.
  • Overheating or tripping breakers.
  • Loose or corroded electrical connections.

What role does the 47-104039-01 play in outdoor fan operation?

The 47-104039-01 supports condenser operation by coordinating the electrical response and cycling performance of the associated outdoor fan motor.

How does the controller interact with the outdoor fan motor?

The outdoor fan motor receives the controller’s regulated electrical response, allowing its operating state to correspond with system requirements.

What conditions influence how the controller coordinates fan operation?

Fan control is coordinated according to changing condenser-related thermal conditions within the cooling system’s operating cycle.

How do the controller’s electrical characteristics affect fan operation?

The controller uses its defined electrical characteristics to establish the appropriate operating response for the connected outdoor fan motor.

Why does fan cycling change as condenser conditions change?

Changing condenser conditions can require transitions between designated fan operating states during the cooling system’s operation.

What type of component is the Rheem-Ruud 47-104039-01?

The Rheem-Ruud 47-104039-01 is an Outdoor Fan Motor Controller that provides the control function associated with a connected outdoor fan motor.

How is the 47-104039-01 different from an outdoor fan motor?

The 47-104039-01 performs the control function, while the connected fan motor provides the mechanical rotation needed to drive the fan.

Which models are compatible with the Rheem-Ruud 47-104039-01?

The verified compatible models are RLNLG300DR075, RLNLG180DS040, and RLNLG180DL000.

Why is the exact 47-104039-01 part number important when selecting this controller?

The exact part number identifies the specific outdoor fan motor controller and helps distinguish it from other control components when matching the existing equipment.

How can the correct 47-104039-01 be identified?

Match the existing part number and applicable equipment model with the documented outdoor fan motor controller requirements before purchasing.

Installation Steps

Step1: Turn off power to the HVAC system to ensure safety.

Step2: Remove the unit access panel to locate the existing fan motor controller.

Step3: Disconnect all wiring from the old controller, noting connections for reference.

Step4: Unscrew and remove the old controller from its mounting.

Step5: Install the new controller in the same position and secure with screws.

Step6: Reconnect all wiring according to your notes.

Step7: Replace the access panel and restore power.

Step8: Test the fan operation to ensure proper function.
