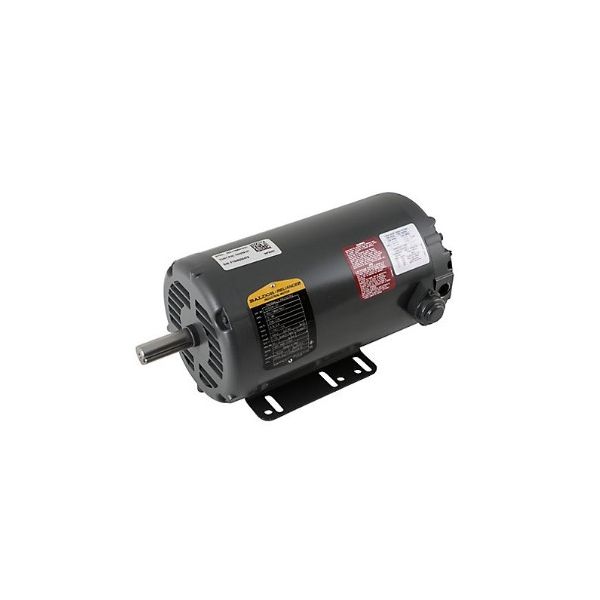

Lennox 86W89 Blower Motor 3-Phase 2/0.89HP 2-Speed 460V
Special Price $1,009.90 Regular Price $1,120.99
In stock
SKU
86W89
The Lennox 86W89 Blower Motor is a high-amperage motor used for circulation in commercial and industrial Lennox HVAC systems. This 3 phase motor has 2-speeds and bi-directional rotation to give you full control over the flow of air. It effectively blows air at up to 1740 RPM at high speed and 1160 RPM at low speed. The motor has the advantage of being reversible to allow further control of the direction of airflow in your HVAC system. This 2 HP motor has 3-phase electrical configuration (460V, 60Hz) is suitable for most commercial electrical systems.
Manufacturer:
Specifications
- Voltage: 460V
- Revolutions Per Minute: 1740/1160 RPM
- Horsepower: 2/0.89 HP
- Measure: Unit
- Shaft Length: 2.25 Inch
- Motor Type: 3 Phase
- Number of Speeds: 2 Speed
- Frame Size: 56HZ
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Rigid
- Motor Rotation: Reversible
- Bearing Type: Ball
- Weight: 48.68lbs
- Frequency: 60Hz
