Lennox 25W17 Fan Motor 1-Phase 1/6HP 1075RPM 460V CCWLE

Special Price $353.58 Regular Price $392.48
In stock
SKU
25W17

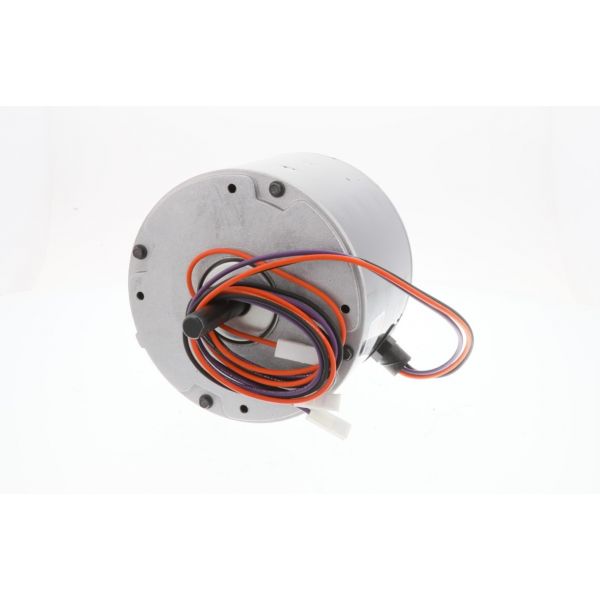

The Lennox 25W17 is a fan motor that is used to replace a Lennox HVAC system. It is a PSC type motor with vertical mounting, stud mount facility. The motor is a single phase with a frequency of 60Hz and consumes 0.55 amps at 460V. The designed 1/6 horsepower and a working speed of 1075 RPM enables proper circulation of air in the HVAC system. This would facilitate effective air circulation hence the need for continence temperature regulation in your home. Other requirements are 5.6 Inches diameter, frame 48, sleeve bearing, 5 MFD capacitance. It rotates in CCWLE direction. When purchasing a new Lennox fan motor, make sure that the motor is correct for your model of HVAC system.
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/5/25w17-lennox_partshnc.jpg

Specifications

  • Weight:9.57lbs
  • Measure:Unit
  • Horsepower: 1/6
  • Phase: 1
  • RPM: 1075
  • Voltage: 460V
  • Type: PSC
  • Frequency: 60 Hz
  • Amperage: 0.55A
  • Diameter: 5.6 Inch
  • Speed: 1
  • Frame Size: 48
  • Mounting Position: Vertical
  • Mounting Type: Stud
  • Size: 1/2 x 2 Inch
  • Capacitor: 5 MFD
  • Rotation: CCWLE
  • Bearing Type: Sleeve
Manufacturer Name: Lennox
Product Number: 25W17
OEM Part Number: 25W17
Product Description: 460V1phccwle 1/6Hp 1075Rpm Mtr
Weight:9.57lbs/4340.88g
