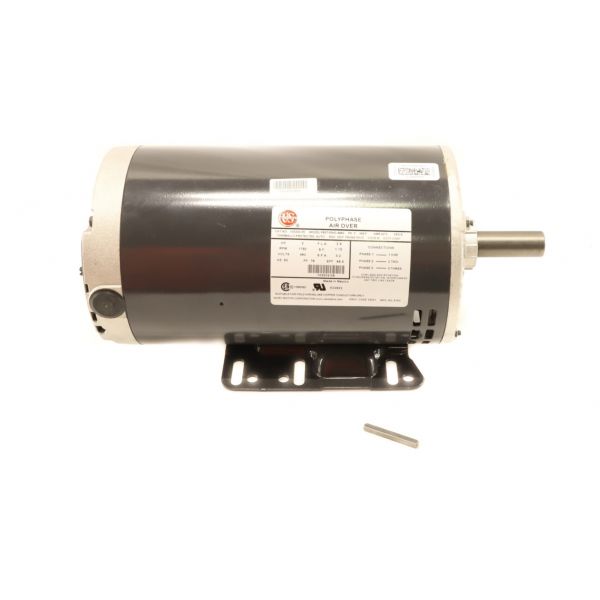

Lennox 80W77 Blower Motor 3-Phase 2HP 1750RPM 460V
Special Price $1,093.97 Regular Price $1,214.30
In stock
SKU
80W77
The Lennox 80W77 Blower Motor is a high amperage replacement blower designed for use on commercial and industrial HVAC applications with Lennox equipment. This 2 HP, 3-phase motor provides effective airflow circulation in large structures. It operates at a single speed but effectively moves air at 1750 RPM through the ductwork of your HVAC system. This strong and consistent airflow makes it possible to distribute the conditioned air all over your large commercial or industrial building. Built for use with robust 3-phase 460V electrical supply systems and designed to be mounted horizontally for easier installation, and is built to manage complex airflow challenges in large structures.
Manufacturer:
Specifications
- Voltage: 460V
- Horsepower: 2 HP
- Weight: 43.2lbs
- Measure: Unit
- Phase: 3 Phase
- Shaft Length: 2.25 Inch
- Speed: 1
- Frame Size: 56HZ
- Motor Mounting Position: Horizontal
- Bearing Type: Ball
- Revolutions Per Minute: 1750 RPM
- Frequency: 60Hz
