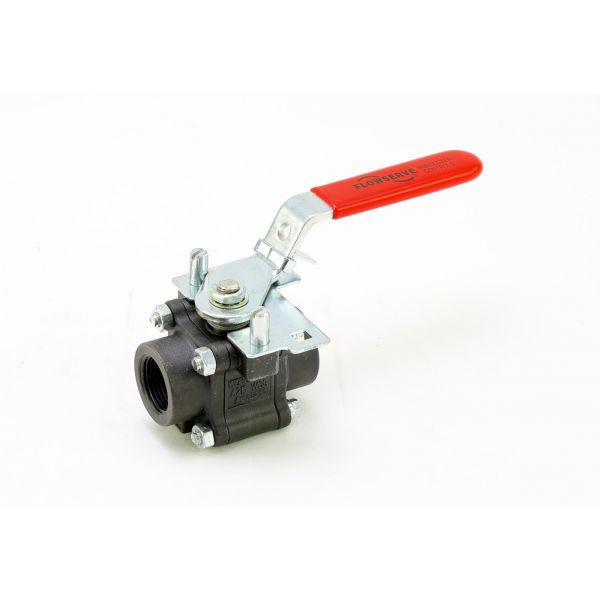

3/4 Inch 1480# 3Pc Cs Thread Valve For Flowserve-Worcester Valve -Part# 4446Pmse.075

Special Price $229.77 Regular Price $255.04
Out of stock
SKU
4446PMSE.075

The Thread Valve from Flowserve-Worcester Valve, 4446PMSE.075, is a high-quality, precision-engineered component that efficiently regulates fluid flow. This 3/4-inch valve is specifically designed for industrial usage, with a pressure rating of 1480 pounds per square inch, providing reliable operation in demanding situations. Its three-piece carbon steel structure guarantees durability and reliability, even in hostile conditions. This valve is a critical component of HVAC systems where precise flow control is required for effective operation. With its dependable performance and durable construction, the thread valve improves the safety, operational efficiency, and durability of HVAC equipment, making it a popular option among industry professionals.

https://www.partshnc.com/media/catalog/product/4/4/4446pmse-075.jpg

PRODUCT OVERVIEW:
A high-pressure ball valve provides positive shut-off and directional control within demanding industrial fluid loops and commercial piping networks. Flowserve-Worcester Valve 4446PMSE.075 3/4" Thread Valve 1480PSI 3pc CS OEM is a heavy-duty process control valve engineered for high-pressure fluid management. Installed directly within threaded piping runs, it features a 3/4-inch NPT connection interface, a 1,480 PSI pressure rating, and a split 3-piece carbon steel body configuration. Proper valve operation ensures tight fluid shut-off, minimizes pressure drop across line segments, and withstands harsh industrial operating conditions.

THREE-PIECE BODY CONSTRUCTION AND SERVICING DYNAMICS:
The valve operates using an internal quarter-turn ball and stem assembly housed within a 3-piece split-body layout. The central body section contains the ball, stem, and seating seals, clamped securely between two threaded end connectors by heavy-duty body bolts. This 3-piece architecture allows maintenance personnel to swing out the center body section for seal replacement and seat inspection without removing the threaded end connections from system piping.

HIGH-PRESSURE LINE INTEGRATION AND SEATING DYNAMICS:
The valve is equipped with 3/4-inch threaded NPT connection ports, allowing the carbon steel body to integrate directly into matching 3/4" high-pressure piping lines. When turned to the fully seated or closed position, the internal valve disc forms a bubble-tight seal against the valve seat to stop fluid pass-through entirely. This complete shutoff enables technicians to isolate specific lines or equipment sections for filter changes and component replacements without discharging the surrounding industrial fluid loop.

REPLACEMENT GUIDELINES:
Replace the thread valve when inspection reveals seat erosion under high differential pressure, stem packing leakage, severe external rust on carbon steel body bolts, or fluid bypass when fully closed. Because replacing high-pressure process valves involves working with pressurized gas or fluid lines, work must be performed by a qualified mechanical technician or pipefitter. The technician must safely isolate line pressure, drain system media, apply high-pressure thread sealant to NPT joints, torque body bolts to specification, and conduct hydrostatic or pneumatic leak checks before returning equipment to service. Always verify technical documentation to confirm component fitment before installation.

COMMON FAILURE SYMPTOMS:

  • External fluid leakage around the valve body joint seams or threaded NPT end connections.
  • Visible surface corrosion, cracking, or physical body distortion on the carbon steel casing.
  • Difficulty maintaining required flow-control performance or constant fluid bypass past the seat when closed.
  • Internal binding, stem thread galling, excessive resistance, or inconsistent valve handle operation.

EQUIPMENT COMPATIBILITY:
Flowserve-Worcester Valve 4446PMSE.075 Thread Valve is intended for select industrial processing, hydraulic, and commercial piping systems requiring a 3/4" NPT 1,480 PSI ball valve. Confirm that your line specification calls for a 3/4-inch connection size, 1,480 PSI pressure capability, 3-piece swing-out design, and carbon steel metallurgy. Cross-reference original equipment submittals and piping schematics to verify fitment prior to purchasing.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Flowserve-Worcester
Part Number: 4446PMSE.075
Product Type: High-Pressure Threaded Ball Valve
Pressure & Structural Specifications:
Pressure Rating: 1,480 PSI Maximum Working Pressure
Body Construction: 3-Piece Split Body (Swing-Out Design)
Body Material: Carbon Steel (CS)
Connection & Operational Specifications:
Connection Size: 3/4 Inch NPT Threaded Connections
Actuation Type: Manual Lever Quarter-Turn
Valve Function: High-Pressure Line Isolation and Process Control

Write Your Own Review
You're reviewing:3/4 Inch 1480# 3Pc Cs Thread Valve For Flowserve-Worcester Valve -Part# 4446Pmse.075
Your Rating
Customer Questions
What maintenance is required for the Flowserve-Worcester 4446PMSE.075 Thread Valve?

Inspect the valve body and threads regularly for corrosion, wear, or leaks. Clean buildup from sealing surfaces to ensure tight shutoff performance. Verify smooth operation by cycling the valve periodically.

What are common issues with the Flowserve-Worcester 4446PMSE.075 Thread Valve?

  • Thread leaks due to worn sealing surfaces.
  • Stiff operation from internal buildup or debris.
  • Corrosion on valve body or connections.
  • Incomplete shutoff from damaged seals.
  • Reduced flow control accuracy.

What is the advantage of a 3-piece valve construction in industrial piping systems?

A 3-piece valve construction allows technicians to unbolt and swing out the central body section for internal seal maintenance and seat replacement without disconnecting the pipe ends.

What pressure rating is specified for the Flowserve-Worcester 4446PMSE.075 valve?

This valve model features a high-pressure rating of 1,480 PSI, making it suitable for demanding commercial and industrial fluid applications.

Does replacing the Flowserve-Worcester 4446PMSE.075 valve require a qualified technician?

Yes, replacement should be performed by a qualified mechanical technician or pipefitter to safely depressurize high-pressure lines, execute leak-tight thread seals, and perform pressure testing.

What material is used for the valve body construction in part number 4446PMSE.075?

The valve assembly is constructed from heavy-duty carbon steel to provide high structural integrity and mechanical strength under pressure.

How can replacement compatibility be verified for the Flowserve-Worcester 4446PMSE.075 valve?

Cross-reference the manufacturer brand (Flowserve-Worcester), part number (4446PMSE.075), 3/4" NPT connection size, 1,480 PSI rating, 3-piece style, and carbon steel material directly against your system engineering manual before purchasing.

Installation Steps

Step 1: Shut off system pressure, isolate pipeline, ensure it is fully depressurized and drained.

Step 2: Apply thread sealant or tape to male threads and align valve flow arrow with pipeline direction.

Step 3: Hand-thread valve into pipe, then tighten using a wrench; avoid over-tightening to prevent thread damage.

Step 4: Verify alignment, then gradually restore pressure and check for leaks at joints.
