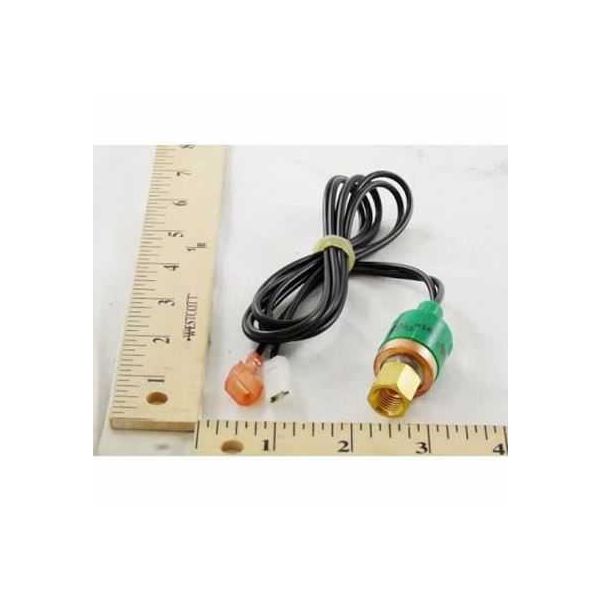

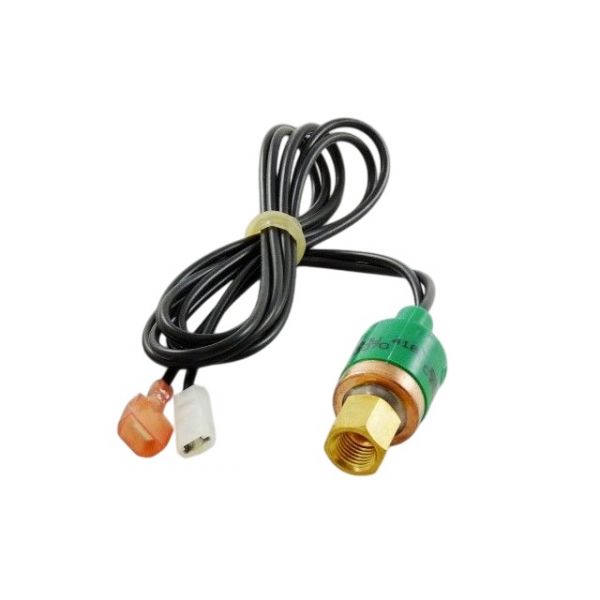

Trane SWT2475 High Pressure Switch Open 425 PSI Close 360 PSI
Special Price $40.66 Regular Price $52.85
In stock
SKU
SWT2475
The Trane SWT2475 is a high pressure switch intended for application in refrigeration and air conditioning systems. This switch opens at 425 PSI and closes at 360 PSI to guarantee the better performance and security. It has a high-quality stainless steel disc and an IP65 enclosure, and SPST contact configuration to ensure the product’s durability and reliability. The switch is relatively small and has a size of 9” length and 1.95” height and is installed directly on the system. It is used within a pressure range of -0.5 bar to 45 bar and has a burst pressure of 300 bar. Approved by UL, CE, TUV, and VDE, it can handle 250 VAC and has an 8A current limit.
Manufacturer:
Specifications
- Length: 9"
- Height: 1.95"
- Contact Configuration: SPST
- Enclosure Type: IP65
- For Use With: Refrigeration and Air Conditioning Systems
- Material: Stainless Steel Disc
- Mounting Type: Direct
- Pressure Rating: -0.5 to 45 Bar Operating, 300 Bar Burst
- Standards: UL, CE, TUV, VDE
- Terminal Type: Lead Wire
- Voltage: 250 VAC
- Contact Arrangement: Normally Closed
- Current Rating: 8A
- Features: Automatic/Manual Reset, with Deflator
- Function: High
- Number of Poles: 1
- Power Rating: 6.0 FLA, 36 LRA at 120/240 VAC
- Pilot Duty - 77 VA at 24 VAC
- 375 VA at 120/277 VAC
- 2A at 28 VDC
- 1 A at 24 VAC ExT 100 & 120
- Size: 22.6 mm Diameter
- Temperature Rating: -22°F to 185°F
- Type: Cartridge Control, High, Small Disc
- Weight: 0.18lb
