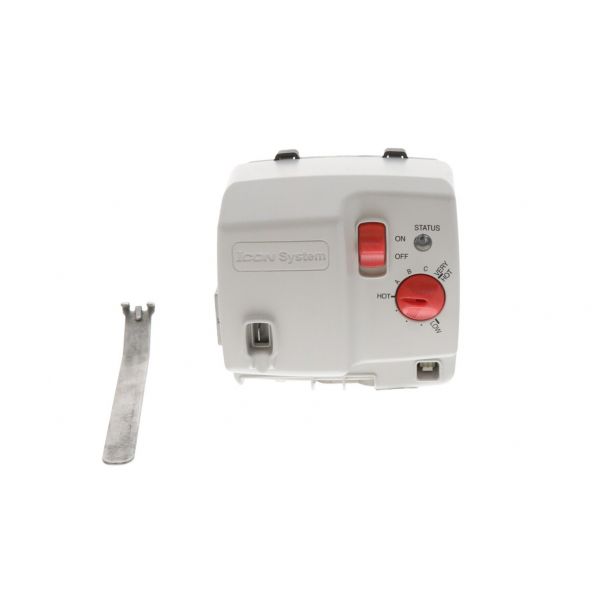

Bradford White 415-45613-01 120V 4 Inch Nat Gas Valve

Special Price $374.12 Regular Price $415.28
In stock
SKU
415-45613-01

The Bradford White 415-45613-01 is a 120-volt, 4-inch natural gas valve intended for use with Bradford White water heaters. This vital part serves as the gatekeeper, controlling the natural gas flow into the burner assembly to guarantee that your water heater heats water effectively. It functions electrically, interpreting signals from the thermostat to modify the gas flow according to your demand for hot water. Consistent water temperature and increased energy efficiency are the results of this fine management. The 415-45613-01, which is compatible with several Bradford White water heater models, guarantees safe gas operation and dependable performance, keeping your house warm and cozy with a consistent supply of hot water. This full functionality and safety can only be ensured by having a qualified technician execute the installation.

https://www.partshnc.com/media/catalog/product/4/1/415-45613-01.jpg

Product Overview:
As an essential fuel-metering component within residential heating equipment, a gas valve controls fuel admission during active burner cycles. The Bradford White 415-45613-01 4" Natural Gas Valve 120V manages natural gas fuel delivery within applicable heating systems. Operating on a electrical supply, this combination control integrates safety shut-off functions and pressure regulation into a single assembly. It regulates fuel supply to support stable combustion across heating demand cycles in water heaters and boilers.

Natural Gas Control:
Natural gas flow is controlled through internal solenoids that respond to electrical commands from the equipment's control system. When the solenoid coils are energized, the internal valve mechanism moves from its seated position to establish the gas-flow path through the valve body. The integrated pressure regulator manages the downstream gas pressure during burner operation.

Combustion Safety Control:
Positioned directly within the main natural gas fuel line upstream of the burner manifold, the valve serves as a primary mechanical interlock in the heating system safety circuit. The valve operates in series with safety limit switches and ignition control modules, remaining closed until system controls verify proper safety conditions. When energized, the valve maintains regulated output pressure during burner operation and closes immediately upon interruption of the control signal or tripping of a safety limit.

Replacement Guidelines:
Replacement may be appropriate when internal solenoid coils fail, mechanical valve components stick, or internal diaphragms deteriorate and affect the gas-control function. For Bradford White 415-45613-01, relevant conditions may include failure to open when energized, inconsistent pressure regulation, or failure to stop gas flow when de-energized. Replacing the valve restores the intended natural gas regulation and shut-off function within the equipment.

Common Failure Symptoms:

  • Failure of the main burners to ignite despite an active heating call.
  • Unstable burner flames caused by fluctuating outlet manifold natural gas pressure.
  • Lack of mechanical plunger movement when 120V control voltage is present.
  • Intermittent burner shutdown during active heating cycles due to solenoid coil failure.
  • Gas valve remaining closed due to internal mechanical linkage binding.

Equipment Compatibility:
The Bradford White 415-45613-01 applies to specific heating units produced by the manufacturer. Before purchasing, verify that the application matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, fuel type, pressure setting, and control voltage.

Technical Specifications:
Brand: Bradford White
Part Number: 415-45613-01
Product Type: Gas Valve
Fuel Type: Natural Gas
Pressure Setting: 4" WC
Control Voltage: 120V

Write Your Own Review
You're reviewing:Bradford White 415-45613-01 120V 4 Inch Nat Gas Valve
Your Rating
Customer Questions
What maintenance is required for the Bradford White 415-45613-01 Gas Valve?

Inspect the valve regularly for gas leaks, corrosion, or debris buildup. Ensure electrical connections remain tight and free of moisture. Periodic servicing supports ensuring safe operation and accurate ignition performance over time.

What are common issues with the Bradford White 415-45613-01 Gas Valve?

  • Gas leakage from worn seals or fittings.
  • Ignition failure or delayed startup.
  • Valve sticking due to debris or corrosion.
  • Electrical connection faults causing intermittent operation.
  • Pressure regulation instability affecting consistent gas flow.

How does the Bradford White 415-45613-01 gas valve regulate fuel delivery?

It regulates natural gas flow to heating system burners as part of the equipment's fuel-control system.

How do the internal solenoids and valve plungers control gas flow?

The internal solenoids actuate the valve plungers when the electrical control signal is applied, allowing natural gas to pass through the valve while the pressure regulator manages downstream output pressure.

What should be checked to confirm the 415-45613-01 matches a heating system?

The equipment documentation should be checked for the specified gas valve type, natural gas application, electrical requirements, and applicable pressure setting.

How does the integrated pressure regulator support burner operation?

The integrated pressure regulator maintains the specified gas pressure supplied to the burner manifold during equipment operation.

What can indicate a problem with the Bradford White 415-45613-01 gas valve?

Issues with gas delivery, burner operation, valve response, or pressure regulation can indicate that the gas valve requires inspection or replacement.

Installation Steps

Step 1: Turn off power to the water heater and shut off the gas supply completely before servicing.

Step 2: Allow unit to cool, then remove outer access panels to reach the gas control valve.

Step 3: Label and disconnect all wiring, pilot tubing, and main gas line carefully.

Step 4: Remove the old valve and install the new valve using correct pipe sealant and fittings.

Step 5: Reconnect wiring and tubing exactly as labeled, ensuring tight, leak-free connections.

Step 6: Turn gas and power back on, then check for leaks and check proper ignition and burner operation.
