Trane SHE5382 1-Groove Sheave 3.75" Bore 5/8"
Special Price $44.24 Regular Price $57.51
In stock
SKU
SHE5382

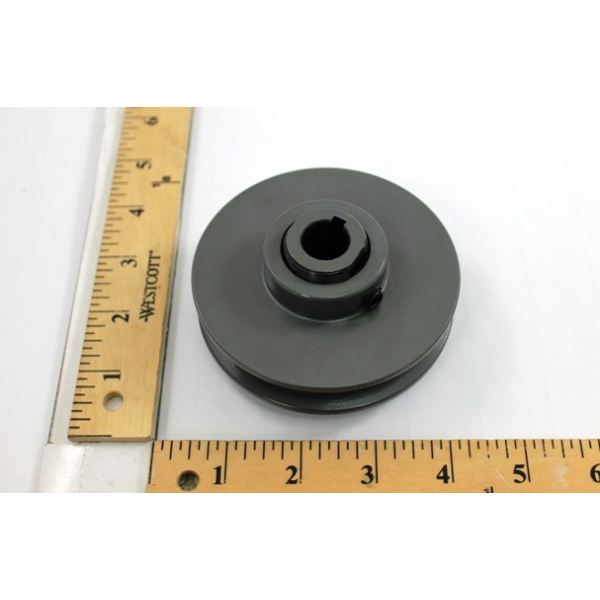

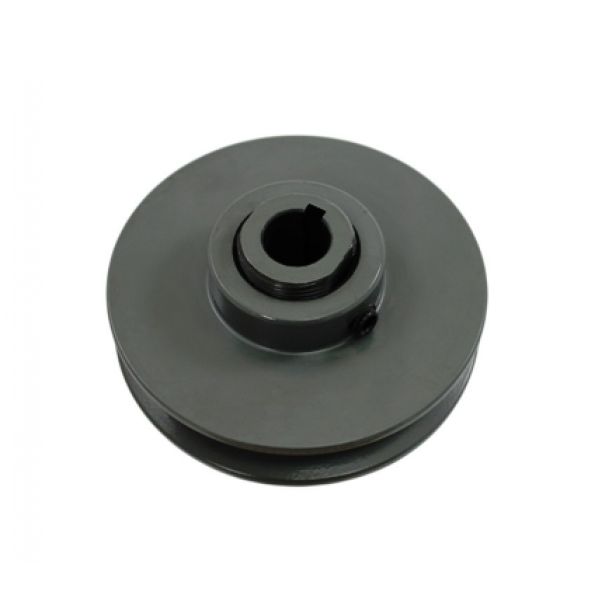

Trane SHE5382 1-Groove Sheave is an essential part that is dedicated to facilitating power transmission for HVAC devices. The sheave has an outside diameter of 3.75” and an inside bore diameter of 5/8” to guarantee proper alignment of the belt and exert correct tension on it. It is constructed from cast iron for sustainability and has a powder coat finish; it is 4” long and 1.875” wide. The sheave has a keyway of 3/16 x 3/32 inch and a length through bore of 1.88 inches to accommodate variable pitch. Being statically balanced for better perform, it is ideal for use in Trane air handling and blower systems, this gray sheave improves the efficiency and durability of the HVAC by ensuring standard belt operations.
Manufacturer:
Specifications
- Length: 4"
- Width: 1.875"
- Bore Diameter: 0.625"
- Color: Gray
- Finish: Powder Coated
- Keyway Size: 3/16 x 3/32"
- Length Thru Bore: 1.875"
- Number of Grooves: 1
- Outside Diameter: 3.75"
- Pitch Length: 1.06"
- Type: Variable Pitch
- Features: Statically Balanced
- Inside Diameter: 5/8"
- Length Thru Bore: 1.88"
- Material: Cast Iron
- Outside Diameter: 3.75"
- Pitch Diameter ("): 3.4 (4L), 3.7 (5L), 3.4 (A), 3.7 (B), 3.1 (3L)
- Pitch Length ("): 1
- Width Face Size: 21/32 to 1-1/32"
- Weight: 2.07lbs
