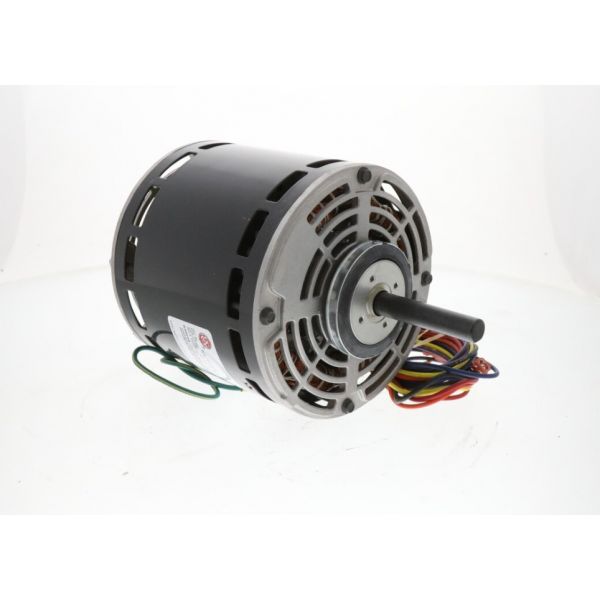

Lennox 43G52 1-Phase Blower Motor 3-Speed 3/4 HP 460V
Special Price $562.61 Regular Price $624.50
Out of stock
SKU
43G52
The Lennox 43G52 3/4 horsepower single phase blower motor installed in forced air HVAC system. It takes electrical energy and spins a fan blade to blow air through the duct work. The air circulation is necessary to distribute conditioned air heated or cooled to different rooms of your home and to keep a comfortable temperature. It is a 460V high voltage and is intended for horizontal mounting in the HVAC unit. A Lennox 43G52 blower motor and you’ll get better airflow throughout your system and it will continue to run efficiently in heating or cooling.
Manufacturer:
Specifications
- Measure: Units
- Height: 8.11 Inch
- Power: 3/4 HP
- Motor Type: PSC
- Diameter: 5.63 Inch
- Speed: 1075 RPM
- Current: 1.9A
- Frequency: 60 Hz
- Phase: 1
- Shaft Length: 2.5 Inch
- Speed: 3
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Hub Rings
- Voltage: 460V
- Shaft Size: 0.5 x 2.5 Inch
- Capacitor Value: 20µF 370 VAC
- Rotation: CCW
- Bearing Type: Sleeve
- 17.61lbs
- Weight:17.61lbs
