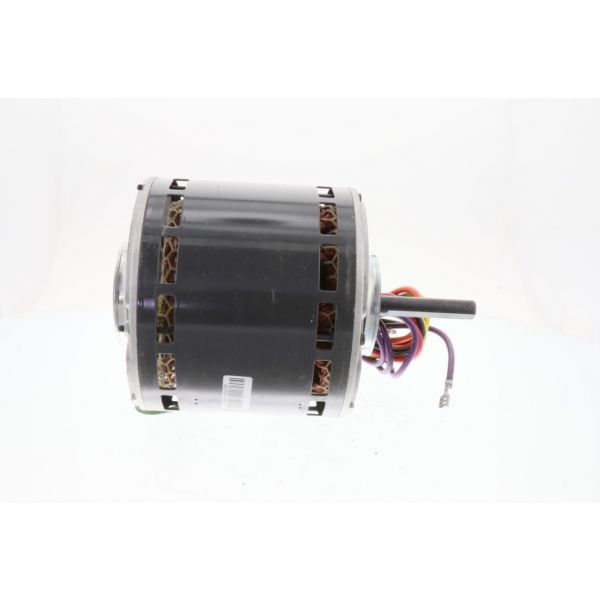

Lennox 78F92 1-Phase Motor 3/4 HP 208-230V 1075 RPM
Special Price $526.67 Regular Price $584.60
In stock
SKU
78F92
The Lennox 78F92 is a 3/4 horsepower, single phase PSC motor used in Lennox HVAC equipment. Permanent Split Capacitor is a reliable and efficient motor design. Motor runs on a 208-230 volt range and is suitable for 60Hz electrical systems. The counter clockwise rotation has a shaft size of 0.5 x 2.5 Inches and it measures 5.625 Inches in diameter. The motor of this HVAC comes with three selectable speeds and a max of 1075 RPM to adjust airflow according to your HVAC needs.
Manufacturer:
Specifications
- Measure: Units
- Power: : 3/4 HP
- Diameter: 5.625 Inch
- Speed: 1075 RPM
- Frequency: 60 Hz
- Phase: 1
- Motor Type: PSC
- Number of Speeds: 3
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Hub Rings
- Voltage: 208-230V
- Shaft Size: 0.5 x 2.5
- Capacitor Value10µF 370 VAC
- Rotation: CCW
- Bearing Type: Sleeve
- Weight: 17.3lbs
