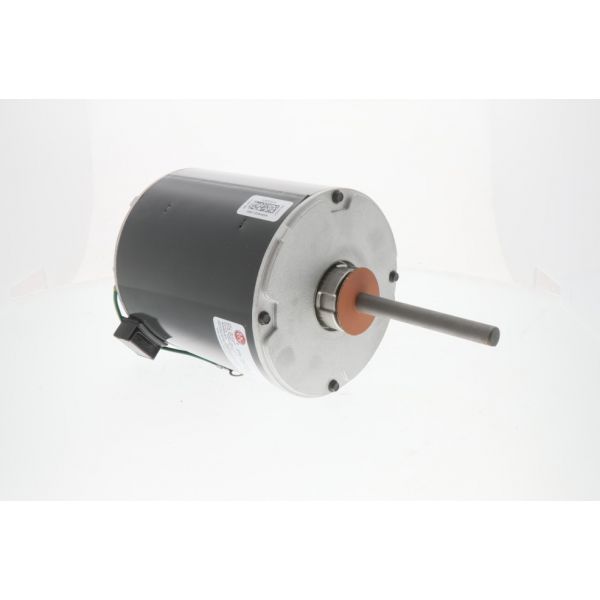

Lennox 49L66 Fan Motor 3/4 HP 1075 RPM 460V
Special Price $561.06 Regular Price $622.78
In stock
SKU
49L66
The Lennox 49L66 is a single speed fan motor for commercial HVAC systems. The 3/4 horsepower motor runs at 1060 RPM and efficiently circulates air through large spaces. The permanent split capacitor design is reliable. Its wide range of operation is from 380-460 volts and will work with 50 or 60Hz electrical system. Designed for vertical mounting with a belly band mounting type for easy installation and servicing in compatible Lennox HVAC equipment. Smooth operation is ensured over time by ball bearings.
Manufacturer:
Specifications
- Measure: Units
- Power: 3/4 HP
- Frequency: 50/60 Hz
- Phase: 1
- Shaft Length: 3.31 Inch
- Motor Type: PSC
- Speed: 1060 RPM
- Number of Speeds: 1
- Frame Size: 48
- Motor Mounting Position: Vertical
- Motor Mounting Type: Belly Band
- Voltage: 380-460V
- Shaft Size: 0.5 x 4 Inch
- Capacitor Value: 20µF 370 VAC
- Rotation: CCW
- Bearing Type: Ball
- Speed: 1
- Weight: 20.64lbs
