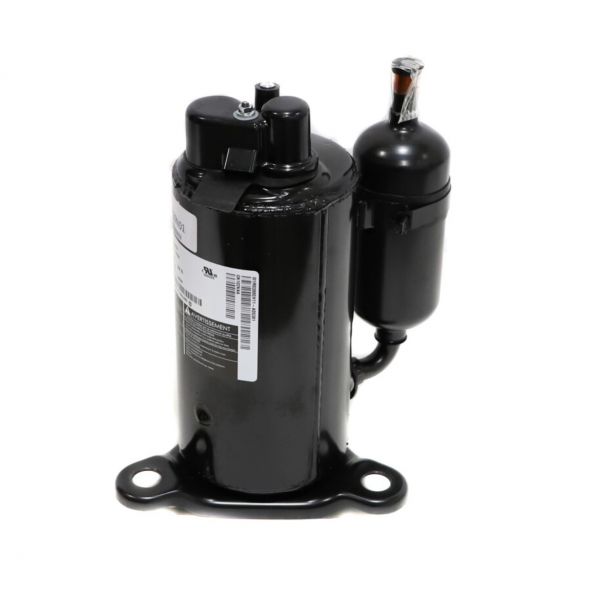

ClimateMaster 34B0110N01 Compressor R410A 208/230V 1-Phase GK102K

Special Price $425.31 Regular Price $549.73
In stock
SKU
34B0110N01

The ClimateMaster 34B0110N01 208/230V 1Ph R410A Compressor is an essential component in both residential and light commercial HVAC systems. The system's central component, a single-phase compressor, compresses and circulates R410A refrigerant. The environmentally favorable qualities of R410A are well known, especially when contrasted to previous refrigerants.  Refrigerant gas is fed into the compressor's chamber at low pressure and compressed into a high-pressure state. This procedure raises the refrigerant's temperature, facilitating effective heat transmission. Heat is drawn from your home and expelled outdoors when the cooling mode is activated. It transmits heat from the outside air into the interior during heating.  A few advantages of the ClimateMaster 34B0110N01 compressor include its outstanding dependability and energy economy.

https://www.partshnc.com/media/catalog/product/3/4/34b0110n01.jpg

Specifications

  • Type: Compressor
  • Voltage: 208/230V
  • Phase: 1 Phase
  • Refrigerant: R410A
  • Frequency: 60 Hz

Within ClimateMaster air-conditioning equipment, the compressor plays a central role in maintaining refrigerant circulation through the cooling cycle. The ClimateMaster 34B0110N01 is an HVAC compressor configured for R410A refrigerant and a 208/230V, single-phase electrical supply, used in GK102K equipment. Its compression function supports the refrigeration process that enables the equipment to transfer heat and provide cooling.

REFRIGERATION CYCLE ROLE:
Within ClimateMaster air-conditioning equipment, the 34B0110N01 compressor supports refrigerant circulation by compressing refrigerant vapor and moving it toward the condenser. This pressure increase enables the refrigerant to continue through the refrigeration cycle and participate in heat transfer. The compressor therefore plays a central role in the equipment's cooling process.

REFRIGERANT AND ELECTRICAL REQUIREMENTS:
34B0110N01 is configured for R410A refrigerant and a 208/230V, single-phase electrical supply. The refrigerant specification must align with the equipment's refrigeration system, while the voltage and phase must match its electrical requirements. These characteristics are essential checkpoints when assessing a replacement, although they do not independently confirm compatibility with a specific equipment model.

Replacement Guidelines:
Replacement may be appropriate when the ClimateMaster 34B0110N01 compressor no longer maintains the required compression performance or develops abnormal operating behavior. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

COMMON FAILURE SYMPTOMS:

  • The compressor does not start when cooling is requested.
  • The compressor starts intermittently or stops unexpectedly.
  • Unusual noise occurs during compressor operation.
  • Excessive vibration is observed while the compressor is running.
  • The air-conditioning system delivers inconsistent or inadequate cooling.

Equipment Compatibility:
Confirm compatibility using the ClimateMaster equipment model, the existing compressor part number, and the equipment manufacturer's replacement requirements. The 34B0110N01 is specified for R410A refrigerant and a 208/230V, single-phase electrical configuration. Do not rely on refrigerant type or electrical ratings alone to determine whether the compressor is suitable for a particular system.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: ClimateMaster
Part Number: 34B0110N01
Product Type: Compressor
Application: Air Conditioning
Refrigeration Specifications:
Refrigerant: R410A
Electrical Specifications:
Voltage: 208/230V
Phase: 1-Phase

Write Your Own Review
You're reviewing:ClimateMaster 34B0110N01 Compressor R410A 208/230V 1-Phase GK102K
Your Rating
Customer Questions
What maintenance is required for the ClimateMaster 34B0110N01 Compressor?

Regularly inspect electrical connections, refrigerant lines, and mounting integrity to ensure stable compressor operation. Check refrigerant charge and oil levels periodically to prevent overheating and inefficiency. Clean coils and ensure proper airflow while avoiding debris buildup and overheating risks.

What are common issues with the ClimateMaster 34B0110N01 Compressor?

  • Electrical start failure due to capacitor or relay faults.
  • Refrigerant leak causing low cooling performance.
  • Overheating from restricted airflow or low charge.
  • Vibration or noise from worn mounts or internal damage.

What happens to the refrigerant as it passes through the 34B0110N01?

The compressor raises the pressure of refrigerant vapor before it continues toward the condenser.

Which equipment model is this compressor associated with?

The provided equipment model is GK102K. Confirm the model and compressor part number against the equipment manufacturer's documentation before installation.

Is the ClimateMaster 34B0110N01 suitable for every ClimateMaster air-conditioning system?

No. Compatibility should be established using the exact equipment model, compressor part number, and manufacturer-approved replacement information rather than the ClimateMaster brand alone.

What should be checked if the new compressor does not operate after installation?

A qualified HVAC technician should check the electrical supply, connections, controls, and refrigeration-system installation in accordance with the manufacturer's procedures before determining the cause.

How can I confirm whether the ClimateMaster 34B0110N01 is the correct replacement compressor?

Compare the existing compressor part number with 34B0110N01 and verify the GK102K equipment model against the manufacturer's documentation. Also confirm the required refrigerant and electrical specifications before ordering.

Installation Steps

Step 1: Disconnect power supply and apply lockout/tagout for safety.

Step 2: Recover refrigerant using proper recovery equipment.

Step 3: Remove the faulty compressor and inspect the system for damaged components.

Step 4: Mount the new compressor securely using the correct vibration grommets and hardware.

Step 5: Braze the refrigerant lines while flowing purge to prevent internal oxidation.

Step 6: Reconnect electrical wiring according to the unit wiring diagram and verify capacitor compatibility.

Step 7: Evacuate system, leak test, recharge, restore power, and test operation.
