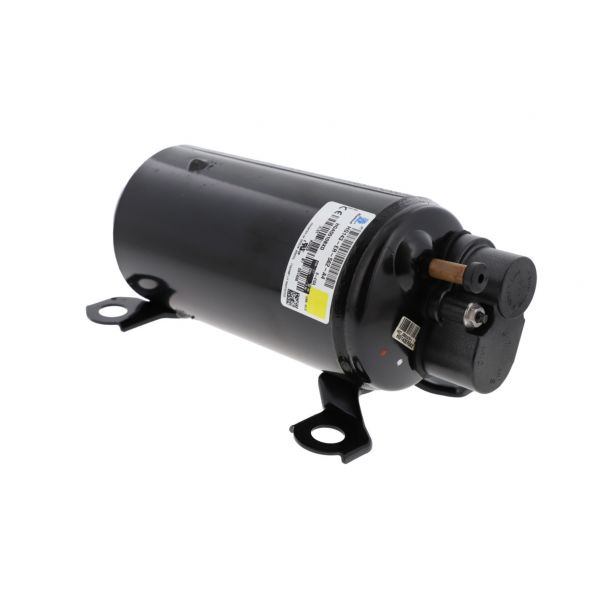

ClimateMaster 34B0049N01 HGA Compressor R410A 208-230V 1-Phase 60Hz

Special Price $402.51 Regular Price $446.78
In stock
SKU
34B0049N01

The ClimateMaster 34B0049N01 HGA compressor is an essential component of HVAC systems, specifically engineered to deliver effective and dependable cooling performance. This compressor, which operates at 60 Hz in single-phase mode and can handle power levels of 208/230 volts, is a crucial component of ClimateMaster equipment. The HGA compressor, which functions as a component of the refrigeration cycle, is essential to the heat exchange process. The process converts the refrigerant from a low-pressure gas to a high-pressure gas by applying pressure to it. As the compressed gas passes through the condenser coil, it releases heat and is subsequently released from the system.



https://www.partshnc.com/media/catalog/product/3/4/34b0049n01.jpg

Air-conditioning and refrigeration systems rely on compressors to maintain refrigerant circulation and the pressure conditions required for cooling. The ClimateMaster 34B0049N01 is an OEM HGA compressor designed for refrigeration applications using R410A refrigerant. It increases the pressure of returning refrigerant vapor before discharging it into the refrigeration circuit. This process supports refrigerant movement through the system and helps maintain the conditions required for continuous cooling operation.

HGA COMPRESSOR OPERATION:
During operation, the compressor receives low-pressure refrigerant vapor and raises its pressure before discharging it into the refrigeration circuit. This pressure increase establishes the difference between the low-pressure and high-pressure sides of the system, supporting refrigerant movement through the cooling cycle. The HGA designation identifies the compressor configuration associated with the 34B0049N01 and serves as an additional reference when identifying the correct replacement.

REFRIGERANT CIRCULATION AND HEAT TRANSFER:
The 34B0049N01 compressor supports refrigerant circulation between the evaporator and condenser. Refrigerant absorbs heat from the conditioned space as it passes through the evaporator. After compression, it moves toward the condenser, where the absorbed heat is released. The refrigerant then passes through the expansion device before returning to the evaporator, allowing the cooling cycle to continue.

REPLACEMENT GUIDELINES:
Replacement may be necessary when the 34B0049N01 develops a confirmed mechanical or electrical fault or can no longer provide the compression performance required by the refrigeration system. Before ordering, compare the existing part number with the equipment requirements and verify the applicable specifications.

COMMON FAILURE SYMPTOMS:

  • Compressor fails to start when the cooling system calls for operation
  • Compressor shuts down unexpectedly, interrupting the cooling cycle
  • Insufficient cooling occurs during normal system operation
  • Unusual humming, rattling, or mechanical noise develops during operation
  • Excessive vibration occurs around the compressor during operation

EQUIPMENT COMPATIBILITY:
The ClimateMaster HGA Compressor is intended for equipment requiring the corresponding HGA compressor configuration. To confirm compatibility, compare the existing compressor part number and complete equipment model with the original equipment manufacturer's parts documentation before ordering a replacement.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: ClimateMaster
Part Number: 34B0049N01
Product Type: HGA Compressor
Electrical Specifications:
Voltage: 208/230V
Phase: 1-Phase
Frequency: 60Hz
Refrigerant Specifications:
Refrigerant: R410A

Write Your Own Review
You're reviewing:ClimateMaster 34B0049N01 HGA Compressor R410A 208-230V 1-Phase 60Hz
Your Rating
Customer Questions
What is the ClimateMaster 34B0049N01 HGA Compressor used for?

The 34B0049N01 is an HGA compressor that increases refrigerant vapor pressure to support refrigerant circulation through the cooling system.

What does the HGA designation identify on the 34B0049N01?

HGA identifies the compressor configuration associated with this part number and provides an additional reference when checking the correct replacement.

Which refrigerant is specified for the ClimateMaster 34B0049N01?

The compressor is specified for R410A refrigerant. The intended refrigeration system must be designed for this refrigerant.

Can another HGA compressor replace the 34B0049N01?

Not based on the HGA designation alone. The replacement must also meet the required compressor configuration, refrigerant, electrical requirements, and equipment specifications.

How can I verify the correct 34B0049N01 replacement before ordering?

Check the existing compressor part number and complete equipment model against the original equipment manufacturer's parts documentation. Confirm that the replacement matches the required HGA configuration and system requirements.
