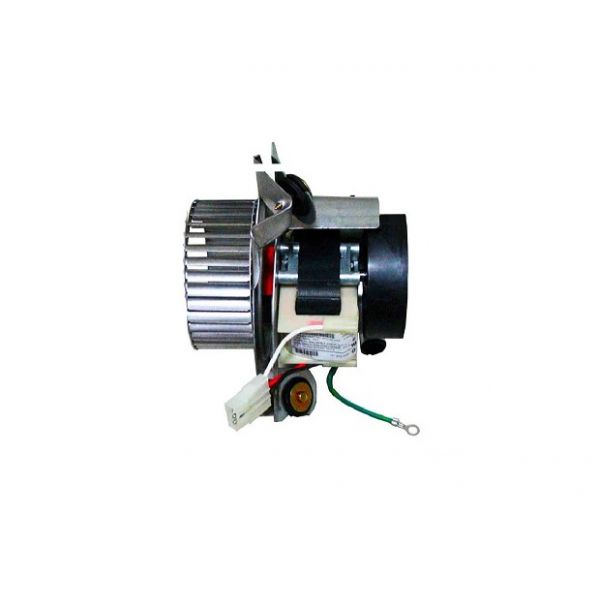

Carrier 349336-761 Draft Inducer Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $212.68 Regular Price $270.82
In stock
SKU
349336-761
The Carrier 349336-761 Draft Inducer Assembly is an essential part of heating systems since they are tasked with removal of combustion gases from furnaces efficiently. It is operated is by building up pressure at base of furnace which as a result sucks combustion air into furnace and adequately expelling the exhaust gases through the flue. This process provides for the right flow of fresh air and keeps out all forms of hazardous gases like carbon monoxide. Some of the advantages of Draft Inducer Assembly are; better heat output, less energy use, and safety from carbon monoxide.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:

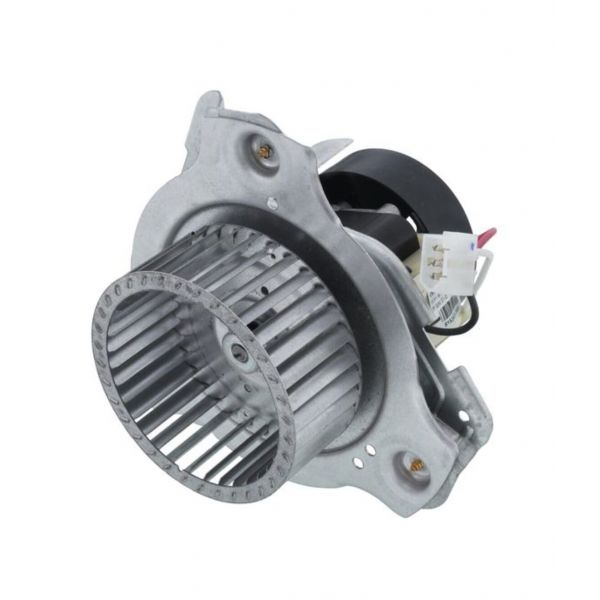

https://www.partshnc.com/media/catalog/product/3/4/349336-761_1.jpg

Specifications

  • Type: Draft Inducer Assembly

    Gas-fired furnaces require controlled airflow to support combustion and move exhaust gases through the venting system. The Carrier 349336-761 Draft Inducer Assembly helps establish the draft needed for the furnace's combustion and exhaust process.

    Draft Inducer Airflow Operation:
    The draft inducer assembly creates airflow and pressure conditions that support the furnace's combustion and venting process. Its operation helps move air and combustion byproducts through the designated airflow path.

    Combustion Air:
    The assembly supports the movement of combustion air and directs exhaust gases toward the flue. This helps maintain the airflow path needed to carry combustion byproducts away from the furnace's combustion area.

    Replacement Guidelines:
    Replacement may be necessary when a confirmed fault prevents the inducer assembly from establishing the required draft or performing its intended function. Before ordering, verify the Carrier 349336-761 part number against the furnace's parts documentation.

    Common Failure Symptoms:

    • Inducer fails to operate
    • Inconsistent inducer operation
    • Unusual operating noise
    • Excessive vibration
    • Visible damage to the assembly

    Equipment Compatibility:
    The Carrier 349336-761 is identified as a draft inducer assembly for furnace applications. Confirm the part number and furnace model against the equipment's parts documentation before ordering, as specific compatible models have not been provided.

    Technical Specifications:
    Brand: Carrier
    Part Number: 349336-761
    Product Type: Draft Inducer Assembly

    Reviews 1
    Write Your Own Review
    You're reviewing:Carrier 349336-761 Draft Inducer Assembly
    Your Rating
    Product Questions (7)
    Customer Questions
    What maintenance is required for the Carrier 349336-761 Draft Inducer Assembly?

    Regularly inspect the inducer assembly for dust, debris, or signs of wear. Clean the blower wheel and housing as needed, and ensure all electrical connections are secure. Proper maintenance ensures efficient airflow and safe furnace operation.

    What are common issues with the Carrier 349336-761 Draft Inducer Assembly?

    • Excessive noise or vibration.
    • Reduced airflow due to debris buildup.
    • Motor failure or electrical connection issues.
    • Worn or misaligned blower wheel.

    What does the Carrier 349336-761 Draft Inducer Assembly do?

    It helps establish the draft needed to support combustion airflow and move exhaust gases through a furnace's venting path.

    How does the 349336-761 support furnace operation?

    It creates the airflow and pressure conditions needed to support the furnace's combustion and exhaust process.

    What is the role of a draft inducer assembly in exhaust venting?

    The assembly helps move combustion byproducts toward the flue, supporting their removal from the furnace.

    Why is the 349336-761 identified as an assembly?

    It is listed as a draft inducer assembly rather than a standalone motor. Confirm the included components using the manufacturer's parts documentation.

    How can I verify whether the 349336-761 is the correct replacement?

    Compare the part number 349336-761 with the furnace's model-specific parts list and confirm that the assembly is specified for the equipment.

    Installation Steps

    Step1: Turn off power and shut off gas supply before servicing the furnace.

    Step2: Remove the old inducer assembly by disconnecting wiring and mounting hardware.

    Step3: Position the new draft inducer assembly and secure it with original fasteners.

    Step4: Reconnect electrical connections and ensure proper gasket sealing.

    Step5: Restore power and gas, then test the inducer operation for correct airflow.
