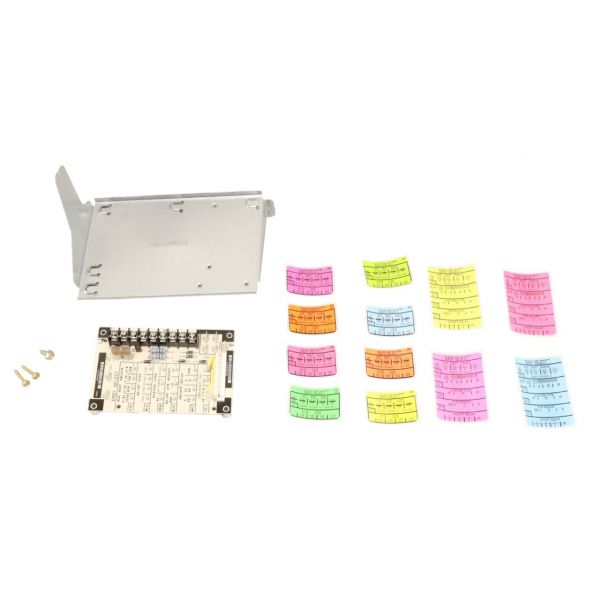

Carrier 345606-75101 Printed Circuit Board

Special Price $315.89 Regular Price $350.64
Out of stock
SKU
345606-75101
The Carrier 345606-75101 Printed Circuit Board is the compatible Carrier HVAC systems. It receives signals from various sensors and thermostats, interpreting them to regulate critical functions like heating, cooling, and airflow. This ensures your HVAC system maintains a comfortable temperature throughout your home. The circuit board is designed to operate within a temperature range of 40°C to 85°C for optimal performance. Its compact size (100mm x 80mm x 1.6mm) allows for easy integration within the HVAC unit, and its lightweight (1.35lbs) construction makes handling convenient.
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/4/345606-75101_carrier_partshnc.jpg

Specifications

  • Weight:1.35lbs
  • Temperature: 40°C to 85°C
  • Size: 100mm x 80mm
  • Thickness: 1.6mm
Manufacturer Name: Carrier
Product Number: 345606-75101
OEM Part Number: 345606-75101
Product Description:  The printed circuit board (PCB) used in air conditioners is a critical component that serves as the "brain" of the system, controlling various functions and ensuring the unit operates efficiently. The PCB contains the control logic for the air conditioner. It manages all system operations, including turning the unit on and off, adjusting temperature settings, and controlling fan speed. It monitors the ambient temperature and compares it to the desired setpoint, instructing the compressor to start or stop to maintain the desired temperature in the room. The Printed Circuit Board For Carrier 345606-75101 allows users to select different operating modes such as cooling, heating, fan-only, or dehumidification. It coordinates the appropriate components and settings for each mode. It regulates the speed of the indoor and outdoor fans to optimize airflow and cooling performance, which is crucial for maintaining comfort and energy efficiency. Many air conditioners feature timers and scheduling capabilities to set specific operation times. The PCB manages these functions, allowing users to customize their cooling schedules. PCBs are equipped with receivers to accept signals from remote controls or home automation systems, providing convenient wireless control. When a problem or fault occurs, the PCB can display error codes on the unit's control panel or provide them through diagnostic LEDs. These codes help technicians identify issues for troubleshooting. Advanced PCBs have self-diagnostic capabilities, where the board can detect system malfunctions, display error codes, and even store diagnostic information for service technicians. In systems with dehumidification functions, the PCB oversees humidity sensors and adjusts the cooling cycle to maintain comfortable indoor humidity levels. PCBs can analyze temperature data and adjust the compressor's speed and operating time to optimize energy efficiency, reducing power consumption.

Key features offered by the Carrier printed circuit boards for air conditioners are:

  • Manages all system operations and functions.
  • Allows users to choose cooling, heating, fan-only, or other modes.
  • Optimizes airflow and cooling performance.
  • Regulates the desired room temperature.

The Printed Circuit Board For Carrier 345606-75101 is a vital component in air conditioners, responsible for controlling and coordinating various functions, ensuring comfort, energy efficiency, and system reliability. Its features may vary depending on the specific make and model of the air conditioner.

Weight:1.35lbs/612.35g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]



Write Your Own Review
You're reviewing:Carrier 345606-75101 Printed Circuit Board
Your Rating
Customer Questions
How does the timer function on the PCB work, and what are its benefits?

The timer function allows users to set specific operation times for the air conditioner. It's beneficial for energy savings and coming home to a comfortable environment.

Is the PCB compatible with remote control systems, and how does it work with them?

Many PCBs are compatible with remote control systems, allowing users to adjust settings remotely. It typically involves wireless communication.

Can the PCB be customized to match specific cooling requirements or preferences?

Many PCBs offer customization options, allowing users to fine-tune settings to meet their specific cooling needs and preferences.
