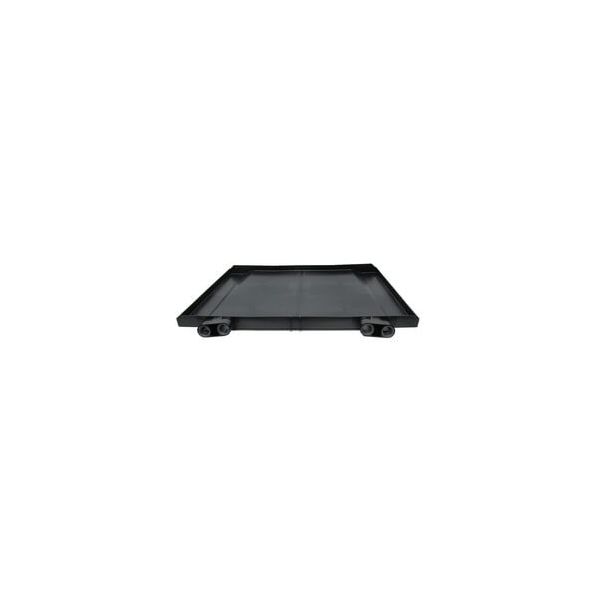

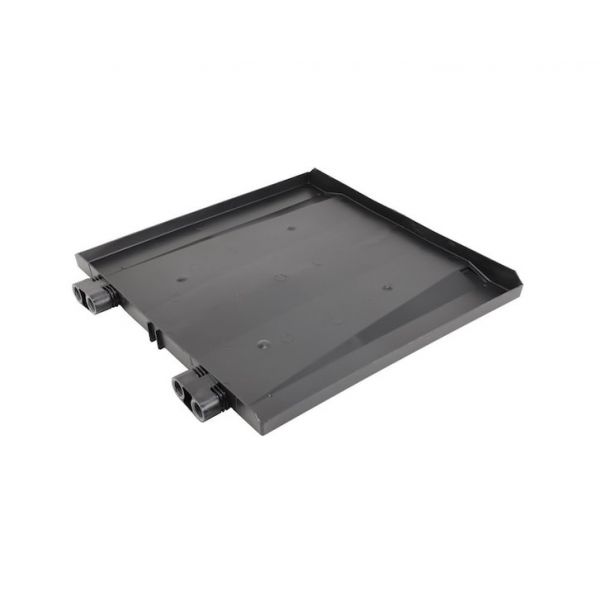

Carrier 343314-75102 Horizontal Condensate Pan

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $234.51 Regular Price $260.31
In stock
SKU
343314-75102
The Carrier 343314-75102 is a horizontal condensate pan which is a tray-like product used in HVAC systems such as furnaces and air conditioners. This cooling, air conditioners dehumidify the air by taking the moisture out of it and the moisture forms water droplets. This condensate has to be removed to avoid the occurrence of water-related problems. The horizontal condensate pan is located below the presented HVAC and it collects this condensate. The collected water can be drained out through a standard 3/4” connection for the drain. Measuring 25” long, 24” wide, and 5.5” high, this particular pan is suitable for many HVAC systems.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/4/343314-75102.jpg

Specifications

  • Size: 25 " x 24 " x 5.5 "
  • Weight: 4.29lbs
  • Drain Connection Size: 3/4 "
  • Composition: Plastic
  • Color: Black
  • Length: 25 "
  • Width: 24 "
  • Height: 5.5 "

Horizontal Condensate Pan Carrier 343314-75102

Carrier 343314-75102 Horizontal Condensate Pan is a crucial component of your Carrier air conditioning system, serving as a replacement horizontal condensate pan. The carrier Horizontal Condensate Pan captures the water condensation produced by the evaporator coil as the air is cooled. The pan features a sloped bottom and integrated overflow protection, ensuring efficient drainage and preventing water from overflowing and causing damage to your home. By collecting and draining condensate effectively, the pan prevents water buildup and potential system malfunction. By collecting and draining condensate effectively, the pan prevents water buildup and potential system malfunction. It plays a vital role in collecting and draining the condensate generated during the cooling process, preventing water leaks, and ensuring efficient system operation.

Key Features:

  • Galvanized steel construction: Durable and resistant to corrosion.
  • Horizontal design: Compact and fits easily within most air conditioning units.
  • Sloped bottom: Facilitates efficient drainage of collected condensate.
  • Integrated overflow protection: Prevents water from overflowing and causing damage.
  • Mounting brackets: Included for easy and secure installation.
  • 5-gallon capacity: Suitable for most residential air conditioning systems.

Dimensions of Carrier 343314-75102 Horizontal Condensate Pan

  • Length: 13.4 inches (340 mm)
  • Width: 7.5 inches (190 mm)
  • Height: 3.7 inches (94 mm)
  • Weight:4.29lbs/1945.91g

Signs of a Faulty Horizontal Condensate Pan Carrier 343314-75102:

  • Water leaks: Around the base of your air conditioning unit, indicating potential cracks or leaks in the pan.
  • Mold or mildew growth: Around or under the AC unit, suggesting excessive moisture buildup due to a faulty pan.
  • Unusual noises: Gurgling or dripping sounds coming from the AC unit, potentially caused by a clogged drain line or a damaged pan.
  • Reduced cooling efficiency: The AC unit might struggle to maintain desired temperatures due to inefficient condensate removal.

Similar Models:

343314-75103, 343313-75102,

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

FAQs

Q: What is the  Horizontal Condensate Pan 343314-75102and what does it do?

A: Carrier Horizontal Condensate Pan is a replacement horizontal condensate pan designed for specific Carrier air conditioning models. It collects and drains the condensate generated during the cooling process, preventing leaks and ensuring efficient system operation.

Q: Can I replace the Horizontal Condensate Pan Carrier 343314-75102?

  • Yes, if you have basic plumbing skills and knowledge.
  • Consult your system's manual for installation instructions.
  • Consider professional installation for complex situations or if unsure.

Q: What are some safety precautions regarding the Carrier 343314-75102 Horizontal Condensate Pan?

  •  Consult a qualified HVAC technician if you suspect a problem.
  • Ensure proper disposal of the old pan according to local regulations.
  • Wear protective gear when working with plumbing components.
  • Turn off the power to your AC unit before replacement.
Reviews 4
Write Your Own Review
You're reviewing:Carrier 343314-75102 Horizontal Condensate Pan
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Carrier 343314-75102 Condensate Pan?

Regularly inspect the condensate pan for debris, dirt, or standing water. Clean the pan and ensure proper drainage. Proper maintenance prevents overflow, corrosion, and ensures efficient condensate removal.

What are common issues with the Carrier 343314-75102 Condensate Pan?

  • Clogging from debris or sediment.
  • Leaks or cracks in the pan.
  • Improper drainage causing water buildup.
  • Corrosion or rust on metal surfaces.

Installation Steps

Step1: Turn off power to the HVAC unit before beginning.

Step2: Remove the old condensate pan and clean the area of debris.

Step3: Position the new pan level and secure it within the unit.

Step4: Reconnect drain line and ensure proper slope for drainage.

Step5: Restore power and check for proper water flow without leaks.
