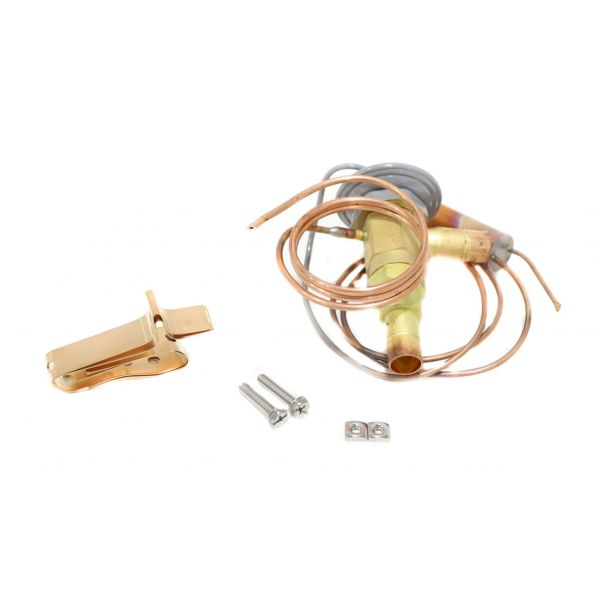

main product photo

ClimateMaster 33B0015N02 Thermal Expansion Valve(Txv)

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $118.53 Regular Price $153.95
In stock
SKU
33B0015N02

The ClimateMaster 33B0015N02 Thermal Expansion Valve  is a vital item used in air conditioning and heat pump systems, among other HVAC systems. The crucial job of controlling the flow of refrigerant into the evaporator coil is carried out by this valve, which promotes effective heat exchange and optimal system efficiency. The 33B0015N02 TXV is a seamless integration into HVAC systems that guarantees accurate control over refrigerant flow rates, facilitating efficient cycles of heating or cooling. This valve offers lower energy use, better temperature control, and increased system efficiency. It is a crucial part in preserving optimal performance and dependability in residential, commercial, and industrial HVAC systems due to its sturdy structure and dependable operation.

Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/3/33b0015n02.jpg

PRODUCT OVERVIEW:
Provides an OEM refrigerant metering component for ClimateMaster heating and cooling equipment. The ClimateMaster 33B0015N02 Thermal Expansion Valve (TXV) regulates liquid refrigerant entering the evaporator coil according to changing system thermal conditions. By controlling refrigerant admission, the valve supports the targeted evaporator superheat and helps limit unevaporated liquid from returning toward the compressor. This controlled metering also supports the intended heat-transfer process across the evaporator coil assembly.

METERING MECHANISM AND FLOW MODULATION:
Changes in evaporator operating conditions influence the valve's internal control mechanism, causing the metering passage to adjust accordingly. As the valve opening changes, the amount of liquid refrigerant admitted through the metering point can increase or decrease. This variable response allows refrigerant delivery to follow changing system conditions instead of maintaining a constant flow rate.

REFRIGERATION CIRCUIT INTEGRATION:
Positioned between the liquid refrigerant supply and evaporator section, the TXV establishes a controlled passage within the refrigeration loop. Refrigerant enters the valve from the liquid side and passes through the metering restriction before reaching the evaporator. This arrangement separates the connected circuit sections while providing controlled refrigerant admission to the evaporator.

REPLACEMENT GUIDELINES:
Replacement of ClimateMaster 33B0015N02 may be appropriate when the existing thermal expansion valve develops refrigerant leakage, restricted refrigerant passage, inconsistent metering, or an improper response to changing evaporator conditions. Replacement may also be required when physical damage affects the valve or sensing assembly. Replacing the affected TXV should restore the intended refrigerant metering relationship within the applicable HVAC refrigeration circuit.

Common Failure Symptoms:

  • Excessive frost or ice formation along the evaporator coil inlet
  • Abnormally low suction pressure accompanied by elevated superheat
  • Liquid refrigerant floodback entering the compressor inlet
  • Inability of equipment to reach target discharge air or fluid temperatures
  • Frequent system cut-outs triggered by low-pressure safety switches

EQUIPMENT COMPATIBILITY:
The ClimateMaster 33B0015N02 Thermal Expansion Valve (TXV) is an OEM component designed for use with compatible ClimateMaster equipment. Verify the equipment manufacturer and part number (33B0015N02) before selecting the replacement assembly.

Technical Specifications:
Product identification:
Manufacturer: ClimateMaster
Part Number: 33B0015N02
Component Type: Thermal Expansion Valve (TXV)

Reviews 2
Write Your Own Review
You're reviewing:ClimateMaster 33B0015N02 Thermal Expansion Valve(Txv)
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the ClimateMaster 33B0015N02 Thermal Expansion Valve?

Inspect the valve periodically for leaks, corrosion, or blockages. Ensure proper installation and check connections for tightness. Cleaning and monitoring performance supports maintain correct refrigerant flow and efficient system operation.

What are common issues with the ClimateMaster 33B0015N02 Thermal Expansion Valve?

  • Refrigerant flow restriction or blockage.
  • Leaking or dripping connections.
  • Inconsistent system cooling.
  • Valve sticking or sluggish response.

What is the primary role of the ClimateMaster 33B0015N02 TXV?

It meters liquid refrigerant into the evaporator coil based on thermal load to maintain proper superheat and heat transfer efficiency.

How does a thermal expansion valve protect an HVAC compressor?

It ensures liquid refrigerant fully vaporizes before leaving the evaporator, preventing compressor damage caused by liquid slugging.

What symptoms suggest a thermal expansion valve needs replacement?

Common signs include low suction pressure, frost buildup at the valve outlet, excessive superheat, and degraded system performance.

Why is part number verification important when replacing a TXV?

Verifying part number 33B0015N02 ensures proper orifice sizing, flow calibration, pressure characteristics, and connection alignment for your equipment.

What maintenance should be performed when replacing an expansion valve?

Replacing the liquid line filter-drier is recommended whenever opening the refrigerant circuit to prevent moisture and debris contamination.

Installation Steps

Step1: Turn off the HVAC system and disconnect power for safety.

Step2: Recover refrigerant from the system following proper procedures.

Step3: Remove the old TXV by disconnecting refrigerant lines and mounting hardware.

Step4: Install the new thermal expansion valve in the correct orientation.

Step5: Reconnect refrigerant lines and tighten all fittings securely.

Step6: Evacuate and recharge the system with refrigerant.

Step7: Restore power and test the system for proper cooling and operation.
