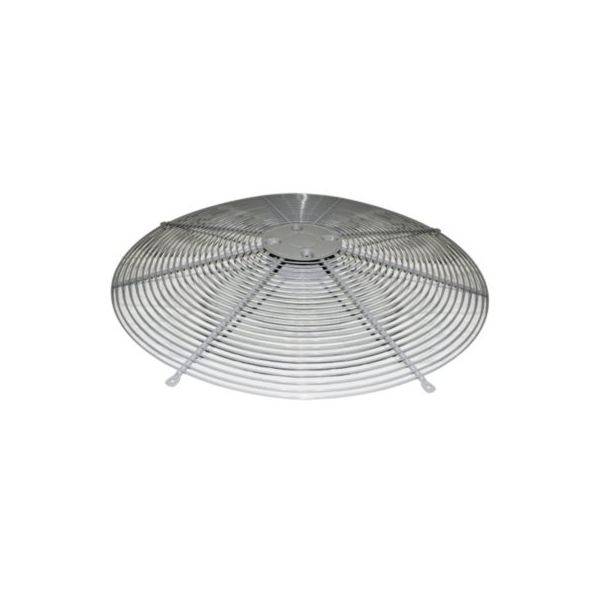

Carrier 333755-411 Fan Guard Top Panel 30-inch

Special Price $88.44 Regular Price $101.71
In stock
SKU
333755-411
The Carrier 333755-411 is an essential fan guard top panel that is used for Carrier HVAC units which are usually the outdoor condenser units. This massive shield has many functions to protect and enhance the performance of your system. The fan guard top panel shields the condenser fan from foreign objects that may cause damage to the fan when they are drawn into the unit. The design provides for a proper cross-flow of air over the condenser coils to enhance heat rejection while at the same time achieving the desired cooling.
Manufacturer:
https://www.partshnc.com/media/catalog/product/3/3/333755-411_carrier_partshnc.jpg

Specifications

  • Type: Fan Gaurd
  • Weight: 13.45lbs
  • Length: 32 "
  • Width: 32 "
  • Height: 2 "

Fan guard panels provide a protective barrier around rotating fan assemblies in outdoor HVAC equipment. The Carrier 333755-411 Fan Guard Top Panel covers the upper fan area of compatible Carrier equipment. Its open guard construction helps protect the fan area from external objects while allowing air to pass through.

Fan Protection and Airflow:
The open guard design provides a barrier around the fan while maintaining a path for airflow through the panel. This supports air movement through the condenser section during operation.

Panel Dimensions and Physical Fit:
The supplied panel dimensions are 30 inches long. Compare these measurements with the existing guard and mounting area to assess the panel's physical fit.

Replacement Guidelines:
Replacement may be appropriate when the existing guard is damaged or no longer provides the intended protection around the fan. Before ordering, verify the part number and panel configuration against the applicable equipment requirements and manufacturer's parts documentation.

Common Failure Symptoms:

  • Bent or damaged guard
  • Loose mounting
  • Corrosion or deterioration
  • Misalignment with the fan assembly
  • Damage that compromises fan protection

Equipment Compatibility:
The Carrier 333755-411 Fan Guard Top Panel is provided for compatibility checking with equipment models 25HCC536A0030060, 25HBC548AS030060, 24APB636A0030010, and 25HBC360A0060010. Verify each equipment model and the correct panel part number against Carrier parts documentation before purchasing.

Technical Specificatons:
Brand: Carrier Part Number: 333755-411 Product Type: Fan Guard Top Panel

Write Your Own Review
You're reviewing:Carrier 333755-411 Fan Guard Top Panel 30-inch
Your Rating
Customer Questions
What maintenance is required for the Carrier 333755-411 Fan Guard Top Panel?

Regularly inspect the fan guard top panel for dirt, debris, or loose mounting screws. Clean as needed to ensure unobstructed airflow. Proper maintenance helps protect the fan and maintain system efficiency. Always turn off power before servicing.

What are common issues with the Carrier 333755-411 Fan Guard Top Panel?

  • Loose or missing mounting screws.
  • Bent or damaged panel.
  • Obstruction from debris.
  • Misalignment affecting fan clearance.

Where is the Carrier 333755-411 fan guard top panel used?

It is identified as a top fan guard panel for compatible Carrier outdoor HVAC equipment. Confirm the specific equipment application through Carrier parts documentation.

How does the open guard design support airflow?

Its open construction allows air to pass through the panel while providing a protective barrier around the fan area.

Does the 30-inch title description match the listed panel dimensions?

The supplied description lists dimensions of 32 inches long, 32 inches wide, and 2 inches high, which conflicts with the 30-inch title description. Verify the correct dimensions using an authorized product source before publishing.

Can a fan guard with the same dimensions replace the 333755-411?

Not necessarily. The mounting arrangement, panel shape, and equipment application must also match. Confirm the replacement part using Carrier parts documentation.

What should be checked before ordering a replacement fan guard?

Verify the part number, physical dimensions, mounting arrangement, and equipment model against the manufacturer's parts information.

Installation Steps

Step1: Turn off power to the unit for safety.

Step2: Remove the existing top panel or fan guard if present.

Step3: Position the new fan guard top panel securely over the fan assembly.

Step4: Fasten all screws or clips to ensure a stable fit.

Step5: Restore power and verify that the fan operates without obstruction.
