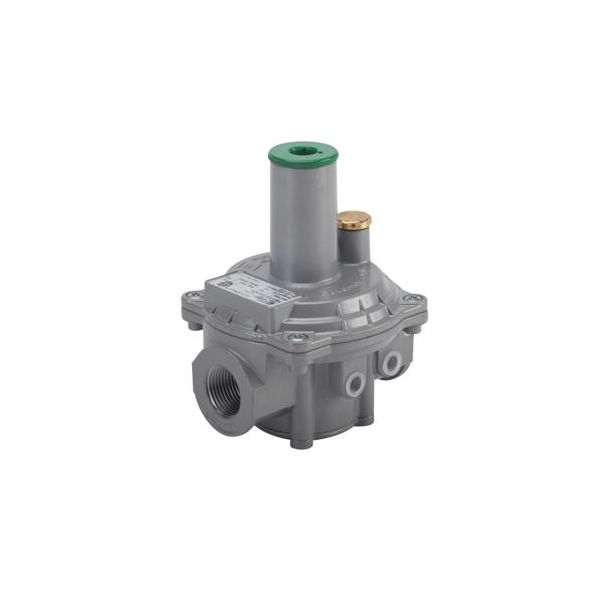

Fiorentini 31152-3BP 1" Balanced Valve 5" Diaphragm Full Lockup Internal Sensing 1/4" Vent Black

Special Price $201.26 Regular Price $223.40
In stock
SKU
31152-3BP
1" Balanced Valve 5" Diaphragm Full Lockup Internal Sensing 1/4" Vent Black Spri
Manufacturer:

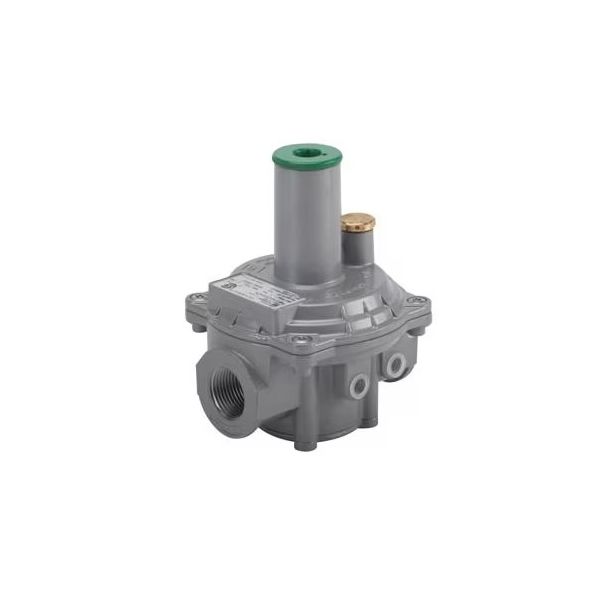

https://www.partshnc.com/media/catalog/product/3/1/31152-3bp.jpg

PRODUCT OVERVIEW:
Designed for pressure regulation in suitable gas control systems,The Fiorentini 31152-3BP is an OEM balanced-valve gas pressure regulator designed for precise downstream pressure control in commercial and industrial gas piping systems. Outfitted with a high-sensitivity 5-inch diaphragm and internal sensing mechanisms, this Governor-series valve minimizes the disturbing effects of fluctuating inlet pressures.

PRESSURE REGULATION FUNCTION:
Mechanical control relies on an internal spring-loaded valve stem linked directly to a flexible 5-inch rubber diaphragm. This layout uses an integrated balancing mechanism that generates an equal and opposite force to neutralize incoming high-pressure energy, ensuring steady modulation across variable flow demands.

FULL LOCKUP AND INTERNAL SENSING:
The seating architecture triggers a bubble-tight structural cutoff the moment downstream appliance burners shut off, preventing pressure creep. All monitoring is performed directly inside the valve body casing, eliminating the space and labor required to pipe an external downstream control line.

REPLACEMENT GUIDELINES:
Replace the Fiorentini 31152-3BP Balanced Valve if it fails to regulate pressure properly, cannot achieve shutoff, exhibits leakage, or shows signs of diaphragm or body damage. Match the replacement to the original part number, inch connection, inch diaphragm, full-lockup function, internal sensing configuration, inch vent, and intended gas application. Isolate the gas supply and follow applicable safety procedures before servicing. Installation and adjustment should be performed by a qualified gas-system technician.

COMMON FAILURE SYMPTOMS:

  • Unstable or incorrect outlet pressure.
  • Failure to shut off when downstream demand stops.
  • Gas leakage around the valve body or connections.
  • Diaphragm deterioration or damage.
  • Restricted or obstructed vent opening.
  • Pressure fluctuations during changing flow demand.

EQUIPMENT COMPATIBILITY:
The Fiorentini 31152-3BP OEM Balanced Valve features a 1-inch connection, a 5-inch diaphragm, full-lockup operation, internal pressure sensing, and a 1/4-inch vent. Verify the required gas application, connection dimensions, pressure regulation requirements, sensing configuration, and vent arrangement to ensure suitability for the intended equipment.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Fiorentini
Part Number: 31152-3BP
Product Type: Balanced Gas Valve / Pressure Regulator
Physical Specifications:
Nominal Size: 1 Inch
Diaphragm Diameter: 5 Inches
Vent Size: 1/4 Inch
Valve Operation & Control:
Sensing Type: Internal Sensing
Lockup Type: Full Lockup
Color: Black

Write Your Own Review
You're reviewing:Fiorentini 31152-3BP 1" Balanced Valve 5" Diaphragm Full Lockup Internal Sensing 1/4" Vent Black
Your Rating
Customer Questions
What indicates that this regulator needs immediate replacement rather than adjustment?

A continuous odor or raw gas leak emanating from the 1/4-inch atmospheric vent port confirms the internal 5-inch rubber diaphragm has ruptured, requiring a total assembly replacement.

Why is an upstream piping purge required before installing this valve?

Gas line debris, welding slag, or pipe tape can lodge in the high-sensitivity balanced seat, preventing a complete mechanical lockup and causing downstream pressure creep.

Does this regulator require an external vent line to the outdoors?

Depending on local fuel gas codes, indoor installations typically require piping the 1/4-inch vent port to a safe outdoor location to prevent gas accumulation in case of a diaphragm failure.

Can this unit be used for both Natural Gas and Propane (LPG) service?

Yes, provided the incoming supply pressures and the factory-installed spring range match the specific low-pressure delivery requirements of the downstream appliance.
