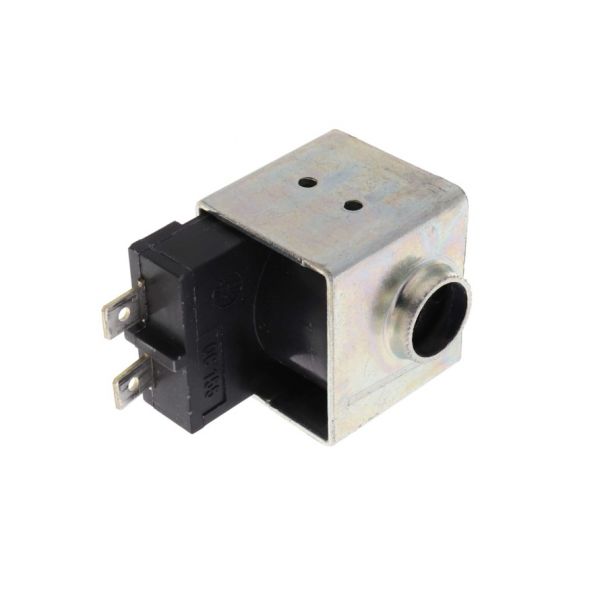

main product photo

Sporlan Controls 310910 Top Spade Solenoid Coil Valve 24V MKC-1TS

Rating:
5 5 1
1  Review Add Your Review
Special Price $108.49 Regular Price $124.76
In stock
SKU
310910
The Sporlan Controls 310910 Top Spade Coil Solenoid Valve, model MKC-1TS is a 24V used in HVAC systems including refrigeration and air conditioning. This operates based on the conversion of electrical energy into linear motion to regulate the flow of fluid in the system. When energized an electromagnet is produced within the coil that opens or closes the valve to let in refrigerants or other fluids. As for the MKC-1TS, it is key assets to achieve high efficiency of HVAC systems. It is often used with compressors and expansion valves of different HVAC equipment to control temperature and pressure.
Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:

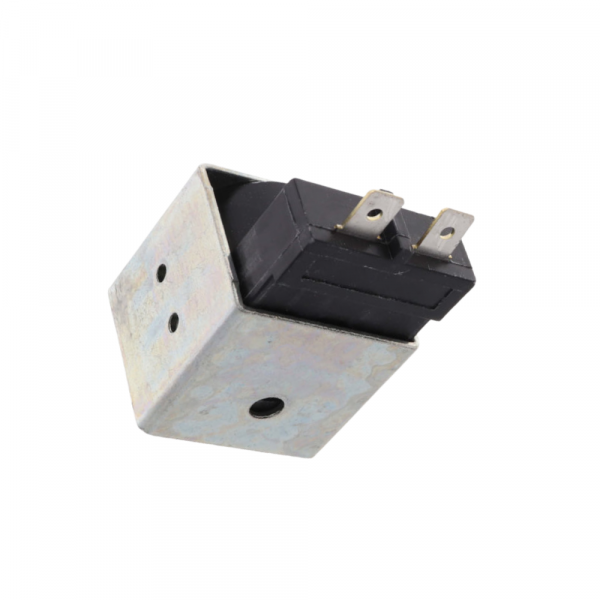

https://www.partshnc.com/media/catalog/product/3/1/310910_2.png

Specifications

  • Type: Top Spade Coil Solenoid Valve
  • Voltage: 24V
  • Model: MKC-1TS

PRODUCT OVERVIEW:
Functioning as the electrical magnet component for solenoid valve assemblies, the Sporlan Controls 310910 Top Spade Solenoid Coil Valve 24V MKC-1TS OEM coil converts electrical energy into a magnetic field upon receiving power. Operating on a 24V power supply and featuring a top spade electrical connection, this MKC-1TS series coil installs onto a compatible valve assembly. When energized by system controls, the unit produces the magnetic pull necessary to shift the internal valve stem.

ELECTROMAGNETIC FIELD GENERATION:
Magnetic actuation begins when electrical current passes through the coil windings, creating an electromagnetic field within the coil assembly. This generated field provides the force needed to influence the associated solenoid valve mechanism and produce its intended movement. When electrical energization stops, the magnetic field dissipates, allowing the valve mechanism to return according to the design of the connected valve assembly.

CONTROL CIRCUIT INTEGRATION:
Within the overall system, this component serves as the electrical interface between system controls and the valve assembly via top spade terminal connectors. Operating on a 24V control circuit, the coil allows remote relays or control outputs to energize the coil. This setup enables automated electrical switching of the valve position through programmed control signals.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the solenoid coil no longer generates the electromagnetic force required to actuate the associated valve mechanism or when physical damage affects its intended operation. Selection should be based on the existing valve assembly and confirmed using the 310910 part number, MKC-1TS configuration, electrical requirement, and top spade arrangement.

Common Failure Symptoms:

  • Complete loss of magnetic pull when power is supplied.
  • Visible thermal discoloration, melting, or cracking on the plastic housing exterior.
  • Damaged, loose, or burnt top spade connection terminals.
  • High electrical resistance or open-circuit readings across the 24V terminals.

EQUIPMENT COMPATIBILITY:
The Sporlan Controls 310910 Top Spade Solenoid Coil Valve 24V MKC-1TS OEM component applies to specific fluid control and system assemblies produced by the manufacturer. Before purchasing, verify that the replacement part matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, series designation, connection style, and operating voltage.

Technical Specifications:
Product identification:
Brand: Sporlan Controls
Part Number: 310910
Series: MKC-1TS
Product Type: Solenoid Coil Valve
Physical specifications:
Connection Style: Top Spade
Electrical specifications:
Voltage: 24V

Reviews 1
Write Your Own Review
You're reviewing:Sporlan Controls 310910 Top Spade Solenoid Coil Valve 24V MKC-1TS
Your Rating
Product Questions (6)
Customer Questions
What maintenance is required for the Sporlan Controls 310910 Top Spade Solenoid Coil Valve?

Regularly inspect the coil wiring and ensure a stable supply to prevent overheating. Clean electrical terminals and check for corrosion or loose connections. Verify proper mounting and alignment. Always isolate power before servicing to ensure safety.

What are common issues with the Sporlan Controls 310910 Top Spade Solenoid Coil Valve?

  • Coil overheating due to voltage fluctuation or poor supply stability.
  • Electrical connection failure or loose spade terminals causing intermittent contact.
  • Valve not actuating or sticking due to debris or internal wear.
  • Insufficient refrigeration flow or inconsistent operation affecting system performance.

How can the Sporlan Controls 310910 be distinguished from other Sporlan solenoid coils?

The 310910 part number and MKC-1TS designation distinguish this coil from other Sporlan solenoid coil models.

What does the top spade designation indicate on the Sporlan Controls 310910?

The top spade designation identifies the coil's electrical connection arrangement and helps distinguish it from coils using different connection configurations.

What information should be matched when identifying the Sporlan Controls 310910?

The part number, MKC-1TS designation, connection configuration, and electrical requirement provide the primary identification details for confirming this specific coil.

Is the Sporlan Controls 310910 a complete solenoid valve assembly?

No. The 310910 is a solenoid coil component intended to work with a compatible Sporlan valve assembly rather than representing the complete valve assembly.

Installation Steps

Step 1: Disconnect power supply and depressurize the refrigeration or HVAC system to prevent shock or refrigerant release.

Step 2: Remove the existing solenoid coil and inspect valve stem for damage or debris.

Step 3: Align the new coil onto valve top spade terminals and secure firmly in place.

Step 4: Connect wiring as per diagram, ensuring proper insulation and tight electrical connections.

Step 5: Restore power, test valve operation, and check for leaks or overheating; ensure better operation.
