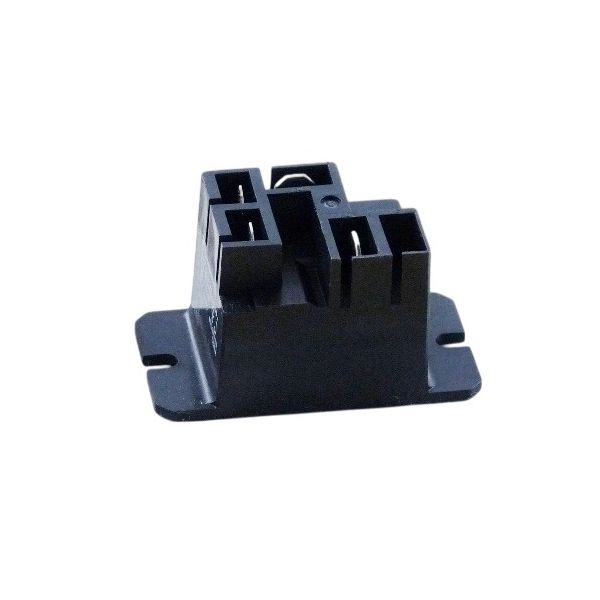

main product photo

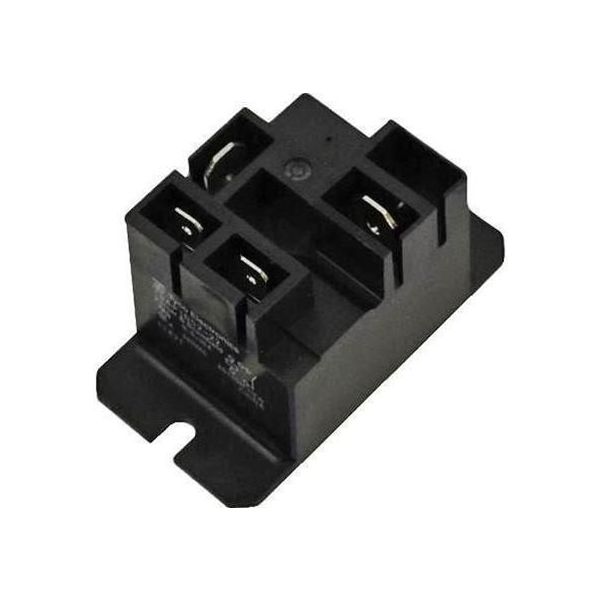

Amana-Goodman 22307801 Heat Relay 30A 240 VAC

Be the first to review this product
Special Price $20.64 Regular Price $26.84
In stock
SKU
22307801
The Amana-Goodman 22307801 Heat Relay is an electromechanical switching component, 30A 240 VAC, which is used to regulate electric heating coils in an HVAC system. The thermostat opens and closes its contacts when it requires heat or when it does not need heat. It is in the air handlers, heat pumps or furnaces and is linked to control boards and thermostats to control heating stages. This relay offers switching under load, allowing the regulation of temperature output and allowing consistent operation of residential and light commercial heating equipment.
Add to Wish List
HVAC Controls & Electrical, Relays,
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/22307801_1.jpg
Manufacturer Name: Amana-Goodman
Product Number: 22307801
OEM Part Number: 22307801
Product Description: 30A 240Vac Heat Relay
Weight:0.08lbs/36.29g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Amana-Goodman 22307801 Heat Relay 30A 240 VAC
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Amana-Goodman 22307801 Heat Relay?

Regularly inspect relay contacts for damage or pitting and ensure secure electrical connections. Clean dust from terminals and housing to maintain conductivity and prevent overheating, and always isolate power before servicing for safety.

What are common issues with the Amana-Goodman 22307801 Heat Relay?

  • Contacts wear out causing switching failure.
  • Coil overheating or burnout from voltage issues.
  • Loose wiring leading to intermittent operation.
  • Dust buildup causing Low relay response.

Installation Steps

Step 1: Turn off power at breaker and confirm zero voltage at relay terminals.

Step 2: Remove access cover to reach control compartment.

Step 3: Label and disconnect existing relay wiring carefully.

Step 4: Remove faulty relay and mount new relay securely in same position.

Step 5: Reconnect wiring to matching terminals as per diagram.

Step 6: Refit cover and restore power.
