The Warrick-Gems Sensors & Controls 26MC1A0 11 Pin LWCO (Low Water Cutoff) is a safety device crucial for steam boilers and hydronic heating systems. It utilizes electrical conductivity to monitor water levels. In normal operation, water surrounds the probes within the LWCO, allowing electricity to flow through a 26K Ohm resistor. When water dips below a safe level, the probes are exposed, interrupting the current flow. This triggers the boiler to shut down, preventing overheating and potential damage. Designed for 120V systems, the 26MC1A0 features a 10 Amp current rating and functions within a temperature range of -40°F to 150°F. This vital safety component ensures your boiler operation remains within safe parameters.
26MC1A0 Warrick-Gems Sensors & Controls Low Water Cut-Off
A low-water cutoff control for boiler protection is the Warrick-Gems Sensors & Controls part number 26MC1A0. It is a member of the conductivity-based liquid level control 26M series. A conductivity-based liquid level control utilized for fluid level monitoring and maintenance in a variety of industrial and commercial applications is the Warrick-Gems Sensors & Controls 26MC1A0. A conductivity-based low-water cutoff (LWCO) made to prevent boilers from operating in dry situations is the Warrick-Gems Sensors & Controls 26Mc1A0. For boiler LWCOs, it satisfies CSD1 criteria and offers accurate and dependable level sensing. A conductivity-based liquid level control utilized for fluid level monitoring and maintenance in a variety of industrial and commercial applications is the Warrick-Gems Sensors & Controls 26MC1A0.
Key features:
Conductivity-Based Sensing:
Utilizes conductivity measurement for reliable liquid level detection in various conductive fluids.
Offers wider compatibility compared to point-level switches, making it suitable for diverse applications.
Plug-in Module Design:
Simplifies installation and replacement, minimizing downtime during maintenance.
Enables easy integration into existing control systems.
Function:
Low-water cutoff control for boiler protection.
Prevents overheating and damage caused by low water conditions.
Mode of Operation:
Direct conductivity-based measurement (conducts electricity through water).
Sensitivity:
26 K ohms - detects even slight changes in water level.
Control Style:

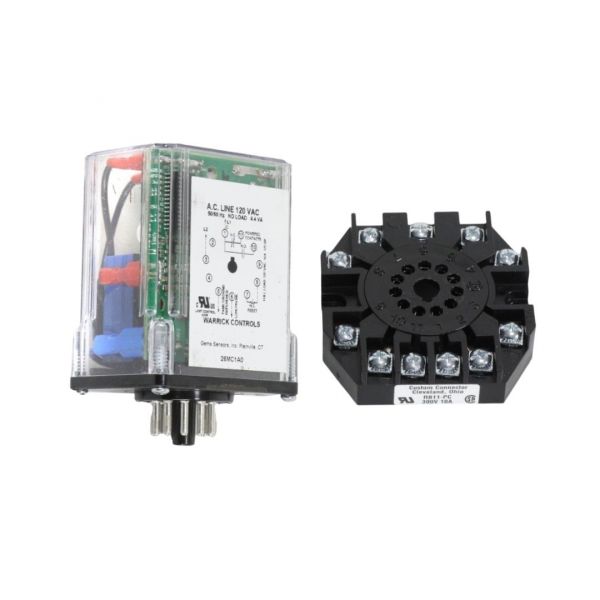

Plug-in module with 11-pin octal socket for easy installation and replacement.
Contacts:
Powered contacts with one normally open (NO) and one normally closed (NC) allow for a variety of control possibilities.
10 Amp resistive, 1/3 horsepower rating - suitable for various boiler types.
Power Supply:
120 VAC primary voltage with 12 VAC secondary voltage.
Additional Features:
Optional manual reset button for greater control.
Optional power outage feature ensures boiler safety even during power loss.
LED monitoring for low voltage indication.
Non-intrinsically safe - not suitable for hazardous environments.
Applications:
Ideal for boiler low-water cutoff applications.
Can be used for low-water level detection and control in other conductive liquids.
Durable Construction:
Built to withstand demanding industrial environments, ensuring long-lasting performance.
Safety Certifications:
UL 353 certified for safe use in boiler applications (consult compatibility details).
Meets industry standards for reliable operation.
Remember:
These are general key features. For information unique to your application and compatibility, consult the manufacturer's datasheet.
Signs of faulty Low Water Cut-Off 26MC1A0 Warrick-Gems Sensors & Controls:
Boiler behavior:
Boiler overheating: This is the most critical sign, indicating the sensor failed to trigger the cutoff before the water level fell dangerously low.
Frequent cycling: The boiler repeatedly turning on and off could be due to false readings from the sensor.
Water level indicator inconsistencies: Discrepancies between the 26MC1A0's readings and other water level indicators suggest sensor malfunction.
Visual and audible signs:
LED malfunction: A constantly lit or unlit LED, despite water level changes, could indicate a faulty circuit.
Physical damage: Cracks, corrosion, or loose connections on the sensor body might affect its performance.
Buzzing or humming: Unusual sounds coming from the sensor could point to internal electrical issues.
Other possible indicators:
Frequent system alarms related to low water level: Even if the boiler didn't overheat, repeated low-water alarms suggest the sensor might be triggering falsely.
Burning smell: This could indicate overheating due to sensor failure, requiring immediate attention.
Unusual readings on diagnostic tools: If available, diagnostic tools connected to the boiler might reveal abnormal readings from the 26MC1A0.
Remember:
These are just potential signs, and a faulty 26MC1A0 might not exhibit all of them.
If you suspect a problem, immediately shut down the boiler and consult a qualified technician to diagnose and fix the issue.
Do not attempt to repair the sensor yourself, as improper handling can worsen the problem and pose safety risks.
