Warrick-Gems Sensors & Controls 26MB1A0 11-Pin LWCO Liquid Level Control 10K 120V is a component that is used to measure and control the level of liquid in HVAC Systems and boiler applications by offering a low water cutoff. It is applied in residential boilers, hydronic heaters, and other such equipment where the fluid level is required as a necessary safety precaution. It is used in the system to detect the level changes and regulate the related circuits, which is a necessary component that assists in controlling safe operation and avoiding damage in different conditions.

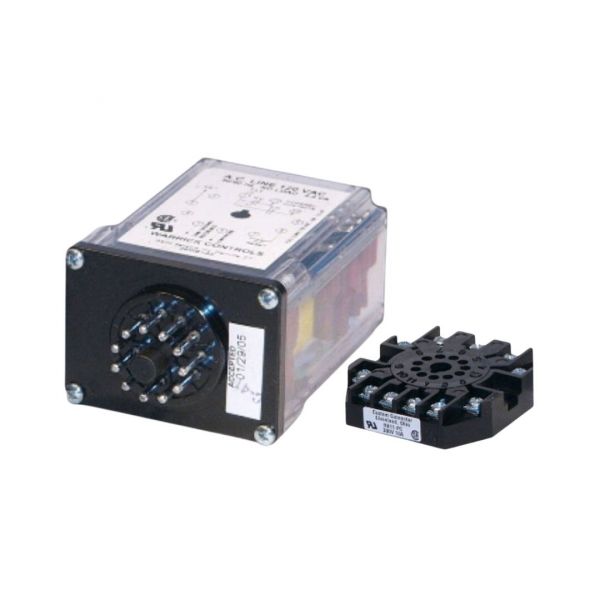

Warrick-Gems Sensors & Controls 26MB1A0 low-water cut-off control
The Warrick-Gems Sensors & Controls 26MB1A0 is a versatile low-water cut-off control designed to protect boilers and other equipment from dry-firing and damage caused by low water levels. It combines reliable conductivity-based detection with user-friendly features and flexible configuration options. A plug-in module called the 26MB1A0 is made to safeguard boilers and other appliances against low water cutoffs. It has powered contacts and satisfies CSD1 criteria for boiler low-water cutoff. For boiler applications, Warrick-Gems Sensors & Controls 26MB1A0 is a plug-in low-water cutoff module. It has many benefits over the 26B1A0 model and satisfies the CSD1 standards for boiler low-water cutoff. The plug-in module 26MB1A0 is made especially for boilers and is intended to protect against low water cutoff. It complies with the boiler low-water cutoff standards of CSD1. The 26MB1A0 has powered connections for increased reliability, in contrast to the 26B1A0.
Key features:
Reliable Low-Water Cut-Off Protection:
Prevents boiler dry-firing and protects equipment from damage caused by low water levels.
Ensures safety and minimizes costly repairs in various industrial applications.
Direct Operation and User-Friendly Design:
No moving parts for minimal maintenance and extended lifespan.
10A relay provides direct control of alarms, pumps, or valves for immediate action.
Adjustable settings customize activation levels, time delays, and control actions.
LED monitoring offers a clear visual indication of water level and operational status.
Plug-in module design simplifies installation and removal for maintenance.
11-pin socket connection ensures secure and convenient wiring for diverse control systems.
Versatility and Customization:
Adapts to various applications with adjustable settings and control options.
Optional features like dirty electrode detection, manual reset button, and power outage feature enhance functionality.
Applications:
Boilers of all types
Industrial heating systems
Hot water tanks
Any application requiring reliable low-water level protection for boilers
Additional Benefits:
Reliable performance with UL listing and compliance with safety standards.
Secure and convenient wiring with an 11-pin socket connection.
User-friendly design with LED monitoring and optional features for improved user interaction.
Signs of faulty low-water cut-off control 26MB1A0 Warrick-Gems Sensors & Controls:
Abnormal Alarm/Shutdown Behavior:
False alarms: The control triggers an alarm or shuts down the equipment even when the water level is normal. This could indicate faulty electrodes, a broken wire, a malfunction in the control unit, or issues with the relay.
No alarms or shutdowns during low water conditions: The control fails to respond to a low water level, leaving the equipment unprotected. This could be due to damaged electrodes, a broken circuit, a problem with the power supply, or malfunctioning of the relay.
Erratic behavior: The control displays unexpected behavior like flickering LEDs, inconsistent readings, frequent resets, or unexpected relay activation/deactivation. This could indicate internal malfunctions or component issues.
Physical Damage:
Cracks, corrosion, or burns on the control unit, electrodes, or relay. Exposure to severe heat, strong chemicals, or physical impact could be the cause of this.
Loose or damaged wiring connections.
Operational Issues:
The control doesn't automatically reset after a power outage. This can indicate an issue with the feature that resets the power outage.
Difficulty adjusting the water level settings.
The LEDs don't provide clear or accurate information about the water level.
Optional features like dirty electrode detection or manual reset button malfunction.
Additional Considerations:
Age of the unit: While robust, even the best equipment eventually wears out. Consider replacing an aged unit if problems arise.
Environmental factors: Exposure to extreme temperatures, harsh chemicals, or physical impact can affect the performance of the control.
Remember:
Prioritize safety when dealing with potential equipment malfunctions. If you suspect a problem with your 26MB1A0, immediately shut down the equipment to prevent damage.
Consult the user manual for troubleshooting steps and specific instructions for your application.
Contact a qualified technician or Warrick-Gems Sensors & Controls for assistance if needed.
