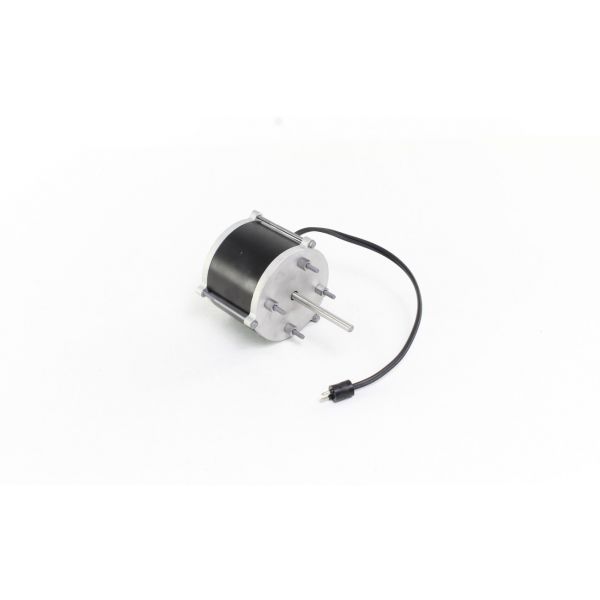

Heatcraft Refrigeration 25317801S 1/15 HP Evaporator Motor 1625 RPM 120V

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $595.43 Regular Price $660.93
In stock
SKU
25317801S

The Heatcraft Refrigeration 25317801S Motor is a workhorse designed to efficiently circulate air within residential refrigerators and freezers. Operating on standard household current (120 volts), this motor boasts a horsepower rating of 1/15 HP, providing enough power to move air consistently without consuming excessive energy. It spins at a constant speed of 1625 revolutions per minute (RPM), ensuring reliable airflow circulation within the appliance. This motor finds primary use as an evaporator motor within refrigerators and freezers. The evaporator is the component responsible for absorbing heat from the interior of the appliance. The 25317801S motor drives a fan blade, which pulls air across the evaporator coils. As the air absorbs heat from the coils, it cools down. This cool air is then circulated throughout the refrigerator or freezer cavity, maintaining the desired low temperature for food storage. Replacing a worn-out 25317801S motor can significantly improve the performance of your refrigerator or freezer. A properly functioning motor ensures efficient air circulation at a constant speed. This translates to improved temperature control within the appliance, keeping your food fresh and safe. The weight of 4.67 lbs makes it manageable for handling and installation within compatible refrigerators and freezers. Be sure to consult your specific appliance's manual for compatibility information before ordering.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/5/25317801s-heatcraft-refrigeration_partshnc.jpg

Specifications

  • Voltage/Electrical: 120V
  • RPM (Revolutions Per Minute): 1625RPM
  • Horsepower(HP): 1/15Hp
  • Weight: 4.67lbs

Refrigeration systems use evaporator fans to circulate air through the cooling section. The Heatcraft Refrigeration 25317801S is an evaporator motor that provides the rotational drive needed to operate the connected fan and support air circulation within the refrigeration equipment.

Motor Electrical and Mechanical Operation:
The Heatcraft Refrigeration 25317801S operates on a 120V electrical supply, while its 1/15 HP rating identifies its specified power capacity for driving the evaporator fan. These specifications help determine whether the motor's electrical requirements and power rating match the refrigeration equipment.

Evaporator Fan Drive and Air Circulation:
The motor's rated speed of 1625 RPM describes how fast its shaft rotates to drive the evaporator fan. This rotational speed supports the fan's movement of air across the evaporator coil, helping circulate cooled air through the refrigeration compartment.

Replacement Guidelines:
Replacement may be necessary when a confirmed motor fault prevents the evaporator fan from operating as intended. Before ordering, verify the existing part number against the refrigeration equipment's parts documentation.

Common Failure Symptoms:

  • Evaporator fan fails to operate
  • Intermittent motor operation
  • Unusual operating noise
  • Excessive vibration
  • Reduced airflow

Equipment Compatibility:
The Heatcraft Refrigeration 25317801S is identified as an evaporator motor for refrigeration applications. Confirm the existing part number and the equipment's motor requirements against the manufacturer's parts documentation before ordering, as specific compatible models have not been provided.

Technical Specifications:
Product Identification:
Brand: Heatcraft Refrigeration
Part Number: 25317801S
Product Type: Evaporator Motor

Electrical:
Horsepower: 1/15 HP
Voltage: 120V

Mechanical:
Speed: 1625 RPM

Reviews 5
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 25317801S 1/15 HP Evaporator Motor 1625 RPM 120V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 25317801S Motor?

Regularly inspect the motor for dust, debris, or loose wiring. Clean the exterior, check for vibration or unusual noise, and ensure proper mounting. Proper maintenance ensures efficient operation, prevents overheating, and maintains reliable performance.

What are common issues with the Heatcraft Refrigeration 25317801S Motor?

  • Overheating or tripped breakers.
  • Excessive vibration or noise.
  • Worn or damaged bearings.
  • Loose or faulty electrical connections.

What does the Heatcraft Refrigeration 25317801S Evaporator Motor do?

It provides the rotational drive needed to operate an evaporator fan in refrigeration equipment.

How does the 25317801S support evaporator airflow?

The motor drives the connected fan, allowing air to circulate across the evaporator coil and through the refrigeration compartment.

Why is evaporator fan operation important in refrigeration equipment?

Air circulation across the evaporator coil supports heat transfer and helps distribute cooled air within the compartment.

Where is the 25317801S used?

It is identified as an evaporator motor for refrigeration applications. Confirm the specific equipment application through the manufacturer's parts documentation.

What should be checked before replacing the 25317801S?

Verify the part number 25317801S, required motor configuration, and equipment parts documentation to confirm that the motor is suitable for the application.

Installation Steps

Step1: Disconnect power and ensure the system is fully de-energized before starting.

Step2: Remove the existing motor from the assembly and inspect mounts.

Step3: Install the new motor with proper alignment and secure mounting hardware.

Step4: Reconnect wiring per the motor schematic and tighten connections.

Step5: Restore power and test motor operation while checking for noise or vibration.
