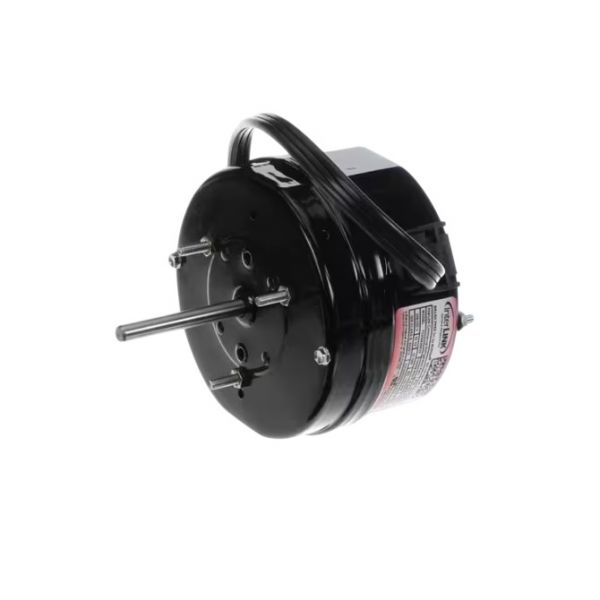

Heatcraft Refrigeration 25312601S 1/20 HP 2-Speed Motor 208-230V 1-Phase 60Hz

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $319.03 Regular Price $354.13
In stock
SKU
25312601S
Heatcraft Refrigeration 25312601S 2-speed motor is a high-quality commercial and industrial HVAC system application. Operates at 208-230V, this motor performs in refrigeration systems with efficient airflow and temperature control. It is used in walk-in coolers, freezers, and evaporator coils, it provides optimum cooling and energy efficiency. It has dual-speed functionality, adapting to changing cooling demands to reduce power consumption and system longevity. This efficient and durable motor assures stable refrigeration performance and food preservation. It provides the sorts of reliability and functionality that make it the better solution for those commercial that need dependably reliable cooling.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/5/25312601s_1.jpg

Specifications

  • Type: Motor: Number of Speeds: 2
  • Voltage: 208-230V

Motors used in refrigeration equipment provide the mechanical rotation required by connected components. The Heatcraft Refrigeration 25312601S is a 2-speed motor that provides rotational drive at two defined operating speeds. Its two-speed configuration allows the connected component to operate at the speed required by the application.

Two-Speed Motor Operation:
A 2-speed motor provides two defined shaft-speed settings rather than a continuously adjustable speed range. For this motor, the available speeds are 1550 RPM and 850 RPM, allowing the connected component to operate at either specified rotational rate. The two operating points provide different rates of mechanical rotation while retaining the motor's defined speed configuration.

Rotation and Mechanical Output:
The motor provides mechanical rotation to the connected component with a specified CWSE rotation. The rotation direction determines how the shaft movement is delivered to the driven component, while the selected speed determines its rate of mechanical rotation. The required rotation and speed configuration therefore need to correspond with the operating requirements of the connected refrigeration equipment.

Replacement Guidelines:
Replacement may be appropriate when the existing motor no longer provides the required mechanical rotation, operates inconsistently, develops abnormal noise or vibration, or shows physical damage. For Heatcraft Refrigeration 25312601S, compare the existing part number and applicable motor requirements with the equipment requirements when selecting a corresponding replacement.

Common Failure Symptoms:

  • The motor fails to start when operation is required.
  • The motor stops unexpectedly during operation.
  • Irregular shaft rotation develops while the motor is running.
  • Unusual operating noise develops.
  • Noticeable vibration occurs during operation.

Equipment Compatibility:
The Heatcraft Refrigeration 25312601S is intended to be matched with the requirements of the applicable refrigeration equipment. Before purchasing, confirm the existing motor part number, equipment model or application, required speed configuration, rotation, and applicable electrical requirements.

Technical Specifications:
Part Identification:
Brand: Heatcraft Refrigeration
Part Number: 25312601S
Product Type: 2-Speed Motor

Electrical:
Voltage: 208-230V
Frequency: 60 Hz
Phase: 1-Phase
Horsepower: 1/20 HP

Mechanical:
Speed: 1550/850 RPM
Speed Configuration: 2-Speed
Rotation: CWSE

Reviews 3
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 25312601S 1/20 HP 2-Speed Motor 208-230V 1-Phase 60Hz
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 25312601S Motor?

Inspect electrical connections and mounting bolts regularly to ensure secure operation. Clean dust and debris from the motor housing to prevent overheating. Check bearings and lubrication for smooth performance. Disconnect power before servicing to avoid electrical hazards.

What are common issues with the Heatcraft Refrigeration 25312601S Motor?

  • Overheating during operation.
  • Unusual noises or vibrations.
  • Intermittent or failed motor operation.
  • Loose or corroded wiring connections affecting performance.

What identifies the Heatcraft Refrigeration 25312601S?

The 25312601S is identified by the Heatcraft Refrigeration brand, part number, and 2-speed motor product type.

How does a 2-speed motor differ from a single-speed motor?

A 2-speed motor provides two defined operating-speed settings, while a single-speed motor operates at one specified speed.

Why is the motor's speed configuration important to the connected application?

The motor's speed configuration determines the available rates of mechanical rotation, so the connected application should be designed for the required operating-speed arrangement.

How does the motor provide mechanical drive to the connected component?

The motor converts electrical input into shaft rotation, providing the mechanical movement required by the connected component.

What should be checked before purchasing the Heatcraft Refrigeration 25312601S?

Confirm the 25312601S part number, motor application, required speed configuration, rotation, electrical requirements, and other applicable equipment characteristics before purchasing.

Installation Steps

Step1: Turn off power to the unit at the breaker and confirm it’s off.

Step2: Remove the access panel and detach the fan blade or blower wheel from the old motor shaft.

Step3: Disconnect wiring harness and label connections before removing the old motor.

Step4: Mount the new motor securely to the bracket and align the fan blade or wheel.

Step5: Reconnect wiring to matching terminals and ensure proper grounding.

Step6: Replace the panel, restore power, and test operation at both speeds.
