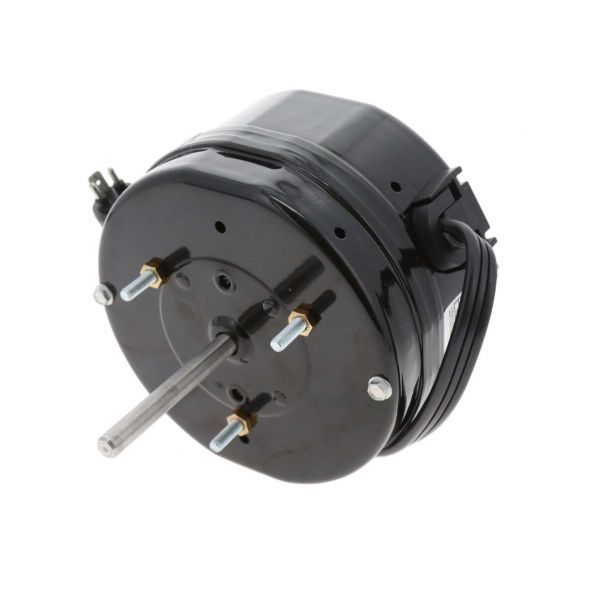

Heatcraft Refrigeration 25312501S 1/20 HP Motor 850-1550 RPM 120V

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $258.38 Regular Price $286.80
In stock
SKU
25312501S
Heatcraft Refrigeration 25312501S 1/20HP Motor is a versatile, energy-efficient for HVAC system and refrigeration system. It is a 120V powered, 850/1550 RPM speed motor that operates reliably for many applications. This use of this motor is in refrigeration units, air conditioning systems, and fan motors. It provides dual-speed functionality to allow flexible operation and energy savings based on system needs. Its durable construction reliability, with less maintenance and longer equipment durability. It is an essential component of optimal system performance in modern HVAC systems.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/5/25312501s-heatcraft-refrigeration_partshnc.jpg

Specifications

  • Type: Motor
  • Horsepower: 1/20HP
  • Speed: 850/1550 RPM
  • Voltage: 120V

Refrigeration equipment uses motors to provide the mechanical rotation required by connected components. The Heatcraft Refrigeration 25312501S Motor converts electrical energy into rotational movement for the connected component. This mechanical drive supports the component's intended movement within the associated refrigeration equipment during operation.

Electrical Input and Motor Operation:
The motor uses electrical input to generate mechanical rotation through its internal operating components. The 120V supply powers this process, while the motor's shaft delivers the resulting rotational output to the connected component.

Shaft Drive and Connected Refrigeration Component:
The motor transfers its mechanical output through the shaft to the connected refrigeration component. This shaft-driven arrangement allows the attached component to receive continuous rotational movement during operation.

Replacement Guidelines:
Replacement may be appropriate when the existing motor can no longer provide the required mechanical drive, develops irregular rotation, or shows signs of physical damage that prevent normal operation. For the Heatcraft Refrigeration 25312501S, replacement should be considered when the motor no longer provides the required movement for the connected component.

Common Failure Symptoms:

  • Motor fails to start.
  • Rotation becomes inconsistent.
  • Unusual sounds occur during operation.
  • Noticeable vibration develops during operation.
  • Motor stops operating unexpectedly.

Equipment Compatibility:
The Heatcraft Refrigeration 25312501S Motor should be selected for refrigeration equipment requiring the corresponding motor configuration. Before purchasing, confirm the existing motor's part number, 1/20 HP rating, 850–1550 RPM specification, 120V requirement, and other applicable equipment requirements.

Technical Specifications:
Part Identification:
Brand: Heatcraft Refrigeration
Part Number: 25312501S
Product Type: Motor

Electrical:
Voltage: 120V
Horsepower: 1/20 HP

Mechanical:
Speed: 850–1550 RPM

Reviews 5
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 25312501S 1/20 HP Motor 850-1550 RPM 120V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 25312501S Motor?

Regularly inspect the motor for dust and debris buildup, lubricate bearings as recommended, and ensure electrical connections are secure. Maintenance prevents overheating, reduces vibration, and improves efficiency. Always disconnect power before servicing for safety.

What are common issues with the Heatcraft Refrigeration 25312501S Motor?

  • Overheating due to blocked ventilation.
  • Motor failing to start due to electrical supply or winding issues.
  • Reduced fan performance caused by inconsistent motor speed.
  • Unusual noise or vibration due to internal wear or misalignment.

What type of component is the Heatcraft Refrigeration 25312501S?

The Heatcraft Refrigeration 25312501S is a motor used to provide mechanical rotation within a refrigeration assembly.

How does the Heatcraft Refrigeration 25312501S produce mechanical output?

The motor converts electrical input into shaft rotation, creating the mechanical movement required by the connected component.

What does the motor's 120V rating indicate?

The 120V rating identifies the electrical supply associated with the motor and should correspond with the requirements of the intended refrigeration application.

What does the 850–1550 RPM range represent?

The 850–1550 RPM range represents the motor's specified rotational-speed range during operation.

What should I check before selecting the 25312501S?

Compare the existing 25312501S part number, motor configuration, electrical requirements, and applicable refrigeration equipment requirements before ordering.

Installation Steps

Step1: Turn off power to the unit at the breaker and confirm it’s off.

Step2: Remove the access panel and detach the fan blade or blower wheel from the old motor shaft.

Step3: Disconnect and label wiring before removing the old motor from its mount.

Step4: Mount the new motor securely and align the shaft with the driven component.

Step5: Reconnect wiring to matching terminals and ensure proper grounding.

Step6: Reinstall fan blade or wheel, replace the panel, restore power, and test operation.
