main product photo

Daikin-McQuay 2523383 Pcb Control Board

Rating:
5 5 3
3  Reviews Add Your Review
Special Price $644.76 Regular Price $715.68
In stock
SKU
2523383

The Daikin-McQuay 2523383 PCB Control Board serves as the central nervous system for your compatible HVAC system. This circuit board is the silent conductor that masterfully controls the functions of your fan, compressor, evaporator coil, and other essential parts. It guarantees that your system operates effectively, providing optimal cooling performance and upholding your intended comfort levels by monitoring temperature, pressure, and airflow. Consider it as the supreme leader, directing and modifying parameters to attain accurate temperature regulation. It's like having a dedicated climate specialist adjust your system on a regular basis to optimize comfort and save energy use. Because it is specifically made for Daikin-McQuay HVAC equipment, this control board ensures excellent performance and smooth integration.

Add to Wish List
Control Boards, HVAC Controls & Electrical
Manufacturer:

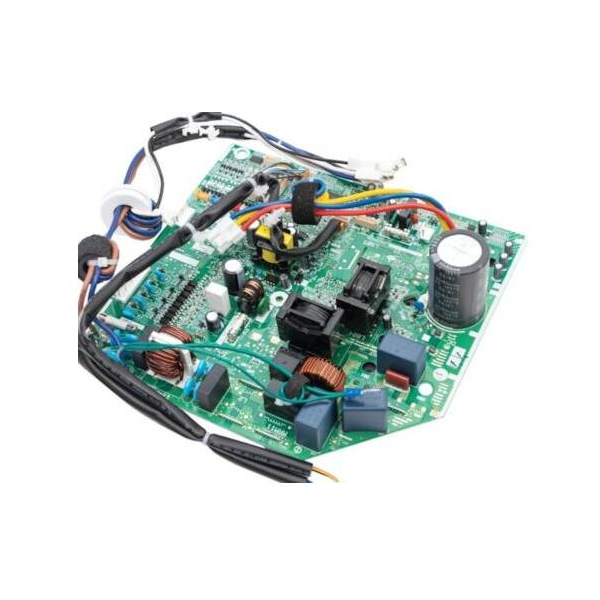

https://www.partshnc.com/media/catalog/product/2/5/2523383_daikin-mcquay_partshnc.jpg

PCB Control Board Daikin-McQuay 2523383

The Daikin-McQuay PCB Control Board is a crucial component of your Daikin-McQuay air conditioning system, serving as a replacement PCB (printed circuit board) control board. This advanced electronic board plays a vital role in the operation and performance of your AC unit, ensuring efficient cooling and a comfortable environment. PCB Control Board 2523383 For Air conditioners regulates the operation of the compressor, fan, evaporator coil, and other critical components, ensuring optimal cooling performance and maintaining desired temperatures. The board continuously monitors various parameters like temperature, pressure, and airflow, adjusting the system's operation for optimal efficiency and safe operation. The board includes built-in safety features that protect the AC unit from damage due to overheating, excessive pressure, or other potential issues. The PCB Control Board Daikin-McQuay 2523383 is compatible with specific Daikin-McQuay air conditioning models, including various rooftop units and package terminal air conditioners.

Key features:

  • Advanced microprocessor technology: Ensures precise control and efficient operation.
  • Durable construction: Built with high-quality components for long-lasting performance.
  • Easy installation: Designed for straightforward replacement with basic tools and knowledge.
  • Pre-programmed for most compatible systems: Requires minimal configuration.
  • Comprehensive diagnostics: Provides detailed information about system performance and potential issues.

Dimensions of PCB Control Board Daikin-McQuay 2523383 :

  • Length: 10.75 inches (273 mm)
  • Width: 4.25 inches (108 mm)
  • Height: 1.25 inches (32 mm)
  • Weight:3.45lbs/1564.89g

Signs of a Faulty 2523383 Daikin-McQuay PCB Control Board :

  • The AC unit is not turning on or off properly.
  • Uneven or inconsistent cooling.
  • Unusual noises are coming from the AC unit.
  • Error codes are displayed on the user interface.
  • Frequent system shutdowns.

Similar Models:

6026874, 6025137, 2523383, 6025139, 2523376

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

FAQs

Q: What are some safety precautions regarding the PCB Control Board 2523383 For Air conditioners?

  • Always consult the manual or a qualified technician for safe installation.
  • Dispose of the old board responsibly according to local regulations.
  • Consider replacing it if your AC unit is nearing its lifespan.

Q: How often should I replace the Daikin-McQuay PCB Control Board?

  • There's no set lifespan; it depends on usage and maintenance.
  • Replacing it promptly if faulty is crucial to avoid further damage.

Q: How can I maintain the 2523383 Daikin-McQuay PCB Control Board ?

  • Regular cleaning can extend its lifespan.
  • Refer to the manual or consult a technician for proper cleaning instructions.
Reviews 3
Write Your Own Review
You're reviewing:Daikin-McQuay 2523383 Pcb Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Daikin-McQuay 2523383 PCB Control Board?

Regularly inspect the PCB for dust, corrosion, or loose connections. Ensure proper grounding and avoid moisture exposure. Gently clean with a dry brush or compressed air, and always disconnect power before handling to prevent electric shock or damage.

What are common issues with the Daikin-McQuay 2523383 PCB Control Board?

  • Relays not activating.
  • Board not powering on.
  • Intermittent signal failures.
  • LED indicators not functioning.

Installation Steps

Step1: Turn off power to the HVAC system before starting.

Step2: Remove the access panel and label wiring connections on the old control board.

Step3: Disconnect all wires and carefully remove the old PCB control board.

Step4: Install the new PCB control board in the same position and secure it with screws.

Step5: Reconnect all wires to the corresponding terminals as labeled.

Step6: Restore power and test the system to ensure proper operation.
