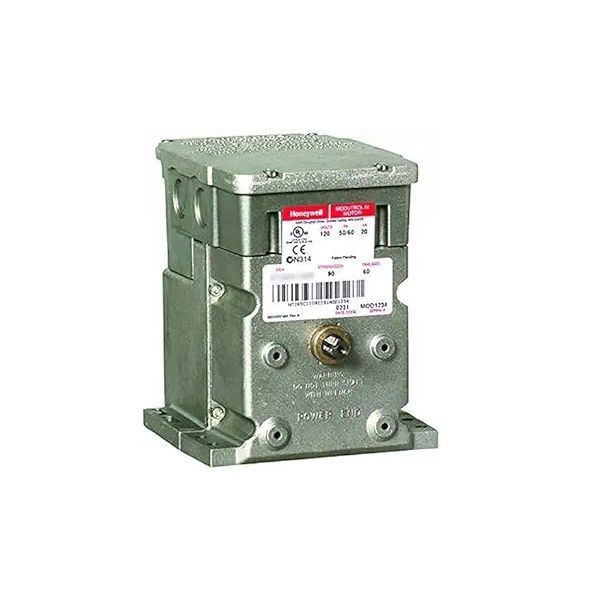

Honeywell M9164D1009 Proportional Modutrol IV Motor 24VAC

Special Price $918.96 Regular Price $1,020.05
In stock
SKU
M9164D1009

The Honeywell M9164D1009 is a 24-volt motor with adjustable time and stroke designed to improve the performance of Honeywell HVAC equipment. The two most important parameters that may be precisely controlled with this multipurpose motor are movement range and operating timing. The motor's settings allow you to precisely control when certain HVAC system functions occur. This can maximize comfort, increase efficiency, and possibly prolong the life of your equipment. In addition, the adjustable stroke feature provides customized control over the system's damper or valve action, guaranteeing ideal airflow and temperature regulation. Many brands of Honeywell HVAC equipment, such as zone valves, dampers, and air handlers, are compatible with the M9164D1009 motor.

https://www.partshnc.com/media/catalog/product/m/9/m9164d1009.jpg

Commercial HVAC systems use modulating motors to control the positioning of dampers and valves in response to control signals. The Honeywell M9164D1009 Proportional Modutrol IV Motor is designed for proportional control applications. It converts electrical control inputs into mechanical shaft movement to adjust the position of connected equipment. Its operation supports controlled airflow and fluid regulation in compatible HVAC systems.

PROPORTIONAL CONTROL AND POSITIONING:
A proportional actuator adjusts its output position in response to changes in the applied control signal. Unlike a two-position actuator, it can operate at intermediate positions to provide more controlled adjustment. The output shaft transfers this movement to the connected damper or valve mechanism. Accurate positioning helps the HVAC control system maintain the required operating conditions.

GEAR DRIVE AND MECHANICAL OUTPUT:
The motor uses a mechanical drive arrangement to transfer rotational movement to its output shaft. The shaft connects to the driven damper or valve mechanism and provides the movement required for position adjustment. Torque, shaft dimensions, and stroke range are important when matching the actuator to the equipment. The non-spring-return configuration identifies an actuator without a spring-driven return mechanism.

REPLACEMENT GUIDELINES:
Replace the M9164D1009 when testing confirms an electrical or mechanical fault that prevents accurate positioning. Before ordering a Honeywell Modutrol IV motor, compare the existing actuator part number and verify the control signal, supply voltage, torque, timing, stroke, mounting arrangement, and shaft configuration against the equipment documentation.

COMMON SIGNS OF FAILURE:

  • Actuator does not respond to the applied control signal.
  • Output shaft fails to move as commanded.
  • Positioning becomes inconsistent during modulation.
  • Movement becomes unusually slow or irregular.
  • Physical damage affects the housing, shaft, or connection points.

EQUIPMENT COMPATIBILITY:
To confirm whether the Honeywell M9164D1009 motor is compatible with your HVAC equipment, check the equipment documentation and existing actuator identification. Verify the 24VAC supply, proportional control requirements, torque rating, timing, stroke range, mounting arrangement, shaft dimensions, and connection configuration. Do not assume compatibility based only on the Modutrol IV product series.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Honeywell
Part Number: M9164D1009
Product Type: Proportional Modutrol IV Motor
Application: Modulating control
Electrical Specifications:
Voltage: 24V AC
Control Signal: Proportional
Terminals: Quick Connect
Mechanical Specifications:
Spring Return: Non-Spring Return
Torque: 35 Lb-In
Nominal Timing: 30–60 Seconds
Stroke: 90–160 Degrees
Factory Stroke Setting: 16 Degrees
Mounting: Foot Mounted
Shaft Type: Dual-Ended Square Shaft
Shaft Dimension: 0.375 Inch
Additional Specifications:
Junction Box: Integral
Weather Protection: NEMA 3

Write Your Own Review
You're reviewing:Honeywell M9164D1009 Proportional Modutrol IV Motor 24VAC
Your Rating
Customer Questions
What is the Honeywell M9164D1009 Modutrol IV motor used for?

It provides proportional mechanical positioning for compatible HVAC dampers and valves. This allows connected equipment to adjust airflow or fluid flow according to control requirements.

What is the difference between a proportional actuator and a two-position actuator?

A proportional actuator can adjust its output through intermediate positions in response to a control signal. A two-position actuator generally operates between designated positions, such as open and closed.

What does non-spring-return mean for the M9164D1009?

It means the actuator does not use a return spring to drive its output shaft to a default position. Its positioning behavior when power is interrupted should be confirmed using the manufacturer's documentation.

Why are the torque and stroke specifications important when selecting a replacement?

Torque determines the mechanical force available to move the connected equipment, while stroke identifies the actuator's output movement range. Both must match the requirements of the damper or valve assembly.

Can the M9164D1009 replace another Modutrol IV motor?

Not automatically. The replacement must also match the voltage, proportional control requirements, torque, timing, stroke, mounting, and shaft configuration specified for the equipment.
