Trane RLY1612 SPDT Relay Control 24V
Special Price $27.85 Regular Price $36.20
In stock
SKU
RLY1612

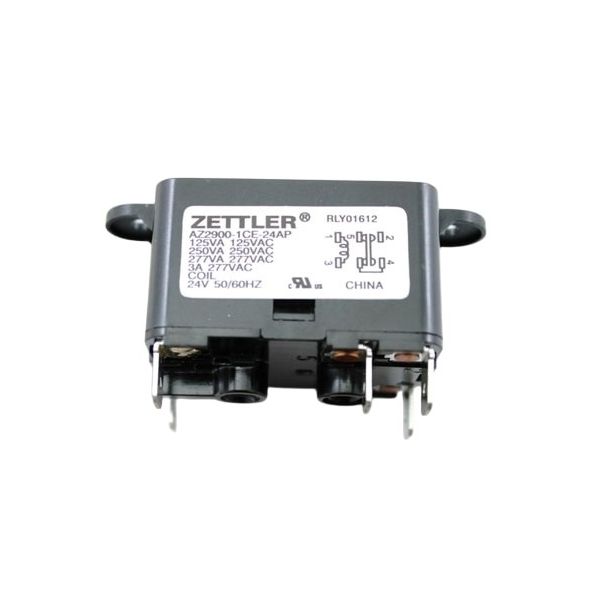

The Trane RLY1612 is a Control Relay that is a 24V Single Pole Double Throw control relay, is designed for use in Trane HVAC systems. It measures 3.1 inches in length, 1.3 inches in width and 1.52 inches in height to ensure it controls the electrical current in the system efficiently. This control relay uses the form C contact arrangement, in actuality it performs like a switch with two positions. If triggered by a 24V signal, its silver cadmium oxide contacts and phenolic case. This relay has a maximum switching voltage of 277V AC, and a current of 25A. The enhances system control and reliability since it offers a reliable and effective switching solution.
Manufacturer:
Specifications
- AC Contact Rating - Relay: 7FLA/42LRA at 277V AC
- Height: 1.52"
- Length: 3.1"
- Actual Width: 1.3"
- Current: 0.17 A
- Voltage: 24V
- Contact Configuration: 1 Form C, SPDT
- Current Rating: 25A
- Material: Silver Cadmium Oxide Contact, Phenolic Enclosure
- Mount: Bracket/Panel/Universal
- Mounting Type: BRACKET/PANEL/UNIVERSAL
- Number of Poles: 1
- Operating Time: 25 Msec Operate/Release
- Resistance: 200 x 10^-3 Ohms
- Switching Voltage: 277V AC
- Temperature: 40°F
- Terminal Type: Quick Connect
- Type: Power
- Weight: 0.11lbs
