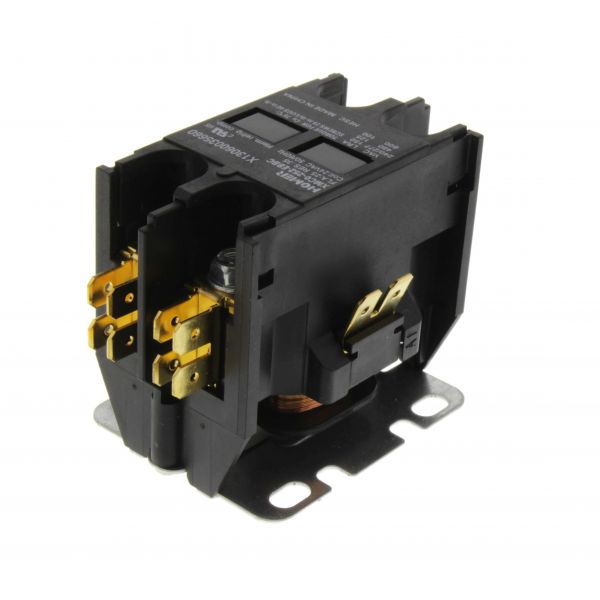

Trane CTR2654 2-Pole Contactor 25 AMP 24V Coil
Special Price $39.89 Regular Price $51.85
Out of stock
SKU
CTR2654
The Trane CTR2654 2-Pole Contactor constructed with 24V coil and offered with 25 Amp contact current is employed in HVAC systems in order to control organized electrical circuits. Constructed with silver cadmium oxide alloy contact material, it provides durability and efficiency in its working. This contactor is suitable for horizontal and vertical installation on metal plates and has a short type of top cover enclosure. It has a switching voltage range of 12-600 VAC and a current rating of 25A and complies with IEC, UL, and UR, ideal for most HVAC equipment. Due to its DPST (Double Pole, Single Throw), Normally Open design,
Manufacturer:
Specifications
- Length: 59"
- Width: 50"
- Height: 81"
- Coil Voltage: 24V
- Frequency: 50/60 Hz
- Contact Current (A): 25 FLA, 32 RLA
- Enclosure Type: Short Top Cover
- Material: Silver Cadmium Oxide Alloy Contact
- Mounting Type: Metal Plate, Horizontal/Vertical
- Power Rating: 6.3 VA
- Standards: IEC,UL,UR
- Temperature Rating: -40°F to 158°F
- Type: Mounting Plate-Metal Plate, Top Cover-Short Cover, Power Terminals-Slotted & Hex head washer with Quick Connect
- Contact Configuration: DPST, Normally Opened
- Current Rating: 25A
- Number of Poles: 2 Pole (25-40 Amps)
- Switching Voltage: 12 to 600 VAC
- Terminal Type: Slotted and Hex Head Washer with Quick Connect
- Weight: 0.5lb
