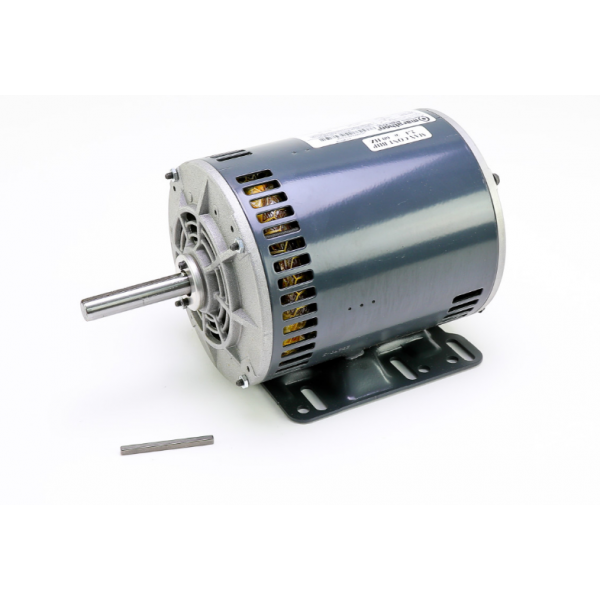

Carrier HD56FE653 2.4 HP Medium Static Motor 460V 3-Phase

Be the first to review this product
Special Price $1,193.77 Regular Price $1,446.95
In stock
SKU
HD56FE653
The Carrier HD56FE653 is a medium static pressure, PSC motor which is used in different HVAC equipment. In layman terms, it is an electric motor that turns the fan or blower part in the system to move the air across the heating or cooling circuit. PSC motors are well known for their durability and energy efficiency. It has a power of 2.4HP and has a no-load speed of 1680 RPM, with a direction of rotation being anti-clockwise. The medium static motor effectively operates to circulate air within HVAC systems in a way that is essential for heating or cooling.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/d/hd56fe653_carrier_partshnc.png

Specifications

  • Length: 17.3 "
  • Width: 10 "
  • Height: 7.3 "
  • Weight: 26.85lbs
  • Voltage: 460V
  • Frequency: 60 Hz
  • Amperage: 6.8
  • Horsepower: 2.4 HP
  • Motor Type: PSC
  • Phase: 3
  • RPM: 1680
  • Rotation: Counter Clockwise

Air-moving assemblies depend on a motor to supply the mechanical power required by their connected blower. The Carrier HD56FE653 is a medium-static motor associated with Carrier HVAC blower assemblies. Its motor output supports the mechanical requirements of the connected air-moving assembly during operation.

Motor Power and Electrical Operation:
Electrical input enables the motor to produce mechanical output for the connected assembly. The Carrier HD56FE653 operates at 460V, 3-phase power and has a 2.4 HP rating, with the electrical configuration defining its operating input and the horsepower representing its specified power capacity.

Medium-Static Motor Configuration:
The medium-static designation distinguishes the HD56FE653 within the specified blower application. This configuration forms part of the motor's operating characteristics for the associated air-moving assembly rather than describing the motor solely by its horsepower or electrical rating.

Replacement Guidelines:
Replacement may be appropriate when the Carrier HD56FE653 develops a persistent reduction in mechanical output or when physical deterioration affects dependable motor operation. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • Blower fails to start
  • Intermittent blower operation
  • Irregular shaft rotation
  • Unusual motor noise
  • Excessive vibration
  • Motor stops during operation

Equipment Compatibility:
The Carrier HD56FE653 is associated with the verified Carrier equipment models 40RUAA08TA5A and 40RUQA08TA6A. Before purchasing, confirm the equipment model and compare the required motor configuration with the verified specifications of the HD56FE653.

Technical Specifications:
Part Identification:
Brand: Carrier
Part Number: HD56FE653
Product Type: Medium Static Motor

Electrical:
Voltage: 460V
Phase: 3-Phase

Mechanical:
Horsepower: 2.4 HP

Reviews
Write Your Own Review
You're reviewing:Carrier HD56FE653 2.4 HP Medium Static Motor 460V 3-Phase
Your Rating
Product Questions (5)
Customer Questions
What is the Carrier HD56FE653?

The Carrier HD56FE653 is a medium-static motor identified by its specific Carrier part number and associated product configuration.

Why can motors with similar horsepower have different product designs?

Horsepower describes power capacity, but motors can differ in electrical configuration, operating characteristics, and intended system association.

What information is useful when sourcing an HVAC motor?

The manufacturer, exact part number, product type, electrical characteristics, mechanical characteristics, and associated equipment information can all help distinguish the correct product.

Why is the original motor part number important?

The original part number provides a specific product reference and helps prevent confusion with other motors that may have similar general characteristics.

Which Carrier models are associated with the HD56FE653?

The supplied equipment references are 40RUAA08TA5A and 40RUQA08TA6A.
