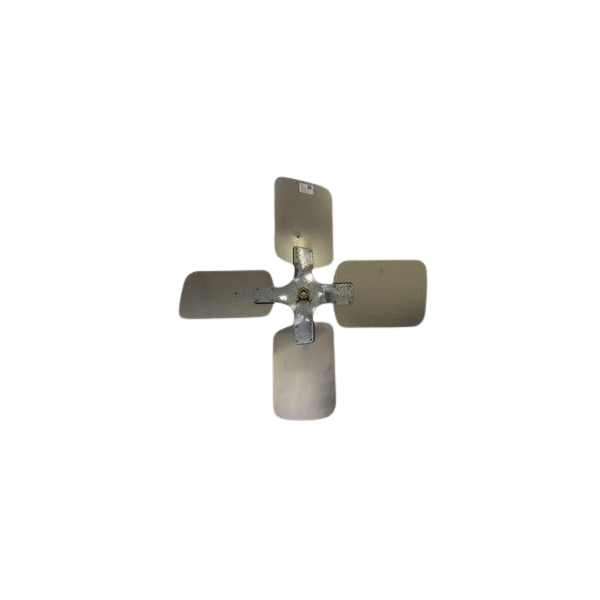

Heatcraft Refrigeration 2293030 4-Blade Fan 30" Diameter CW 5/8" Bore 32° Pitch

Special Price $247.06 Regular Price $274.23
In stock
SKU
2293030
The Heatcraft Refrigeration 2293030 4-Blade Fan that is suitable for use in commercial HVAC and refrigeration systems due to its high performance. It has a 30-inch diameter and 32° pitch to the better cooling capability. It has 1/15 horsepower has a speed of 1300/1600 RPM, and uses 208-230V single phase power supply with 60 Hz frequency. This fan is particularly used in the walk in coolers, freezers and condensers to improve heat rejection and energy recovery. This way of its construction makes it more durable and enhances the performance of the system due to its clockwise rotation.
https://www.partshnc.com/media/catalog/product/2/2/2293030.png

Specifications

  • Type: Fan Blade
  • Diameter: 30"
  • Number of Blades: 4
  • Rotation: Clockwise
  • Bore Size: 5/8"
  • Pitch: 32°

Commercial refrigeration and HVAC equipment uses fan blades to move air through cooling and heat-rejection sections. The Heatcraft Refrigeration 2293030 is a four-blade fan designed to provide the air-moving surface required by a compatible fan assembly.

Fan Blade Geometry and Airflow:
The 2293030 has a 30-inch diameter, four-blade construction, and 32° pitch. The diameter defines the blade's overall size, while the pitch describes the blade angle that influences how it moves air during rotation. These characteristics help determine whether the blade matches the intended fan assembly.

Shaft Mounting and Rotation:
The 5/8-inch bore is the central opening used to fit the blade onto a compatible motor shaft. Its clockwise (CW) designation identifies the intended rotation direction. Both the bore size and rotation direction must match the connected fan assembly for proper installation and operation.

Replacement Guidelines:
Replacement may be necessary when a damaged or deformed blade can no longer provide the required air movement or operate safely. Before ordering, verify the existing blade's part number and physical configuration against the equipment requirements.

Common Failure Symptoms:

  • Bent or damaged blades
  • Reduced airflow
  • Excessive vibration
  • Unusual operating noise
  • Wear or damage around the bore

Equipment Compatibility:
The Heatcraft Refrigeration 2293030 is intended for compatible HVAC and refrigeration fan assemblies. Before purchasing, compare the existing blade's 30-inch diameter, four-blade configuration, 5/8-inch bore, 32° pitch, and clockwise rotation with the equipment's parts documentation.

Technical Specifications:
Product Identification:
Brand: Heatcraft Refrigeration
Part Numer: 2293030
Product Type: Fan Blade

Mechanical:
Diameter: 30"
Number of Blades: 4
Rotation: Clockwise (CW)
Bore Size: 5/8"
Pitch: 32°

Write Your Own Review
You're reviewing:Heatcraft Refrigeration 2293030 4-Blade Fan 30" Diameter CW 5/8" Bore 32° Pitch
Your Rating
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 2293030 Fan Blade?

Regularly inspect the fan blades for dust, debris, or damage. Ensure the blades are balanced and securely mounted on the motor shaft. Proper maintenance ensures efficient airflow, reduces vibration, and prevents motor strain. Always disconnect power before servicing.

What are common issues with the Heatcraft Refrigeration 2293030 Fan Blade?

  • Reduced airflow due to dust or debris buildup.
  • Imbalanced or noisy operation.
  • Loose or worn bore causing blade slippage.
  • Bent or damaged blades affecting rotation.

What does the Heatcraft Refrigeration 2293030 Fan Blade do?

It provides the rotating surface needed to move air through a compatible HVAC or refrigeration fan assembly.

How does the 32° pitch affect the 2293030 Fan Blade?

The pitch describes the angle of the blades, which influences how they interact with the air during rotation.

When should the 5/8-inch bore be considered when selecting the 2293030?

The 5/8-inch bore is an important dimensional characteristic to compare with the shaft requirements of the applicable fan assembly.

Why does clockwise rotation matter when selecting a fan blade?

The rotation designation identifies the intended operating direction. The replacement blade must match the direction required by the fan assembly.

What should be checked before replacing the 2293030?

Verify the part number 2293030, diameter, blade count, bore size, pitch, rotation direction, and equipment requirements before selecting the replacement.

Installation Steps

Step1: Turn off power to the unit for safety.

Step2: Remove the existing fan and clean the mounting area.

Step3: Slide the new fan onto the motor shaft, ensuring proper alignment.

Step4: Secure the fan with the set screws and verify it rotates freely.

Step5: Reconnect any safety guards or covers.

Step6: Restore power and test the fan for proper operation and balance.
