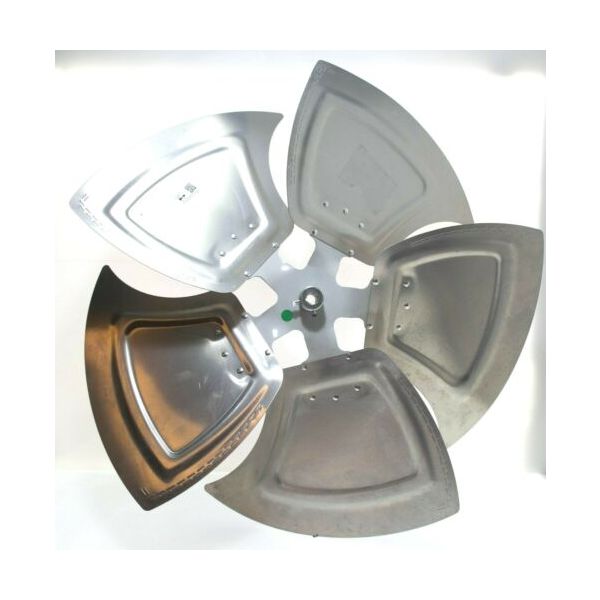

Heatcraft Refrigeration 22929501 30" Fan Blade 28° CW

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $386.20 Regular Price $428.68
In stock
SKU
22929501

The Heatcraft Refrigeration 22929501 Fan Blade functions as a durable efficient commercial cooling system component. The 30-inch diameter blade with its 28-degree blade pitch operates in clockwise direction to provide efficient airflow for refrigeration units. The fan blade uses high quality materials to boost cooling efficiency while stabilizing condenser and evaporator temperatures. The product works with multiple Heatcraft models to serve as an effective replacement for old or broken blades. The fan blade serves supermarkets and cold storage facilities and food service operations to support efficient energy usage and superior refrigeration operations.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/22929501_heatcraft-refrigeration_partshnc.jpg

Fan blades provide the air-moving surface required within refrigeration systems. The Heatcraft Refrigeration 22929501 is a refrigeration fan blade used as part of the associated fan assembly. As the assembly rotates, the blade moves air through the refrigeration system to support the required airflow function.

Blade Geometry and Air-Moving Action:
The blade's shaped surfaces interact with the surrounding air as the fan assembly rotates. This interaction allows the rotating blade to transfer mechanical energy into air movement within the refrigeration fan assembly.

Fan Assembly Rotation and Blade Movement:
The blade operates as the rotating element attached to the fan assembly. Its movement follows the rotation of the connected assembly, allowing the blade to maintain continuous air-moving action during operation.

Replacement Guidelines:
Replacement may be appropriate when the existing fan blade is physically damaged, deformed, or no longer provides the required air movement within the application. For the Heatcraft Refrigeration 22929501, replacement should be considered when the blade can no longer provide the required air movement during normal operation.

Common Failure Symptoms:

  • The fan blade develops noticeable vibration during rotation.
  • Unusual noise occurs while the blade is turning.
  • The blade rotates unevenly within the assembly.
  • Air movement becomes inconsistent during operation.
  • The blade shows visible cracks or deformation.

Equipment Compatibility:
The Heatcraft Refrigeration 22929501 Fan Blade should be selected for refrigeration fan assemblies requiring the corresponding blade configuration. Before purchasing, verify the existing 22929501 part number, fan assembly arrangement, and applicable refrigeration equipment requirements against the original equipment documentation.

Technical Specifications:
Part Identification:
Brand: Heatcraft Refrigeration
Part Number: 22929501
Product Type: Fan Blade

Mechanical:
Diameter: 30 inches
Blade Angle: 28°
Rotation: Clockwise (CW)

Reviews 5
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 22929501 30" Fan Blade 28° CW
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 22929501 Fan Blade?

Regularly inspect the fan blade for dust, dirt, or debris and clean with a soft cloth to maintain airflow efficiency. Check for cracks, bending, or loose mounting screws. Ensure the motor spins freely and always disconnect power before servicing.

What are common issues with the Heatcraft Refrigeration 22929501 Fan Blade?

  • Blade cracking or warping.
  • Imbalanced rotation causing vibration.
  • Reduced airflow efficiency.
  • Noise from loose or damaged mounting hardware.

What type of component is the Heatcraft Refrigeration 22929501?

The 22929501 is a fan blade used as the rotating air-moving component within an associated refrigeration fan assembly.

How does the 22929501 transfer mechanical energy to the air?

As the connected fan assembly rotates, the blade's surfaces interact with the surrounding air and create directional air movement.

What does the 28° blade angle represent?

The 28° value describes the orientation of the blade surface within its physical configuration.

What does CW rotation indicate for the 22929501?

CW indicates the specified clockwise direction in which the fan blade is intended to rotate within the associated assembly.

How should the 22929501 be verified before selection?

Compare the existing 22929501 part number and fan assembly arrangement with the applicable refrigeration equipment requirements before ordering.

Installation Steps

Step1: Turn off power and lock out equipment before starting.

Step2: Remove old fan blade and inspect shaft for damage or debris.

Step3: Align new blade on shaft, ensuring correct clockwise orientation.

Step4: Tighten set screws securely and check blade clearance.

Step5: Restore power and test for smooth, vibration-free operation.
