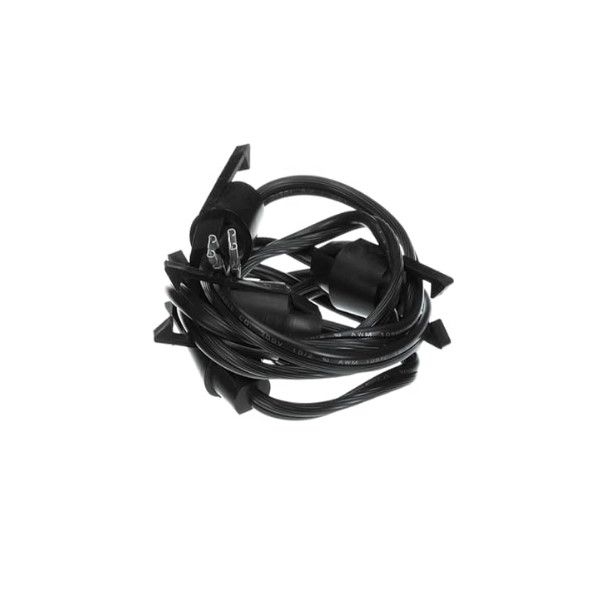

main product photo

Heatcraft Refrigeration 22587904 Motor Harness 230V

Be the first to review this product
Special Price $64.60 Regular Price $74.29
In stock
SKU
22587904
The Heatcraft Refrigeration 22587904 Motor Harness is used for HVAC system to link the motor to the control board. This motor harness is specifically designed for 230V operation and Provides a secure and reliable power source to the motor to obtain the maximum refrigeration unit performance. In commercial refrigeration applications such as walk in coolers, freezers and other HVAC equipment as a commercial refrigeration unit it is commonly used. The product improves system efficiency through stable electrical connection, durability enhancement and power disruption risk reduction. Installation of this unit is easy and compatible with various refrigeration units and is an essential part of maintaining the reliable cooling performance.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/22587904-1.jpg

Specifications

  • Type: Motor Harness
  • Voltage: 230V
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 22587904 Motor Harness 230V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 22587904 Motor Harness?

Regularly inspect the harness for frayed wires, loose connections, or signs of corrosion. Ensure terminals are clean and secure. Avoid sharp bends or pinching, and disconnect power before handling to prevent electrical hazards. Keep the surrounding area free from moisture and debris.

What are common issues with the Heatcraft Refrigeration 22587904 Motor Harness?

  • Loose or disconnected wires.
  • Frayed insulation causing short circuits.
  • Corrosion on terminals.
  • Intermittent electrical connectivity.
  • Overheating at connection points.

Installation Steps

Step 1: Disconnect power at breaker to prevent electric shock immediately.

Step 2: Remove access panel and locate existing motor harness.

Step 3: Disconnect old harness connectors carefully, noting wire positions properly.

Step 4: Install new harness, matching connectors firmly to terminals.

Step 5: Secure wiring, replace panel, restore power, test operation thoroughly.
