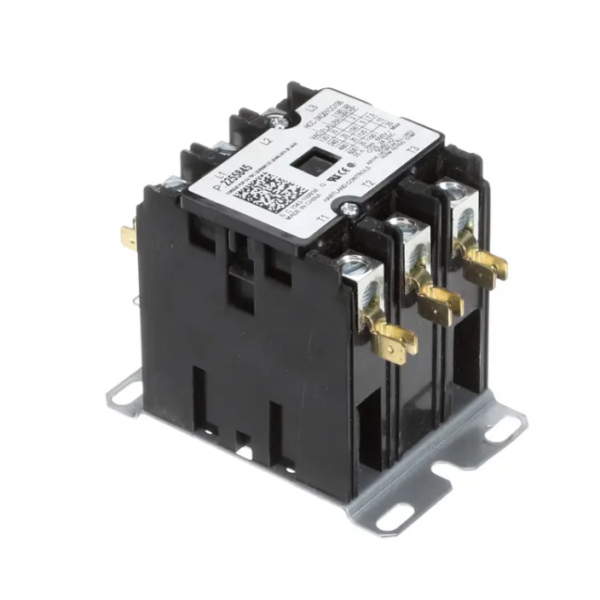

Heatcraft Refrigeration 2255845 3-Pole Contactor 25A 24V

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $268.26 Regular Price $568.95
In stock
SKU
2255845
The Heatcraft Refrigeration 2255845 3-Pole Contactor is a solid electrical component for HVAC system and refrigeration systems. It has three poles and a 25 amp current rating and runs at 24V to control the flow of electricity to things such as compressors, motors, and fans. It opens and closes electrical circuits to start or stop system. It is suitable to use in air conditioning, refrigeration systems, and heating systems. With the robust design, it is durable, reliable to perform, to improve system efficiency, preventing electrical overload, and life of HVAC system.
Add to Wish List
HVAC Controls & Electrical, Contactors
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/2255845_heatcraft-refrigeration_partshnc.jpg

Specifications

  • Type: Contactor
  • Number of Poles: 3
  • Current: 25AMP
  • Voltage: 24V
Manufacturer Name: Heatcraft Refrigeration
Product Number: 2255845
OEM Part Number: 2255845
Product Description: Contactor 25 Amp 3 Pole 24V
Weight:0.99lbs/449.06g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 2255845 3-Pole Contactor 25A 24V
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 2255845 Contactor?

Regularly inspect contact points for pitting or burning and clean dust buildup to ensure accurate switching. Tighten electrical terminals to prevent overheating and voltage drop. Verify coil operation and replace the contactor if excessive wear or chattering occurs.

What are common issues with the Heatcraft Refrigeration 2255845 Contactor?

  • Contact pitting from arcing is causing intermittent switching.
  • Coil failure or burnout leading to non-activation.
  • Chattering due to low voltage supply fluctuations.
  • Terminal overheating from loose connections and discoloration.
  • Mechanical sticking of contacts is causing a delayed response.

Installation Steps

Step 1: Isolate power supply, and verify zero voltage.

Step 2: Remove old contactor, label all wires carefully for correct reconnection.

Step 3: Mount new contactor securely in panel and ensure proper alignment.

Step 4: Reconnect line and load terminals according to wiring diagram.

Step 5: Tighten all connections, check insulation, and ensure no loose wires.

Step 6: Restore power and test contactor operation for proper switching.
