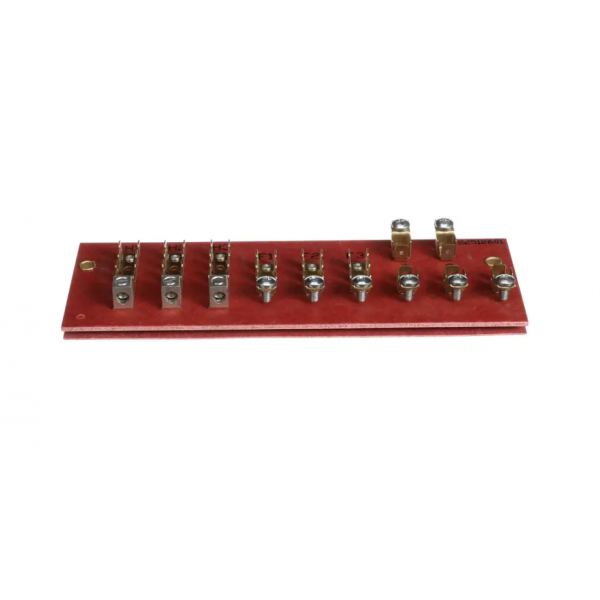

main product photo

Heatcraft Refrigeration 22512601 Evaporator Terminal Board

Be the first to review this product
Special Price $66.26 Regular Price $76.20
In stock
SKU
22512601
The Heatcraft Refrigeration 22512601 Evaporator Terminal Board is a high quality component that is used in the HVAC systems. Within the evaporator units, this terminal board is an essentisl control and connection point from a refrigeration component point of view. Used in commercial and industrial refrigeration systems as an aid to providing proper electrical connections, it contributes to reliability and system running performance. It is designed for rugged construction in demanding environments and is expected to be long lasting and to operate reliably. Benefits of the product include improved energy efficiency, simplified system maintenance, and improved overall performance and it is an indispensable part of the refrigerator, cold storage facilities and other temperature controlled applications.
Add to Wish List
HVAC Accessories, Condensers & Evaporators
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/2/22512601_heatcraft-refrigeration_partshnc.jpg

Specifications

  • Type: Evaporator Terminal Board
    Manufacturer Name: Heatcraft Refrigeration
    Product Number: 22512601
    OEM Part Number: 22512601
    Product Description: Terminal Board Evaporator
    Weight:0.46lbs/208.65g

    Choose the best HVAC equipment parts and supplies from PartsHnC!

    • Same Day Shipping

    • Best Quality And Best Price

    • Wide Range of Inventory

    • Best Customer Service

    Have More Questions or Need Help to Place The Order?
    Reach us at (866)773-0907 or [email protected]

    Reviews
    Write Your Own Review
    You're reviewing:Heatcraft Refrigeration 22512601 Evaporator Terminal Board
    Your Rating
    Product Questions (2)
    Customer Questions
    What maintenance is required for the Heatcraft Refrigeration 22512601 Evaporator Terminal Board?

    Regularly inspect the terminal board for signs of corrosion, loose connections, or burnt contacts. Clean dust and debris from the board using a soft brush or compressed air. Ensure all wiring is secure and properly insulated to maintain safe operation.

    What are common issues with the Heatcraft Refrigeration 22512601 Evaporator Terminal Board?

    • Loose or disconnected wires.
    • Corrosion or rust on terminals.
    • Overheated or scorched terminals.
    • Intermittent or failed electrical signals.

    Installation Steps

    Step 1: Ensure the power source is turned off before starting.

    Step 2: Remove the access panel to locate the existing terminal board.

    Step 3: Disconnect all wiring carefully, noting the original connections.

    Step 4: Remove the old terminal board from its mounting.

    Step 5: Install the new terminal board and secure it with screws.

    Step 6: Reconnect the electrical wires according to the original configuration.

    Step 7: Restore power and test the system to ensure proper operation.
