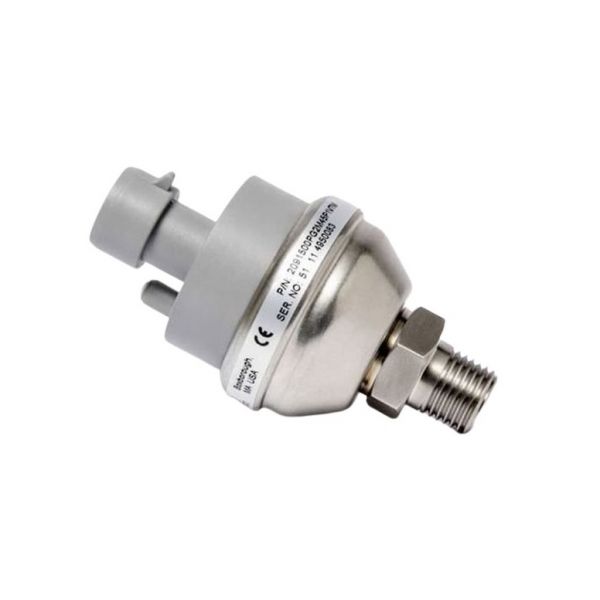

main product photo

Setra 2091005PG2M45P1 Pressure Transducer 1/4" NPT 0-5 PSI 0.5-4.5 VDC

Rating:
5 5 4
4  Reviews Add Your Review
Special Price $328.15 Regular Price $364.25
In stock
SKU
2091005PG2M45P1
The Setra 2091005PG2M45P1 pressure transducer delivers precise pressure measurement capabilities to HVAC systems. This part connects through a 1/4" NPT male and a 3-pin Packard connector to output a precise signal range of 0.5VDC-4.5VDC. The transducer operates in low-pressure conditions because its pressure range extends from 0 to 5 PSI. This part transforms mechanical pressure into electrical data for real-time equipment controls in HVAC operating systems. The durable operation of this part leads to system efficiency improvement through accurate pressure regulation which reduces energy usage while enhancing both durability and performance quality in HVAC systems.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/2/0/2091005pg2m45p1.jpg

Specifications

  • Type: Pressure Transducer
  • Connection: 1/4" NPT Male
  • Output Signal: 0.5-4.5VDC
  • Connector: 3 Pin Packard
  • Pressure Range: 0-5 PSI
Manufacturer Name: Setra
Product Number: 2091005PG2M45P1
OEM Part Number: 2091005PG2M45P1
Product Description: 1/4" Pressure Xducer .5-4.5Vdc
Weight:0.29lbs/131.54g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 4
Write Your Own Review
You're reviewing:Setra 2091005PG2M45P1 Pressure Transducer 1/4" NPT 0-5 PSI 0.5-4.5 VDC
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Setra 2091005PG2M45P1 Pressure Transducer?

Periodically inspect the transducer and its connection for dirt, moisture, or debris. Gently clean the pressure port with proper tools to avoid damage. Verify wiring and signal output integrity. Always disconnect power before servicing to avoid electrical hazards.

What are common issues with the Setra 2091005PG2M45P1 Pressure Transducer?

  • Erratic or unstable voltage output readings.
  • Zero-point drift affecting accuracy.
  • Clogged pressure port or contamination.
  • Loose or corroded electrical connections.

Installation Steps

Step 1: Turn off power to the HVAC unit for safety.

Step 2: Locate the port where the transducer will be installed.

Step 3: Remove any existing fittings and clean the port threads.

Step 4: Apply thread sealant or Teflon tape as recommended.

Step 5: Screw in the new pressure transducer securely without over-tightening.

Step 6: Connect the electrical leads according to wiring diagram.

Step 7: Restore power and verify the transducer output for correct operation.
