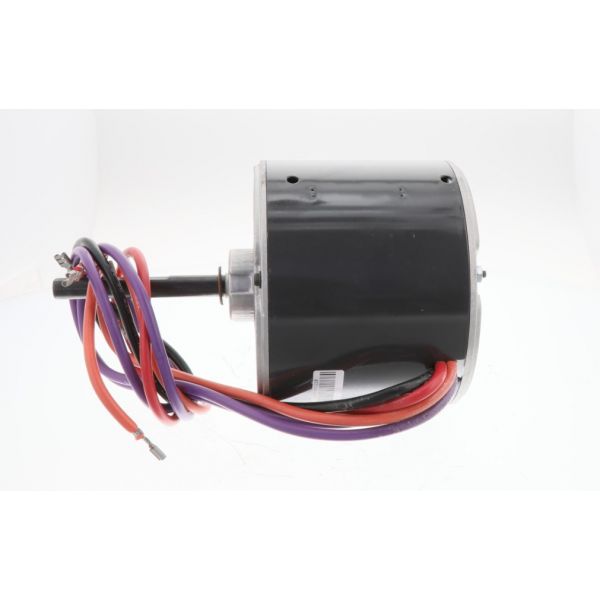

Lennox 36A75 1-Phase Motor 208/230V 1/3 HP 1075 RPM
Special Price $561.06 Regular Price $622.78
In stock
SKU
36A75
The Lennox 36A75 motor is a single phase permanent split capacitor motor for use on Lennox HVAC equipment including condenser units. It runs on 208-230V voltage and produces 1/3 horsepower power. This motor spins at a fixed speed of 1075 RPM and moves the air around the system efficiently. Its vertical mounting position and belly band mounting type make it easy to install. The 36A75 motor is used to efficiently move air through the condenser unit to keep your system operating and functioning properly as well as maintain proper cooling performance.
Manufacturer:
Specifications
- Measure: Units
- Power: 1/3 HP
- Frequency: 60 Hz
- Phase: 1
- Motor Type: PSC
- Speed: 1075 RPM
- Number of Speeds: 1
- Frame Size: 48
- Motor Mounting Position: Vertical
- Motor Mounting Type: Belly Band
- Voltage: 208-230V
- Shaft Size: 0.5 x 4.5 Inch
- Capacitor Value: 7µF 370 VAC
- Rotation: CCW
- Bearing Type: Sleeve
- Weight: 14.06lbs
