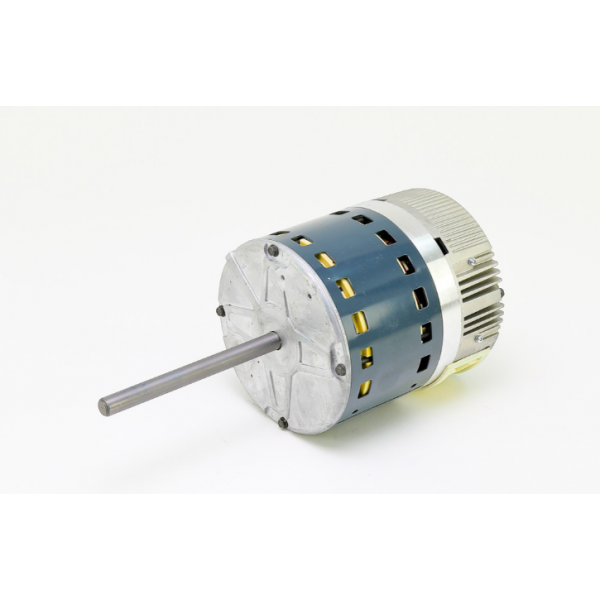

Trane MOT12272 1HP ECM Motor 115V 1-Phase 48 Frame

Special Price $2,398.37 Regular Price $2,662.19
In stock
SKU
MOT12272
The Trane MOT12272 ECM Motor is a small and powerful unit that can be used as the primary workhorse for the precise control of airflow in your Trane HVAC system. This ECM motor is of variable speed operation as it is equipped with Electronic Commutation (ECM) technology unlike the traditional AC motors. A high-tech motor that comes with a single-phase voltage of 115V, which is suitable for both residential and commercial use. This ECM motor provides a stable 1 horsepower performance in terms of converting electrical energy into rotational energy. As a result of the ECM design, the Trane MOT12272 Motor can be variable in speed depending on the different airflows required.
Manufacturer:
https://www.partshnc.com/media/catalog/product/m/o/mot12272_trane_partshnc.png

Specifications

  • Voltage: 115V
  • Weight: 13.82lbs
  • Phase: Single
  • Horsepower: 1HP
  • Type: ECM Motor

Motor-driven assemblies use electric motors to operate connected mechanical components. The Trane MOT12272 is an electronically commutated motor (ECM) designed to provide controlled output to its connected load. Its electronic operating system manages motor operation while the shaft transfers the resulting torque to the driven component. The motor serves as the drive source for equipment designed around this ECM configuration.

ECM MOTOR OPERATING PRINCIPLE:
An electronically commutated motor uses electronic circuitry to control the energizing of its internal windings. This creates the magnetic interaction required to generate torque and turn the rotor and shaft. Electronic commutation controls the motor without the conventional mechanical brush arrangement used in brushed motors. The resulting shaft output is transferred to the connected load.

MOTOR POWER AND FRAME CHARACTERISTICS:
The MOT12272 is rated at 1 HP and uses a 115V, single-phase electrical supply. Its 48-frame designation identifies the standardized frame classification associated with the motor. These characteristics should correspond with the requirements of the equipment using the motor.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the Trane ECM Motor can no longer provide the output required by the connected load. It may also be appropriate when a confirmed motor fault causes unreliable operation during the equipment cycle. Before ordering, compare the existing motor's part number and applicable equipment requirements with the MOT12272.

COMMON FAILURE SYMPTOMS:

  • Motor fails to start when operation is requested.
  • Motor operation becomes intermittent during a normal cycle.
  • Connected equipment operates inconsistently.
  • Unusual humming or operating noise develops.
  • Excessive vibration occurs during operation.

EQUIPMENT COMPATIBILITY:
The MOT12272 1 HP ECM Motor should be matched to equipment that specifically requires this ECM motor configuration. Confirm that the applicable equipment information identifies MOT12272 and supports its 1 HP, 115V, single-phase, and 48-frame requirements before replacement.

TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Trane
Part Number: MOT12272
Product Type: ECM Motor
Electrical Specifications:
Voltage: 115V
Phase: 1-Phase
Mechanical Specifications:
Horsepower: 1 HP
Frame: 48

Write Your Own Review
You're reviewing:Trane MOT12272 1HP ECM Motor 115V 1-Phase 48 Frame
Your Rating
Customer Questions
How does the ECM design of the Trane MOT12272 differ from a conventional motor?

An ECM uses electronic circuitry to control motor commutation rather than relying on a conventional mechanical brush arrangement. This makes the ECM design an important compatibility requirement when selecting a replacement.

Can a conventional 1 HP motor replace the Trane MOT12272 ECM motor?

Not automatically. A conventional motor may have a different operating and control arrangement. The replacement must meet the equipment's specified ECM requirements.

What could cause the MOT12272 to run inconsistently or fail to start?

Possible causes include electrical supply issues, wiring or connection faults, electronic control problems, or an internal motor fault. Proper diagnosis is needed before deciding to replace the motor.

Why is the 48-frame designation important when choosing an ECM replacement?

The frame designation identifies the motor's specified frame classification. It should match the equipment's mounting and mechanical requirements, not just the motor's horsepower.

Can I select a replacement ECM motor based only on its 115V and 1 HP ratings?

No. Also verify the motor type, frame classification, equipment requirements, and applicable control connections. Matching voltage and horsepower alone does not establish compatibility.
