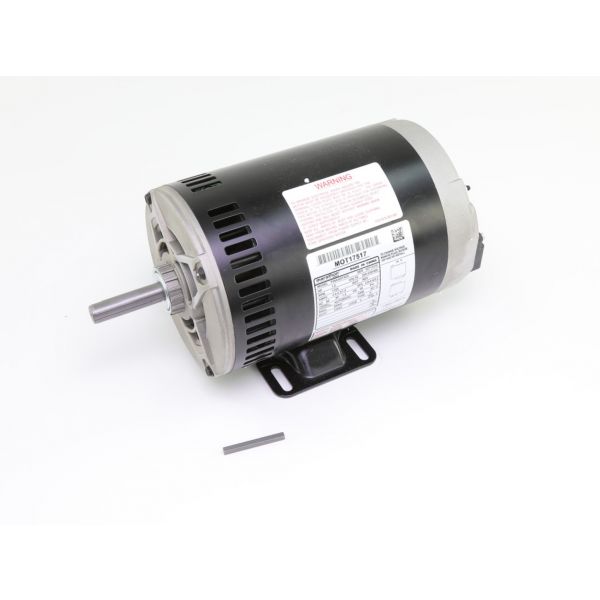

Trane MOT17517 Motor 1HP 56Frame 208-230/460V

The Trane MOT17517 is a heavy-duty motor designed for efficient airflow in large commercial HVAC systems. Here's a breakdown of its features and functionality.
Function: This motor is a workhorse built for powering large HVAC equipment. It can operate on a dual voltage range of either 208-230 volts or 460 volts, making it versatile for various electrical configurations. Additionally, it functions on a standard frequency of 60 Hz.
Operation: The motor delivers a reliable 1 horsepower (HP), suitable for driving high airflow within the HVAC system. It reaches speeds ranging from 1725 RPM (Revolutions Per Minute) to 1425 RPM. The specific speed attained depends on the electrical configuration (voltage) used during installation. The motor shaft typically connects to a fan blade (usually sold separately) within the HVAC unit. When energized, the motor's internal components rotate, spinning the shaft and consequently the fan blade. This creates airflow that's crucial for optimal performance of the HVAC system.
Applications: Due to its power and durability, the Trane MOT17517 motor is commonly found in large commercial HVAC equipment such as rooftop units (RTUs) and air handling units (AHUs).
Benefits:
Durable construction: Built to withstand the demands of continuous operation in commercial environments.
Dual voltage compatibility: Offers flexibility for use in various electrical setups (208-230V or 460V).
High power (1 HP): Provides ample power to drive high airflow rates within large HVAC systems.
Variable speed (1725-1425 RPM): Allows for some adjustability in airflow depending on the electrical configuration.
Compact design (approximately 29.86 lbs): While powerful, it maintains a relatively compact size for easier integration into commercial HVAC units.
