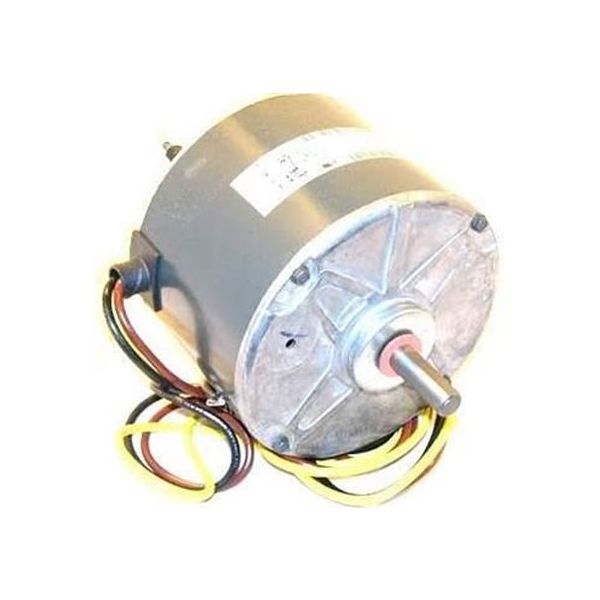

Carrier HC35GE237 1/8HP Condenser Fan Motor 825 RPM 208-230V
Special Price $342.39 Regular Price $380.05
Out of stock
SKU
HC35GE237
Carrier HC35GE237 is a single-speed, 1/8 HP PSC motor that is suitable for operation in Carrier HVAC systems and has an S1 continuous service factor. This motor is 6.25” long, 5.75” wide and 6.625” tall, which makes it an ideal motor for different uses. It works at 208–230V AC, 60 Hz and has a current consumption of 0.73 A. The PSC motor uses a permanent split capacitor to provide a fixed speed of 825 RPM in the clockwise direction. A sleeve bearing is used to support a 0.5-" diameter shaft and the motor has a thermal overload protection for safety measures.
Manufacturer:
Specifications
- Length: 6.25 "
- Width: 5.75 "
- Height: 6.625 "
- Amperage: 0.73 Amps
- Bearing Type: Sleeve
- Capacitor: 5 MFD
- Frequency: 60 Hz
- Duty: Continuous (S1)
- Full Load Amps: 0.73 Amps
- Insulation Class: B
- Motor Enclosure: Fully Enclosed
- Motor HP: 1/8
- Motor Type: PSC (Permanent Split Capacitor)
- Mounting Type: Vertical Shaft Down
- NEMA Frame: 48
- Number of Speeds: 1
- Number of Phases: 1
- Protection: Thermal Protection
- RPM: 825
- Rotation: Clockwise (CW)
- Shaft Diameter: 0.5 "
- Shaft Length: 1.5 "
- Voltage: 208V-230V
- Weight: 9.53lbs
