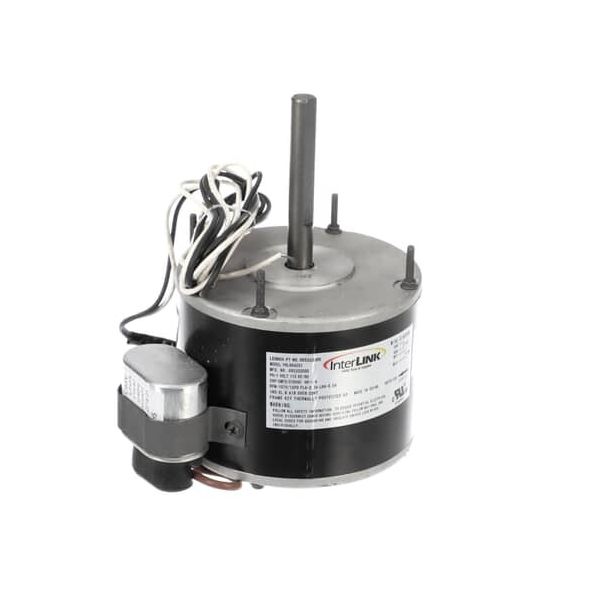

Lennox 96M54 1/8 HP Motor 1075 RPM 115V 60Hz 1-Phase

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $205.73 Regular Price $228.36
In stock
SKU
96M54

The Lennox 96M54 is a single-phase fan motor designed for use in various HVAC equipment. It plays a critical role in the system's operation by continuously drawing air over the condenser coils. This airflow helps remove heat absorbed by the refrigerant during the cooling cycle. The motor operates at 115 volts and delivers a steady 1/8 horsepower, rotating the fan blade at 1075 revolutions per minute (RPM). Its lightweight design (around 9.01 pounds) makes it easy to integrate into existing HVAC units. By ensuring efficient airflow, the Lennox 96M54 motor contributes to several benefits. It helps maintain optimal system performance and cooling capacity. Additionally, it promotes a longer lifespan of the compressor by preventing overheating. A functional fan motor also reduces energy consumption as the system doesn't have to work harder to achieve the desired cooling effect.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/9/6/96m54.jpg

Specifications

  • Voltage/Electrical: 115V
  • RPM (Revolutions Per Minute): 1075 RPM
  • Horsepower(HP): 1/8HP
  • Frequency: 60Hz
  • Weight: 9.01lbs

Fan assemblies use motors to provide the mechanical drive needed for fan movement. The Lennox 96M54 is a fan motor that supplies rotational drive to the connected fan within its associated application. Its primary role is to provide the mechanical movement required by the fan assembly during equipment operation.

Fan Motor Speed and Rotational Characteristics:
The Fan Motor is rated at 1075 RPM, indicating the specified rate of shaft rotation. This value defines how quickly the shaft turns and establishes the rotational behavior delivered to the attached fan. The RPM rating therefore describes an important mechanical aspect of the unit without implying a specific speed-control technology.

Motor Power and Electrical Requirements:
The unit has a 1/8 HP rating and operates on a 115V, 60Hz, single-phase electrical supply. The horsepower value identifies its specified power capacity, while the voltage, frequency, and phase define the required electrical configuration. Together, these specifications establish the power and supply conditions for the intended application.

Replacement Guidelines:
Replacement may be appropriate when the existing Lennox 96M54 no longer provides the required rotational drive or develops inconsistent shaft movement. Before ordering, compare the existing part number with the applicable equipment requirements and verified specifications.

Common Failure Symptoms:

  • The motor fails to start when fan operation is required.
  • Irregular shaft rotation occurs.
  • Unusual sounds develop while the motor is running.
  • Noticeable vibration occurs during operation.
  • The motor stops unexpectedly during operation.

Equipment Compatibility:
The Lennox 96M54 Motor should be selected for applications requiring a 1/8 HP, 1075 RPM, 115V, 60Hz, 1-phase fan motor configuration. Before purchasing, confirm the existing part number, required horsepower, speed, voltage, frequency, phase, and other applicable equipment requirements.

Technical Specifications:
Part Identification:
Brand: Lennox
Part Number: 96M54
Product Type: Fan Motor

Electrical:
Voltage: 115V
Phase: 1-Phase
Frequency: 60Hz
Horsepower: 1/8 HP

Mechanical:
Speed: 1075 RPM

Reviews 2
Write Your Own Review
You're reviewing:Lennox 96M54 1/8 HP Motor 1075 RPM 115V 60Hz 1-Phase
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Lennox 96M54 Motor?

Regularly clean the motor to remove dust and debris, ensuring proper airflow and cooling. Check bearings and lubricate if applicable, and inspect electrical connections for tightness. Always disconnect power before servicing to prevent injury. Routine care prevents overheating and extends motor life.

What are common issues with the Lennox 96M54 Motor?

  • Motor fails to start or stalls under load.
  • Excessive vibration or unusual noise.
  • Overheating during extended use.
  • Reduced rotational speed affecting performance.

What type of component is the Lennox 96M54?

The Lennox 96M54 is a fan motor that provides the mechanical drive required by a connected fan assembly.

What is the difference between the 96M54 fan motor and the fan it drives?

The 96M54 provides rotational mechanical drive, while the connected fan uses that rotation to perform the required air-moving function.

Does a 1075 RPM rating by itself identify this motor as variable-speed?

No. The supplied product information identifies 1075 RPM as the specified motor speed and does not identify a variable-speed control technology.

What should be checked before purchasing the Lennox 96M54?

Confirm the existing part number, required horsepower, speed, voltage, frequency, phase, and other applicable equipment requirements before purchasing.

How can the Lennox 96M54 be distinguished from another fan motor?

The 96M54 is the specific product identifier and should be compared with the existing part number and applicable motor requirements when selecting the correct component.

Installation Steps

Step1: Turn off power at the circuit breaker to ensure safety.

Step2: Remove the access panel on the unit to reach the motor.

Step3: Disconnect wiring from the old motor, noting connections for reference.

Step4: Loosen mounting bolts and carefully remove the old motor.

Step5: Install the new motor, aligning it properly with the shaft and mounts.

Step6: Reconnect wiring exactly as noted.

Step7: Secure the access panel and restore power.

Step8: Test operation to confirm proper function.
