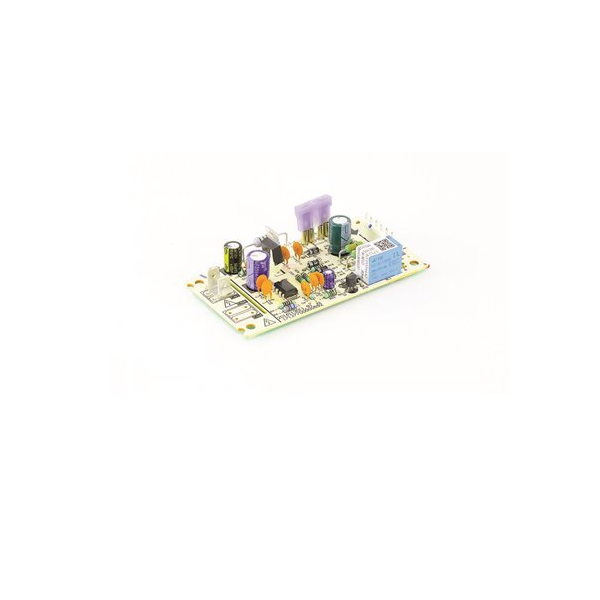

The International Comfort Product 17123000004432 Time Delay Board is an essential part of the HVAC device that controls the time of various operations performed in the device. It does this by employing circuits that can measure and time the activation or deactivation of particular parts to allow the system to function optimally. This time delay feature is important to avoid power surge or over heating of the HVAC system and thus enhancing the life of the system. This board helps in energy saving, sound control, and provide year-round heating and cooling with accurate timing control.
Manufacturer Name:International Comfort Products Product Number: 17123000004432 OEM Part Number: 17123000004432 Product Description: A time delay board, also known as a time delay relay or time delay module, is used in HVAC systems to introduce controlled time delays into various system operations. Time delay boards allow users to adjust and set the duration of the time delay, which can range from seconds to minutes. This is crucial for tailoring the delay to specific system needs. These boards offer both delay-on and delay-off functions. A delay-on activates a component (e.g., compressor) after a set time, while a delay-off turns it off after a specific time. Time delay boards help protect HVAC components by preventing rapid cycling. For example, a time delay can ensure that the compressor doesn't restart immediately after shutting down, reducing wear and tear. Delaying the start of certain components (like compressors) reduces the inrush current, which can help prevent electrical surges that might overload the system or damage sensitive equipment. These boards prevent short cycling, where a component rapidly turns on and off, which is inefficient and can lead to equipment damage. The time delay ensures the system runs smoothly. Time delay boards are designed to be compatible with various HVAC system components, such as compressors, fans, and defrost cycles. Built for durability, time delay boards are reliable and designed to withstand the demands of HVAC system operations. These boards typically have marked terminal connections, making installation and wiring straightforward.
Key features of the time delay board for HVAC components are:
Customizable time delay settings.
Works with various HVAC components.
Suitable for AC, heating, and refrigeration.
Prevents rapid component cycling.
The time delay board in an HVAC system introduces controlled time delays into system operations to protect equipment, reduce short cycling, and optimize performance. Its features include delay adjustment, delay-on/off functions, compatibility, reliability, LED indicators, and a compact design, all contributing to smoother and more efficient HVAC system operation.
Weight:0.18lbs/81.65g
Choose the best HVAC equipment parts and supplies from PartsHnC!
Are time delay boards user-adjustable, or do I need a professional for setup and adjustments?
Time delay boards typically have user-adjustable settings. However, for precise configuration, it's recommended to consult with an HVAC professional.
How do I determine the ideal time delay setting for my HVAC system?
The ideal time delay setting depends on factors like the system components and conditions. Consult with an HVAC technician to determine the best setting for your setup.
Can a time delay board help reduce my electricity bills, and how does it achieve this?
Yes, it can. By minimizing inrush current and preventing frequent restarts, time delay boards help lower energy consumption and, in turn, reduce electricity bills.
