The Warrick-Gems Sensors & Controls 16MB1A0 Level Control Relay operates as a 120V part that performs liquid level sensing and control operations in HVAC systems. The part operates through conductivity probes which monitor liquid levels at designated points to activate or deactivate equipment systems. This part operates in boilers and condensate tanks and cooling towers to maintain fluid levels accurately, preventing both overflow and dry-run conditions. The relay system delivers reliable operation while decreasing maintenance needs and safeguards HVAC components from damage which makes it a suitable solution for automated fluid management across commercial and industrial sectors.

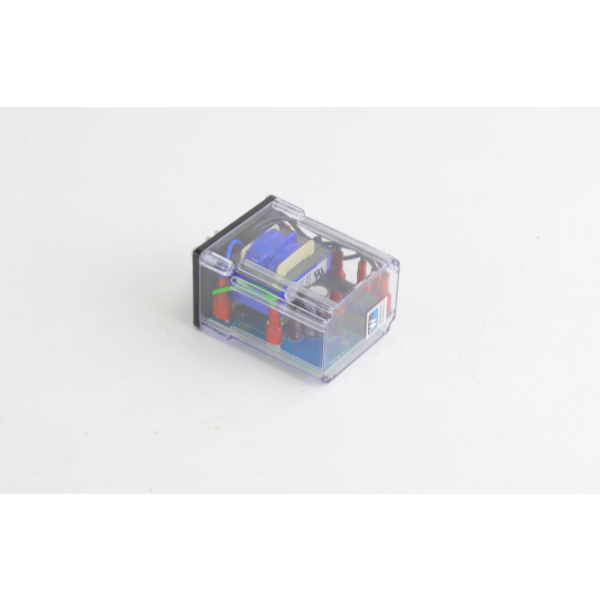

Warrick-Gems Sensors & Controls 16MB1A0 Level Control Relay
This adaptable liquid-level control plug-in module from Warrick-Gems Sensors & Controls 16MB1A0 is developed for a range of industrial uses. A plug-in liquid level control module, the Warrick-Gems Sensors & Controls 16MB1A0 is made for a variety of applications that need accurate and dependable liquid level monitoring and control. A plug-in liquid level control module for general-purpose uses including sump pumps, fountains, and industrial tanks is the Warrick-Gems Sensors & Controls 16MB1A0. A liquid level control plug-in module, the Warrick-Gems Sensors & Controls 16MB1A0 is made for a variety of applications that need accurate and dependable level detection and control. For accurate liquid-level monitoring and control in industrial applications, Warrick-Gems Sensors & Controls 16MB1A0 is a liquid-level control switch. This control switch was designed to be both dependable and adaptable.
Key features:
Reliable Liquid Level Control:
Microprocessor probe: Offers highly accurate and sensitive level detection compared to traditional conductivity methods.
Direct-operated design: Simple and robust for reliable level monitoring, requiring minimal moving parts.
SPST relay with NO and NC contacts: Provides versatile control options for alarms, pumps, valves, and other actuators.
Enhanced Versatility and Customization:
Plug-in module: Simplifies installation and removal for maintenance, minimizing downtime.
8-pin socket with screw-type connections: Secure and convenient wiring for various control systems.
Adjustable settings: Customize activation points, time delays, and control actions for diverse application needs.
Adjustable Sensitivity: The switch allows for precise adjustment of liquid level sensing, catering to different liquids and application requirements.
Durable Construction: This control switch is made of high-quality materials and provides dependability and durability even in demanding industrial settings.
Versatile Compatibility: It works well with a variety of liquids, such as chemicals, oils, water, and more, which makes it appropriate for a range of industrial uses.
Compact Design: The compact design facilitates easy installation in various tank and vessel configurations, including tight spaces.
Easy Installation and Maintenance: made to be easily installed and require little upkeep, which minimizes downtime and guarantees continuous performance.
Wide Application Range: Applicable to a variety of industries, including manufacturing, chemical processing, water treatment, and others, for use in tanks, vessels, and other liquid containment systems.
Easy Operation and Monitoring:
LED indicators: Provides clear visual feedback on the operational status and liquid level.
No calibration required: Ready to use without time-consuming adjustments.
Compact design: Fits easily into tight spaces.
Durable and Safe:
CSA approval and UL listing for motor controller: Ensures safety and compliance with regulations.
Solid-state reliability: Minimizes maintenance requirements and extends service life.
Suitable for various liquids: Adapts to conductive liquids in diverse industrial applications.
Signs of faulty Level Control Relay 16MB1A0 Warrick-Gems Sensors & Controls:
Abnormal Control Behavior:
False alarms or activation triggers: The module triggers the control action (alarm, pump, etc.) even when the liquid level is normal.
Failure to trigger control actions during actual level changes: The module doesn't respond to reaching set points, leaving equipment unprotected or uncontrolled.
Erratic behavior: The module displays unexpected behavior like flickering LEDs, inconsistent readings, or frequent resets.
Physical Damage:
Cracks, corrosion, or burns on the module or probe. Exposure to severe heat, strong chemicals, or physical impact could be the cause of this.
Loose or damaged wiring connections.
Operational Issues:
The module doesn't reset automatically after a power outage.
Difficulty adjusting the liquid level settings.
Unexpected behavior even after following troubleshooting steps in the user manual.
Additional Considerations:
Age of the unit: While robust, even reliable equipment eventually wears out. Consider replacing an aged unit if problems persist.
Environmental factors: Exposure to extreme temperatures, harsh chemicals, or physical impact can affect the performance of the module.
Remember:
Prioritize safety when dealing with potential equipment malfunctions. If you suspect a problem with your Level Control Relay 16MB1A0, immediately shut down the equipment to prevent damage.
Consult the user manual for troubleshooting steps and specific instructions for your application.
Contact a qualified technician or Warrick-Gems Sensors & Controls for assistance if needed.
