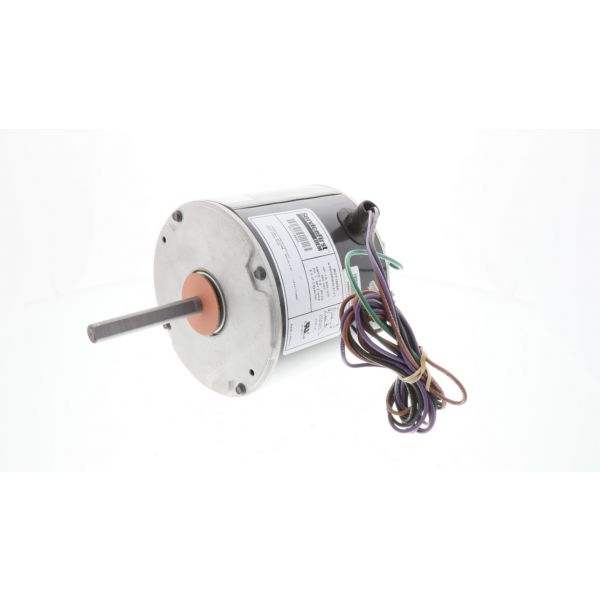

Trane MOT18686 1/6 HP 1-Speed PSC Motor 825 RPM 460V 1-Phase 48
Specifications
- Frequency: 60Hz
- Horsepower: 1/6 HP
- Voltage: 460V
- RPM (Revolutions Per Minute): 825
- Number of Speeds: 1
- Weight: 13.2 Lbs
Loyalty ProgramMotor-driven assemblies use electric motors to operate connected components during equipment cycles. The Trane MOT18686 is a permanent split capacitor (PSC) motor designed to deliver output to its connected load. Its shaft transfers that output to the driven mechanism, allowing the assembly to perform its intended function. The single-speed design provides operation at one designated speed.
PSC MOTOR OPERATING PRINCIPLE:
A permanent split capacitor (PSC) motor uses a capacitor with its auxiliary winding to create the phase relationship needed for motor operation. This arrangement generates the electromagnetic interaction that produces torque and turns the rotor. The resulting shaft output is transferred to the connected load while the capacitor remains part of the operating circuit.
MOTOR PERFORMANCE AND ELECTRICAL OPERATION:
The Trane MOT18686 has a rated output of 1/6 HP and a listed speed of 825 RPM. It operates on a 460V, single-phase supply. Its 48-frame designation identifies the motor's standardized frame size, while the 1-speed designation indicates operation at one designated speed.
REPLACEMENT GUIDELINES:
Replacement may be appropriate when the Trane PSC Motor can no longer deliver consistent output to its connected load. It may also be appropriate when a confirmed motor fault causes unreliable operation during the equipment cycle. Before ordering, compare the existing motor's part number MOT18686 and applicable equipment requirements with the replacement requirements.
COMMON FAILURE SYMPTOMS:
EQUIPMENT COMPATIBILITY:
The Trane MOT18686 should be matched to equipment that specifically requires this PSC motor configuration. Confirm that the applicable equipment information identifies MOT18686 and supports its 1/6 HP, 825 RPM, 460V, 1-phase, 1-speed, and 48-frame requirements before replacement.
TECHNICAL SPECIFICATIONS:
Part Identification:
Brand: Trane
Part Number: MOT18686
Product Type: 1-Speed PSC Motor
Electrical Specifications:
Voltage: 460V
Phase: 1-Phase
Mechanical Specifications:
Horsepower: 1/6 HP
Speed: 825 RPM
Speed Configuration: 1-Speed
Frame: 48
