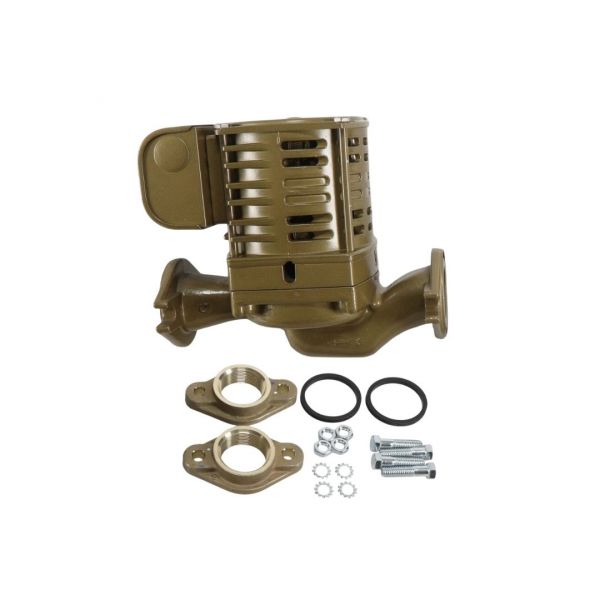

main product photo

Lochinvar & A.O. Smith 100133613 1/6HP Pump W/Flanges 120V 1PH

Be the first to review this product
Special Price $1,442.21 Regular Price $1,600.86
In stock
SKU
100133613
The Lochinvar & A.O. Smith 100133613 is a 1/6 horsepower pump with flanges for 120 volt, single phase use. It effectively pumps water in HVAC systems such as boilers and water heaters. Stable, effective motor of the pump is applied to maintain the flow of water to control temperature and effective functionality of the system. It has flanged design to facilitate its installation and also for easy maintenance. It is employed in residential and commercial heating systems to improve system performance through smooth water flow leading to minimized energy use and equipment durability.
Add to Wish List
HVAC Controls & Electrical, Pumps
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/100133613.jpg

Specifications

  • Type: Pump
  • Horsepower: 1/6HP
  • Voltage: 120V
  • Phase: 1PH
  • Size: 1-1/2"
  • Connection Type: Flanged
  • Material: Bronze
  • Frequency: 60Hz
Manufacturer Name: Lochinvar & A.O. Smith
Product Number: 100133613
OEM Part Number: 100133613
Product Description: 1/6Hp 120V 1Ph Pump W/Flanges
Weight:17.2lbs/7801.78g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100133613 1/6HP Pump W/Flanges 120V 1PH
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100133613 Pump With Flanges?

Inspect the pump regularly for leaks, corrosion, and loose flange connections. Clean debris buildup and ensure proper electrical connections for stable operation. Regular maintenance prevents overheating and improves efficiency.

What are common issues with the Lochinvar & A.O. Smith 100133613 Pump With Flanges?

  • Pump noise or vibration due to worn bearings or imbalance.
  • Reduced flow from clogging or impeller wear.
  • Electrical failure or intermittent operation from wiring or capacitor issues.
  • Leakage at flanges or seals under pressure.

Installation Steps

Step 1: Turn off electrical power, isolate plumbing lines, and fully drain the system before installation.

Step 2: Position the pump on a stable, level surface aligned with the piping connections.

Step 3: Install the flanged connections with new gaskets and tighten bolts evenly to prevent leaks.

Step 4: Connect wiring according to the manufacturer’s diagram and verify proper grounding.

Step 5: Prime the pump, inspect all fittings for leaks, and confirm secure connections.

Step 6: Restore power and test the pump for correct flow, pressure, and smooth operation.
