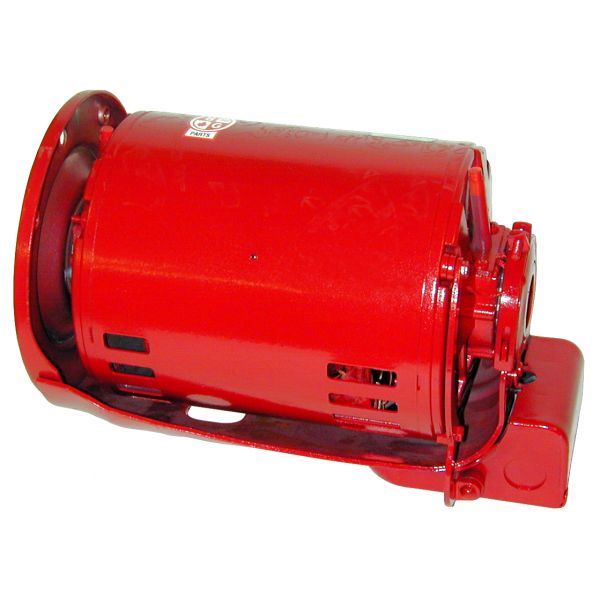

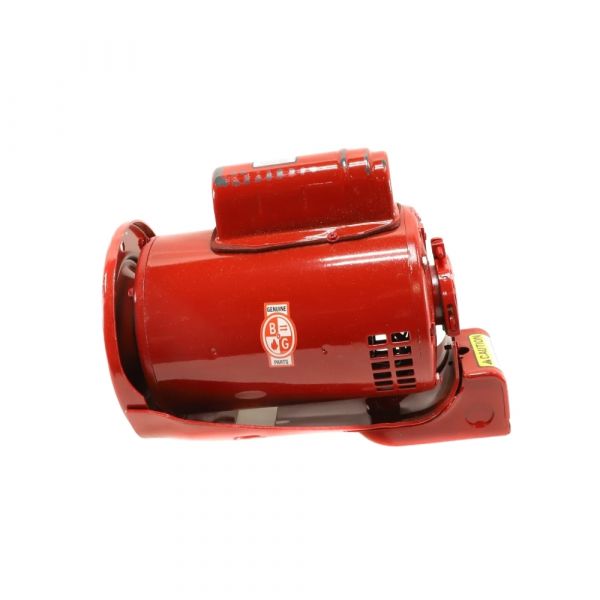

The Bell & Gossett 169230 is a single-phase, 3/4 horsepower motor specifically designed for centrifugal pumps in hydronic heating and cooling systems. Unlike air conditioners that cool air, hydronic systems circulate heated or chilled water throughout a building to regulate temperature. The 169230 motor directly powers the pump impeller, creating the force necessary to circulate water within the closed-loop system. This water flow carries heat away from the boiler in heating mode or transfers heat from a chiller to the building in cooling mode. Here are some key specifications of the Bell & Gossett 169230 motor: Voltage/Electrical: 115/208-230 volts (single-phase) offers compatibility with various residential and light commercial electrical systems. Horsepower (HP): 3/4 horsepower delivers enough power to circulate water effectively in most mid-sized homes or small commercial buildings. RPM (Revolutions Per Minute): 1725 RPM ensures sufficient water flow for efficient heat transfer. Frequency: 60 Hz matches the standard electrical grid frequency in North America. Weight: 27.73 pounds makes it suitable for handling during installation or maintenance. By powering the pump, the Bell & Gossett 169230 motor plays a critical role in maintaining comfortable indoor temperatures. This translates to benefits like consistent heating or cooling throughout your building and potentially lower energy consumption due to efficient water circulation.
The Xylem-Bell & Gossett 115/208-230V 3/4Hp 1725Rpm 169230 motor delivers robust performance for various industrial and commercial applications. This versatile single-phase motor, boasting a 0.75 horsepower output at 1725 revolutions per minute, tackles demanding tasks where power and reliability are crucial. From driving pumps and fans to powering mixers and conveyors, this motor is a trusted workhorse for diverse needs.
Key features:
Multi-voltage compatibility: Operates seamlessly on single-phase power at 115 volts, 208 volts, or 230 volts, offering flexibility for various electrical configurations.
Powerful performance: Delivers a robust 3/4 horsepower output, ideal for driving equipment requiring significant torque and speed.
Durable construction: The durable cast iron body and corrosion-resistant components are designed to survive harsh situations.
Quiet operation: Minimizes noise generation, creating a more comfortable work environment.
Ball bearings: Ensures smooth operation and reduces maintenance requirements.
Automatic thermal overload protection: Protects the motor from damage by shutting down immediately in the event of overheating.
Signs of a Faulty 169230 Xylem-Bell & Gossett 115/208-230V1Ph 3/4Hp 1725Rpm:
Unusual noises: Grinding, squealing, or humming sounds not present before can indicate worn bearings, misalignment, or internal damage.
Excessive vibration: More than usual vibration can be caused by the imbalanced rotor, loose mountings, or worn bearings.
Slow or not starting: The motor failing to start or running slowly could be due to power supply issues, starting component problems, or internal motor issues.
Insufficient torque: The motor struggles to turn connected equipment, indicating mechanical issues (worn bearings, damaged rotor) or electrical problems (winding faults).
Tripped circuit breaker: If the motor trips the breaker repeatedly, it could be due to a short circuit within the motor or an overload on the circuit.
