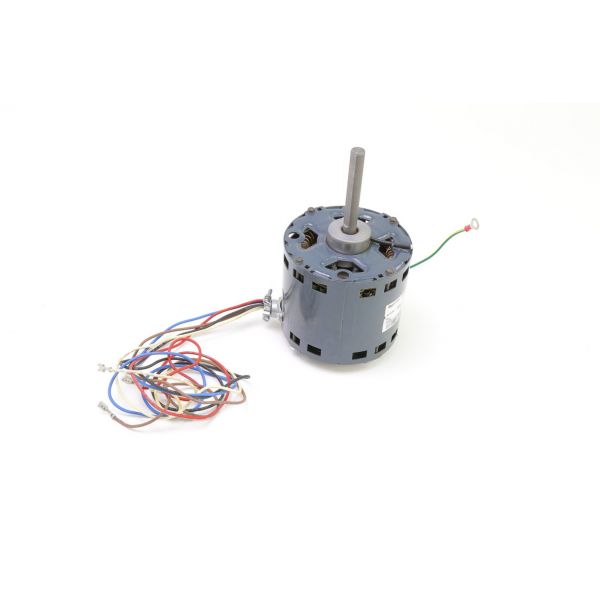

Carrier HC37SA651 1-Phase Blower Motor 2-Speed 1/5 HP 230 V 1075 RPM CW
Special Price $236.16 Regular Price $262.14
Out of stock
SKU
HC37SA651
The Carrier HC37SA651 is a single-phase blower motor with 1/5 horsepower for usage in HVAC equipment only. This motor has two speeds probably with a high, low, and offsetting with a maximum speed of 1075 RPM in a clockwise direction. Items such as this blower motor help guarantees constant circulation of warm or cool air via the ductwork from the furnace or air conditioner to the rest of your house. The permanent split capacitor design means that it will always be running. This motor plays an essentialrole in climate control within your home by effectively moving air.
Manufacturer:
Specifications
- Length: 5.2 "
- Width: 5.2 "
- Height: 8.9 "
- Weight:12.82 lbs
- Capacitance: 5 µF
- Bearing Type: Sleeve
- Frequency: 50/60 Hz
- Duty: Continuous (S1)
- Full Load Current: 1.8 A
- Motor: 1/5 HP
- Motor Type: PSC (Permanent Split Capacitor)
- NEMA Frame: 42
- Number of Speeds: 3 (Three)
- Phase: Single
- Speed: 1075RPM
- Rotation: Clockwise (CW)
- Shaft Diameter:1/2 "
- Shaft Length: 4.7 "
- Voltage: 230 VAC
