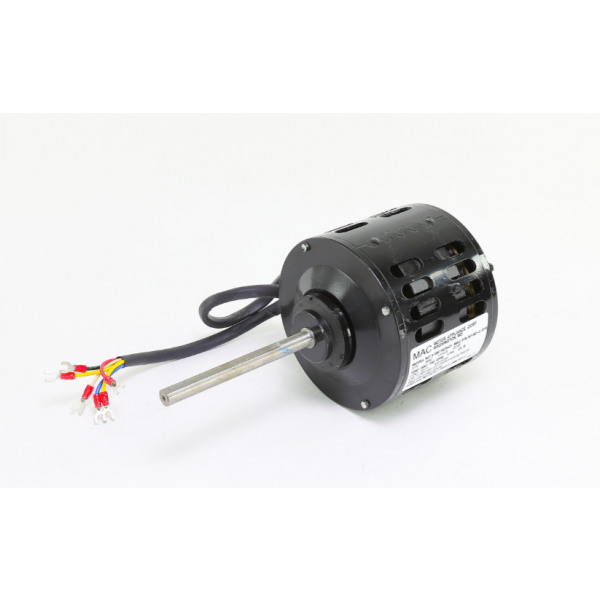

Trane MOT6805 PSC Motor 1/3HP 277V 3-Speed CW
Special Price $1,976.61 Regular Price $2,194.04
In stock
SKU
MOT6805
The Trane MOT6805 PSC Motor is a robust motor that is meant to transport air within Trane HVAC systems. A portable motor has a sleeve bearing that makes it easy to operate. This PSC (Permanent Split Capacitor) motor uses 277V and has three speeds for the change of airflow depending on cooling or heating. It rotates either in a CW (clockwise) direction and has a shaft diameter of ½ inch to join with the drive belts or pulleys in the system. 6” shaft length and 5.25” body length provide the correct size for installation in specified Trane equipment.
Manufacturer:
Specifications
- Voltage: 277V
- Bearing Type: Sleeve
- Frequency: 60 Hz
- Mounting Type: Belly B and
- Rotation: CW
- Shaft Length: 6"
- Body Length: 5.25"
- Enclosure Type: ODP
- Frame Size: 48
- Number of Speeds: 3
- Shaft Diameter: 0.5"
- Speed: 1200 RPM
- Wire Length: 21"
- Weight: 18.16lbs
- Horsepower: 1/3 HP
