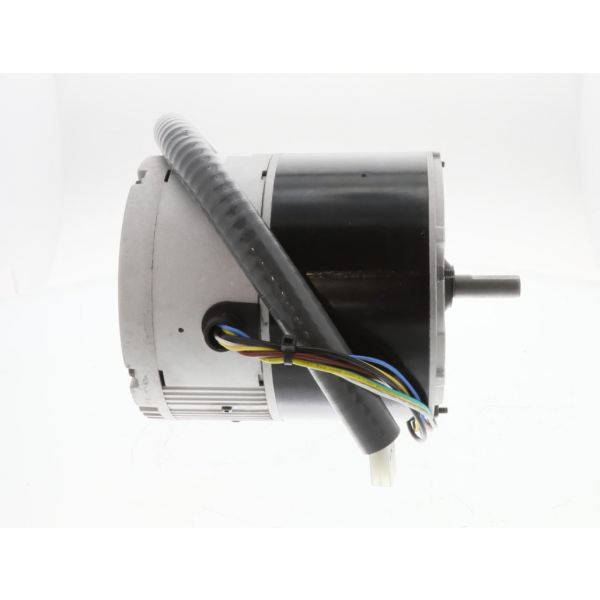

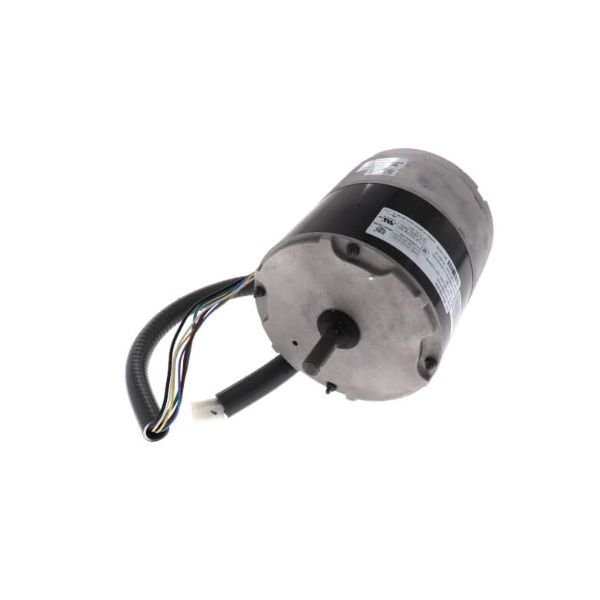

Trane MOT18698 1/3 HP ECM Outdoor Motor & Module 230V

Be the first to review this product
Special Price $723.52 Regular Price $803.10
In stock
SKU
MOT18698

The Trane MOT18698 is an electronically commutated motor (ECM) with an integrated module designed for Trane HVAC equipment. Unlike conventional AC motors, ECM motors use permanent magnets and vary the motor speed by electronically controlling the DC. This design offers several advantages, including improved efficiency, quieter operation, and better speed control. The Trane MOT18698 is rated for 1/3 horsepower at a lower RPM of 850 compared to some other Trane motors. It operates on a 230V, 60Hz power supply and weighs approximately 11.69 pounds. Due to its efficient operation and variable speed control, the Trane MOT18698 can potentially improve comfort and energy savings in various Trane HVAC applications. By precisely matching airflow to heating or cooling needs, the ECM motor can reduce energy consumption and create a more consistent temperature throughout your space. Additionally, the lower RPMs can translate to quieter operation of your HVAC system.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/m/o/mot18698.jpg

Specifications

  • Voltage/Electrical: 230V
  • RPM (Revolutions Per Minute): 850 RPM
  • Horsepower(HP): 1/3Hp
  • Frequency: 60Hz
  • Weight: 11.69lbs

Outdoor fan assemblies use motor-driven rotation to move air through the outdoor section of HVAC equipment. The Trane MOT18698 is an ECM Outdoor Motor & Module designed to provide the mechanical drive and electronic control required by its associated fan assembly. Its integrated configuration combines the motor and module into one assembly.

ECM Motor Operation and Electronic Control:
An ECM Motor uses electronic circuitry to manage motor operation and produce mechanical rotation. The integrated module works with the motor to support its operation according to the design of the connected equipment. The specific control functions depend on the assembly's intended application.

Outdoor Fan Drive and Airflow:
The motor supplies rotational movement to the connected outdoor fan, allowing it to move air through the outdoor section. This airflow supports heat transfer across the outdoor coil during the equipment's operating cycle. The motor and module must function correctly for the fan assembly to perform as intended.

Replacement Guidelines:
Replacement may be appropriate when a confirmed motor or module fault prevents the Trane MOT18698 assembly from providing the required fan operation. Inspect the motor, module, and connected fan assembly to identify the cause of the problem before deciding whether replacement is necessary.

Common Failure Symptoms:

  • Motor fails to start
  • Intermittent outdoor fan operation
  • Irregular shaft rotation
  • Unusual motor or module noise
  • Motor or module becomes unusually hot

Equipment Compatibility:
The Trane MOT18698 ECM Outdoor Motor and Module is provided for compatibility checking with equipment models 4A6H5060N1000AA, 4TWR4048N1000AA, and 4TWX6042H1000BC. Verify the specific equipment model and required motor-and-module configuration against the applicable equipment parts documentation before ordering.

Technical Specifications:
Product Identification:
Brand: Trane
Part Number: MOT18698
Product Type: ECM Outdoor Motor & Module

Electrical:
Voltage: 230V

Mechanical:
Horsepower: 1/3 HP

Reviews
Write Your Own Review
You're reviewing:Trane MOT18698 1/3 HP ECM Outdoor Motor & Module 230V
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Trane MOT18698 Motor & Module?

Regularly inspect the motor and module for dust, debris, and loose electrical connections. Clean cooling fins and ensure proper ventilation for efficient operation. Proper maintenance prevents overheating and ensures reliable performance. Always disconnect power before servicing to stay safe.

What are common issues with the Trane MOT18698 Motor & Module?

  • Motor failing to start.
  • Intermittent operation or shutdowns.
  • Excessive vibration or noise.
  • Electrical connection faults.
  • Reduced airflow or efficiency.

What is the Trane MOT18698 ECM Outdoor Motor & Module?

The Trane MOT18698 is a combined ECM outdoor motor and electronic module assembly that provides the rotational drive and electronic control required by its connected fan.

How does the integrated module support motor operation?

The electronic module works with the motor to manage its operation. Its specific control functions depend on the design and requirements of the equipment in which the assembly is installed.

Can the motor be replaced separately from the module?

The supplied product information identifies the MOT18698 as a motor-and-module assembly but does not establish whether separate replacement is supported. Check the applicable service documentation before ordering individual components.

Which equipment models should be checked for compatibility with the MOT18698?

The supplied equipment model references are 4A6H5060N1000AA, 4TWR4048N1000AA, and 4TWX6042H1000BC. Confirm the specified replacement part for the exact equipment model before purchasing.

What should be checked if the outdoor fan stops operating?

Check the electrical supply, motor-and-module operation, and connected fan assembly to identify the cause. A fan that stops operating does not necessarily indicate that the entire motor-and-module assembly has failed.

Installation Steps

Step 1: Turn off and lock out power to prevent electrical hazards.

Step 2: Remove the old outdoor motor and module and label all wiring connections.

Step 3: Mount the new ECM motor and module securely in the condenser assembly.

Step 4: Attach the fan blade and ensure proper alignment on the shaft.

Step 5: Connect wiring according to the diagram.

Step 6: Restore power and test for correct rotation, smooth operation, and safe performance.
